Representation of STEP entity ComplexTriangulatedSurfaceSet. More...

#include <StepVisual_ComplexTriangulatedSurfaceSet.hxx>

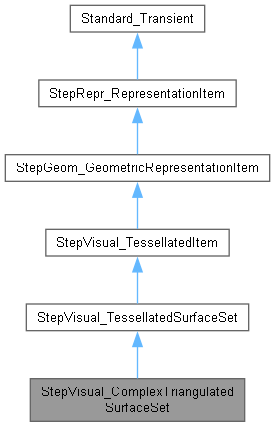

Inheritance diagram for StepVisual_ComplexTriangulatedSurfaceSet:

[legend]

Public Member Functions
	StepVisual_ComplexTriangulatedSurfaceSet ()
	default constructor

void	Init (const Handle< TCollection_HAsciiString > &theRepresentationItem_Name, const Handle< StepVisual_CoordinatesList > &theTessellatedSurfaceSet_Coordinates, const Standard_Integer theTessellatedSurfaceSet_Pnmax, const Handle< TColStd_HArray2OfReal > &theTessellatedSurfaceSet_Normals, const Handle< TColStd_HArray1OfInteger > &thePnindex, const Handle< TColStd_HArray1OfTransient > &theTriangleStrips, const Handle< TColStd_HArray1OfTransient > &theTriangleFans)
	Initialize all fields (own and inherited)

Handle< TColStd_HArray1OfInteger >	Pnindex () const
	Returns field Pnindex.

void	SetPnindex (const Handle< TColStd_HArray1OfInteger > &thePnindex)
	Sets field Pnindex.

Standard_Integer	NbPnindex () const
	Returns number of Pnindex.

Standard_Integer	PnindexValue (const Standard_Integer theNum) const
	Returns value of Pnindex by its num.

Handle< TColStd_HArray1OfTransient >	TriangleStrips () const
	Returns field TriangleStrips.

void	SetTriangleStrips (const Handle< TColStd_HArray1OfTransient > &theTriangleStrips)
	Sets field TriangleStrips.

Standard_Integer	NbTriangleStrips () const
	Returns number of TriangleStrips.

Handle< TColStd_HArray1OfTransient >	TriangleFans () const
	Returns field TriangleFans.

void	SetTriangleFans (const Handle< TColStd_HArray1OfTransient > &theTriangleFans)
	Sets field TriangleFans.

Standard_Integer	NbTriangleFans () const
	Returns number of TriangleFans.

Public Member Functions inherited from StepVisual_TessellatedSurfaceSet
	StepVisual_TessellatedSurfaceSet ()
	default constructor

void	Init (const Handle< TCollection_HAsciiString > &theRepresentationItem_Name, const Handle< StepVisual_CoordinatesList > &theCoordinates, const Standard_Integer thePnmax, const Handle< TColStd_HArray2OfReal > &theNormals)
	Initialize all fields (own and inherited)

Handle< StepVisual_CoordinatesList >	Coordinates () const
	Returns field Coordinates.

void	SetCoordinates (const Handle< StepVisual_CoordinatesList > &theCoordinates)
	Sets field Coordinates.

Standard_Integer	Pnmax () const
	Returns field Pnmax.

void	SetPnmax (const Standard_Integer thePnmax)
	Sets field Pnmax.

Handle< TColStd_HArray2OfReal >	Normals () const
	Returns field Normals.

void	SetNormals (const Handle< TColStd_HArray2OfReal > &theNormals)
	Sets field Normals.

Standard_Integer	NbNormals () const
	Returns number of Normals.

Public Member Functions inherited from StepVisual_TessellatedItem
	StepVisual_TessellatedItem ()
	Returns a DraughtingCalloutElement select type.

Public Member Functions inherited from StepGeom_GeometricRepresentationItem
	StepGeom_GeometricRepresentationItem ()
	Returns a GeometricRepresentationItem.

Public Member Functions inherited from StepRepr_RepresentationItem
	StepRepr_RepresentationItem ()
	Returns a RepresentationItem.

void	Init (const Handle< TCollection_HAsciiString > &aName)

void	SetName (const Handle< TCollection_HAsciiString > &aName)

Handle< TCollection_HAsciiString >	Name () const

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.

Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.

Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.

virtual void	Delete () const
	Memory deallocator for transient classes.

Data Fields
DEFINE_STANDARD_RTTIEXT(StepVisual_ComplexTriangulatedSurfaceSet, StepVisual_TessellatedSurfaceSet) private Handle< TColStd_HArray1OfTransient >	myTriangleStrips

Handle< TColStd_HArray1OfTransient >	myTriangleFans

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.

static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Representation of STEP entity ComplexTriangulatedSurfaceSet.

Constructor & Destructor Documentation

◆ StepVisual_ComplexTriangulatedSurfaceSet()

StepVisual_ComplexTriangulatedSurfaceSet::StepVisual_ComplexTriangulatedSurfaceSet ( )

default constructor

Member Function Documentation

◆ Init()

void StepVisual_ComplexTriangulatedSurfaceSet::Init	(	const Handle< TCollection_HAsciiString > &	theRepresentationItem_Name,
		const Handle< StepVisual_CoordinatesList > &	theTessellatedSurfaceSet_Coordinates,
		const Standard_Integer	theTessellatedSurfaceSet_Pnmax,
		const Handle< TColStd_HArray2OfReal > &	theTessellatedSurfaceSet_Normals,
		const Handle< TColStd_HArray1OfInteger > &	thePnindex,
		const Handle< TColStd_HArray1OfTransient > &	theTriangleStrips,
		const Handle< TColStd_HArray1OfTransient > &	theTriangleFans )

Initialize all fields (own and inherited)

◆ NbPnindex()

Standard_Integer StepVisual_ComplexTriangulatedSurfaceSet::NbPnindex ( ) const

Returns number of Pnindex.

◆ NbTriangleFans()

Standard_Integer StepVisual_ComplexTriangulatedSurfaceSet::NbTriangleFans ( ) const

Returns number of TriangleFans.

◆ NbTriangleStrips()

Standard_Integer StepVisual_ComplexTriangulatedSurfaceSet::NbTriangleStrips ( ) const

Returns number of TriangleStrips.

◆ Pnindex()

Handle< TColStd_HArray1OfInteger > StepVisual_ComplexTriangulatedSurfaceSet::Pnindex ( ) const

Returns field Pnindex.

◆ PnindexValue()

Standard_Integer StepVisual_ComplexTriangulatedSurfaceSet::PnindexValue ( const Standard_Integer theNum ) const

Returns value of Pnindex by its num.

◆ SetPnindex()

void StepVisual_ComplexTriangulatedSurfaceSet::SetPnindex ( const Handle< TColStd_HArray1OfInteger > & thePnindex )

Sets field Pnindex.

◆ SetTriangleFans()

void StepVisual_ComplexTriangulatedSurfaceSet::SetTriangleFans ( const Handle< TColStd_HArray1OfTransient > & theTriangleFans )

Sets field TriangleFans.

◆ SetTriangleStrips()

void StepVisual_ComplexTriangulatedSurfaceSet::SetTriangleStrips ( const Handle< TColStd_HArray1OfTransient > & theTriangleStrips )

Sets field TriangleStrips.

◆ TriangleFans()

Handle< TColStd_HArray1OfTransient > StepVisual_ComplexTriangulatedSurfaceSet::TriangleFans ( ) const

Returns field TriangleFans.

◆ TriangleStrips()

Handle< TColStd_HArray1OfTransient > StepVisual_ComplexTriangulatedSurfaceSet::TriangleStrips ( ) const

Returns field TriangleStrips.

Field Documentation

◆ myTriangleFans

Handle< TColStd_HArray1OfTransient > StepVisual_ComplexTriangulatedSurfaceSet::myTriangleFans

◆ myTriangleStrips

DEFINE_STANDARD_RTTIEXT (StepVisual_ComplexTriangulatedSurfaceSet, StepVisual_TessellatedSurfaceSet) private Handle< TColStd_HArray1OfTransient > StepVisual_ComplexTriangulatedSurfaceSet::myTriangleStrips

The documentation for this class was generated from the following file:

StepVisual_ComplexTriangulatedSurfaceSet.hxx
