Defines geometric modifications to a shape, i.e. changes to faces, edges and vertices. More...

#include <BRepTools_Modification.hxx>

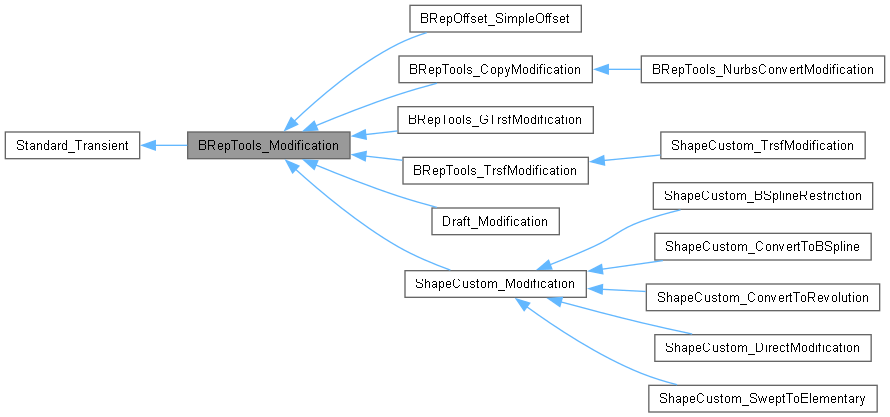

Inheritance diagram for BRepTools_Modification:

[legend]

Public Member Functions
virtual bool	NewSurface (const TopoDS_Face &F, occ::handle< Geom_Surface > &S, TopLoc_Location &L, double &Tol, bool &RevWires, bool &RevFace)=0
	Returns true if the face, F, has been modified. If the face has been modified:

virtual bool	NewTriangulation (const TopoDS_Face &F, occ::handle< Poly_Triangulation > &T)
	Returns true if the face has been modified according to changed triangulation. If the face has been modified:

virtual bool	NewCurve (const TopoDS_Edge &E, occ::handle< Geom_Curve > &C, TopLoc_Location &L, double &Tol)=0
	Returns true if the edge, E, has been modified. If the edge has been modified:

virtual bool	NewPolygon (const TopoDS_Edge &E, occ::handle< Poly_Polygon3D > &P)
	Returns true if the edge has been modified according to changed polygon. If the edge has been modified:

virtual bool	NewPolygonOnTriangulation (const TopoDS_Edge &E, const TopoDS_Face &F, occ::handle< Poly_PolygonOnTriangulation > &P)
	Returns true if the edge has been modified according to changed polygon on triangulation. If the edge has been modified:

virtual bool	NewPoint (const TopoDS_Vertex &V, gp_Pnt &P, double &Tol)=0
	Returns true if the vertex V has been modified. If V has been modified:

virtual bool	NewCurve2d (const TopoDS_Edge &E, const TopoDS_Face &F, const TopoDS_Edge &NewE, const TopoDS_Face &NewF, occ::handle< Geom2d_Curve > &C, double &Tol)=0
	Returns true if the edge, E, has a new curve on surface on the face, F. If a new curve exists:

virtual bool	NewParameter (const TopoDS_Vertex &V, const TopoDS_Edge &E, double &P, double &Tol)=0
	Returns true if the vertex V has a new parameter on the edge E. If a new parameter exists:

virtual GeomAbs_Shape	Continuity (const TopoDS_Edge &E, const TopoDS_Face &F1, const TopoDS_Face &F2, const TopoDS_Edge &NewE, const TopoDS_Face &NewF1, const TopoDS_Face &NewF2)=0
	Returns the continuity of <NewE> between <NewF1> and <NewF2>. <NewE> is the new edge created from <E>. <NewF1> (resp. <NewF2>) is the new face created from <F1> (resp. <F2>).

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()=default
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.

bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

int	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.

int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.

virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Defines geometric modifications to a shape, i.e. changes to faces, edges and vertices.

Member Function Documentation

◆ Continuity()

virtual GeomAbs_Shape BRepTools_Modification::Continuity	(	const TopoDS_Edge &	E,
		const TopoDS_Face &	F1,
		const TopoDS_Face &	F2,
		const TopoDS_Edge &	NewE,
		const TopoDS_Face &	NewF1,
		const TopoDS_Face &	NewF2 )

pure virtual

Returns the continuity of <NewE> between <NewF1> and <NewF2>. <NewE> is the new edge created from <E>. <NewF1> (resp. <NewF2>) is the new face created from <F1> (resp. <F2>).

Implemented in BRepOffset_SimpleOffset, Draft_Modification, ShapeCustom_BSplineRestriction, ShapeCustom_ConvertToBSpline, ShapeCustom_ConvertToRevolution, ShapeCustom_DirectModification, ShapeCustom_SweptToElementary, BRepTools_GTrsfModification, BRepTools_NurbsConvertModification, BRepTools_TrsfModification, and BRepTools_CopyModification.

◆ NewCurve()

virtual bool BRepTools_Modification::NewCurve	(	const TopoDS_Edge &	E,
		occ::handle< Geom_Curve > &	C,
		TopLoc_Location &	L,
		double &	Tol )

pure virtual

Returns true if the edge, E, has been modified. If the edge has been modified:

C is the new geometry associated with the edge,
L is its new location, and
Tol is the new tolerance. If the edge has not been modified, this function returns false, and the values of C, L and Tol are not significant.

Implemented in BRepOffset_SimpleOffset, Draft_Modification, ShapeCustom_BSplineRestriction, ShapeCustom_ConvertToBSpline, ShapeCustom_ConvertToRevolution, ShapeCustom_DirectModification, ShapeCustom_SweptToElementary, ShapeCustom_TrsfModification, BRepTools_GTrsfModification, BRepTools_NurbsConvertModification, BRepTools_TrsfModification, and BRepTools_CopyModification.

◆ NewCurve2d()

virtual bool BRepTools_Modification::NewCurve2d	(	const TopoDS_Edge &	E,
		const TopoDS_Face &	F,
		const TopoDS_Edge &	NewE,
		const TopoDS_Face &	NewF,
		occ::handle< Geom2d_Curve > &	C,
		double &	Tol )

pure virtual

Returns true if the edge, E, has a new curve on surface on the face, F. If a new curve exists:

C is the new geometry of the edge,
L is the new location, and
Tol is the new tolerance. NewE is the new edge created from E, and NewF is the new face created from F. If there is no new curve on the face, this function returns false, and the values of C, L and Tol are not significant.

Implemented in BRepOffset_SimpleOffset, Draft_Modification, ShapeCustom_BSplineRestriction, ShapeCustom_ConvertToBSpline, ShapeCustom_ConvertToRevolution, ShapeCustom_DirectModification, ShapeCustom_SweptToElementary, ShapeCustom_TrsfModification, BRepTools_GTrsfModification, BRepTools_NurbsConvertModification, BRepTools_TrsfModification, and BRepTools_CopyModification.

◆ NewParameter()

virtual bool BRepTools_Modification::NewParameter	(	const TopoDS_Vertex &	V,
		const TopoDS_Edge &	E,
		double &	P,
		double &	Tol )

pure virtual

Returns true if the vertex V has a new parameter on the edge E. If a new parameter exists:

P is the parameter, and
Tol is the new tolerance. If there is no new parameter this function returns false, and the values of P and Tol are not significant.

Implemented in BRepTools_CopyModification, BRepOffset_SimpleOffset, Draft_Modification, ShapeCustom_BSplineRestriction, ShapeCustom_ConvertToBSpline, ShapeCustom_ConvertToRevolution, ShapeCustom_DirectModification, ShapeCustom_SweptToElementary, ShapeCustom_TrsfModification, BRepTools_GTrsfModification, BRepTools_NurbsConvertModification, and BRepTools_TrsfModification.

◆ NewPoint()

virtual bool BRepTools_Modification::NewPoint	(	const TopoDS_Vertex &	V,
		gp_Pnt &	P,
		double &	Tol )

pure virtual

Returns true if the vertex V has been modified. If V has been modified:

P is the new geometry of the vertex, and
Tol is the new tolerance. If the vertex has not been modified this function returns false, and the values of P and Tol are not significant.

Implemented in BRepTools_CopyModification, BRepOffset_SimpleOffset, Draft_Modification, ShapeCustom_BSplineRestriction, ShapeCustom_ConvertToBSpline, ShapeCustom_ConvertToRevolution, ShapeCustom_DirectModification, ShapeCustom_SweptToElementary, ShapeCustom_TrsfModification, BRepTools_GTrsfModification, BRepTools_NurbsConvertModification, and BRepTools_TrsfModification.

◆ NewPolygon()

virtual bool BRepTools_Modification::NewPolygon	(	const TopoDS_Edge &	E,
		occ::handle< Poly_Polygon3D > &	P )

virtual

Returns true if the edge has been modified according to changed polygon. If the edge has been modified:

P is a new polygon

Reimplemented in BRepTools_TrsfModification, BRepTools_CopyModification, BRepTools_GTrsfModification, and BRepTools_NurbsConvertModification.

◆ NewPolygonOnTriangulation()

virtual bool BRepTools_Modification::NewPolygonOnTriangulation	(	const TopoDS_Edge &	E,
		const TopoDS_Face &	F,
		occ::handle< Poly_PolygonOnTriangulation > &	P )

virtual

Returns true if the edge has been modified according to changed polygon on triangulation. If the edge has been modified:

P is a new polygon on triangulation

Reimplemented in BRepTools_TrsfModification, BRepTools_CopyModification, BRepTools_GTrsfModification, and BRepTools_NurbsConvertModification.

◆ NewSurface()

virtual bool BRepTools_Modification::NewSurface	(	const TopoDS_Face &	F,
		occ::handle< Geom_Surface > &	S,
		TopLoc_Location &	L,
		double &	Tol,
		bool &	RevWires,
		bool &	RevFace )

pure virtual

Returns true if the face, F, has been modified. If the face has been modified:

S is the new geometry of the face,
L is its new location, and
Tol is the new tolerance. The flag, RevWires, is set to true when the modification reverses the normal of the surface, (i.e. the wires have to be reversed). The flag, RevFace, is set to true if the orientation of the modified face changes in the shells which contain it. If the face has not been modified this function returns false, and the values of S, L, Tol, RevWires and RevFace are not significant.

Implemented in BRepOffset_SimpleOffset, Draft_Modification, ShapeCustom_BSplineRestriction, ShapeCustom_ConvertToBSpline, ShapeCustom_ConvertToRevolution, ShapeCustom_DirectModification, ShapeCustom_SweptToElementary, ShapeCustom_TrsfModification, BRepTools_GTrsfModification, BRepTools_NurbsConvertModification, BRepTools_TrsfModification, and BRepTools_CopyModification.

◆ NewTriangulation()

virtual bool BRepTools_Modification::NewTriangulation	(	const TopoDS_Face &	F,
		occ::handle< Poly_Triangulation > &	T )

virtual

Returns true if the face has been modified according to changed triangulation. If the face has been modified:

T is a new triangulation on the face

Reimplemented in BRepTools_TrsfModification, BRepTools_CopyModification, BRepTools_GTrsfModification, and BRepTools_NurbsConvertModification.

The documentation for this class was generated from the following file:

BRepTools_Modification.hxx
