To define Trihedron along one Curve. More...

#include <GeomFill_TrihedronLaw.hxx>

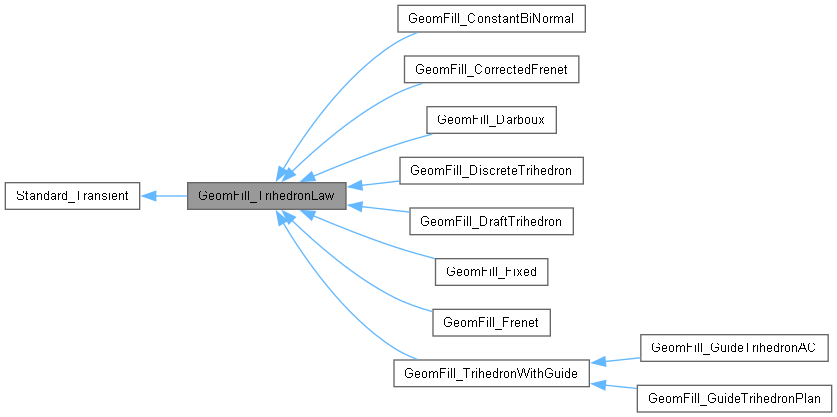

Inheritance diagram for GeomFill_TrihedronLaw:

[legend]

Public Member Functions
virtual bool	SetCurve (const occ::handle< Adaptor3d_Curve > &C)
	initialize curve of trihedron law

virtual occ::handle< GeomFill_TrihedronLaw >	Copy () const =0

virtual GeomFill_PipeError	ErrorStatus () const
	Give a status to the Law Returns PipeOk (default implementation)

virtual bool	D0 (const double Param, gp_Vec &Tangent, gp_Vec &Normal, gp_Vec &BiNormal)=0
	compute Triedrhon on curve at parameter

virtual bool	D1 (const double Param, gp_Vec &Tangent, gp_Vec &DTangent, gp_Vec &Normal, gp_Vec &DNormal, gp_Vec &BiNormal, gp_Vec &DBiNormal)
	compute Triedrhon and derivative Trihedron on curve at parameter Warning : It used only for C1 or C2 approximation

virtual bool	D2 (const double Param, gp_Vec &Tangent, gp_Vec &DTangent, gp_Vec &D2Tangent, gp_Vec &Normal, gp_Vec &DNormal, gp_Vec &D2Normal, gp_Vec &BiNormal, gp_Vec &DBiNormal, gp_Vec &D2BiNormal)
	compute Trihedron on curve first and second derivatives. Warning : It used only for C2 approximation

virtual int	NbIntervals (const GeomAbs_Shape S) const =0
	Returns the number of intervals for continuity ~~. May be one if Continuity(me) >=~~

virtual void	Intervals (NCollection_Array1< double > &T, const GeomAbs_Shape S) const =0
	Stores in <T> the parameters bounding the intervals of continuity .

virtual void	SetInterval (const double First, const double Last)
	Sets the bounds of the parametric interval on the function This determines the derivatives in these values if the function is not Cn.

void	GetInterval (double &First, double &Last)
	Gets the bounds of the parametric interval on the function.

virtual void	GetAverageLaw (gp_Vec &ATangent, gp_Vec &ANormal, gp_Vec &ABiNormal)=0
	Get average value of M(t) and V(t) it is useful to make fast approximation of rational surfaces.

virtual bool	IsConstant () const
	Say if the law is Constant.

virtual bool	IsOnlyBy3dCurve () const
	Say if the law is defined, only by the 3d Geometry of the set Curve Return False by Default.

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()=default
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.

bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

int	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.

int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.

virtual void	Delete () const
	Memory deallocator for transient classes.

Protected Attributes
occ::handle< Adaptor3d_Curve >	myCurve

occ::handle< Adaptor3d_Curve >	myTrimmed

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

To define Trihedron along one Curve.

Member Function Documentation

◆ Copy()

virtual occ::handle< GeomFill_TrihedronLaw > GeomFill_TrihedronLaw::Copy ( ) const

pure virtual

Implemented in GeomFill_ConstantBiNormal, GeomFill_CorrectedFrenet, GeomFill_Darboux, GeomFill_DiscreteTrihedron, GeomFill_DraftTrihedron, GeomFill_Fixed, GeomFill_Frenet, GeomFill_GuideTrihedronAC, and GeomFill_GuideTrihedronPlan.

◆ D0()

virtual bool GeomFill_TrihedronLaw::D0	(	const double	Param,
		gp_Vec &	Tangent,
		gp_Vec &	Normal,
		gp_Vec &	BiNormal )

pure virtual

compute Triedrhon on curve at parameter

Implemented in GeomFill_ConstantBiNormal, GeomFill_CorrectedFrenet, GeomFill_Darboux, GeomFill_DiscreteTrihedron, GeomFill_DraftTrihedron, GeomFill_Fixed, GeomFill_Frenet, GeomFill_GuideTrihedronAC, and GeomFill_GuideTrihedronPlan.

◆ D1()

virtual bool GeomFill_TrihedronLaw::D1	(	const double	Param,
		gp_Vec &	Tangent,
		gp_Vec &	DTangent,
		gp_Vec &	Normal,
		gp_Vec &	DNormal,
		gp_Vec &	BiNormal,
		gp_Vec &	DBiNormal )

virtual

compute Triedrhon and derivative Trihedron on curve at parameter Warning : It used only for C1 or C2 approximation

Reimplemented in GeomFill_ConstantBiNormal, GeomFill_CorrectedFrenet, GeomFill_Darboux, GeomFill_DiscreteTrihedron, GeomFill_DraftTrihedron, GeomFill_Fixed, GeomFill_Frenet, GeomFill_GuideTrihedronAC, and GeomFill_GuideTrihedronPlan.

◆ D2()

virtual bool GeomFill_TrihedronLaw::D2	(	const double	Param,
		gp_Vec &	Tangent,
		gp_Vec &	DTangent,
		gp_Vec &	D2Tangent,
		gp_Vec &	Normal,
		gp_Vec &	DNormal,
		gp_Vec &	D2Normal,
		gp_Vec &	BiNormal,
		gp_Vec &	DBiNormal,
		gp_Vec &	D2BiNormal )

virtual

compute Trihedron on curve first and second derivatives. Warning : It used only for C2 approximation

Reimplemented in GeomFill_ConstantBiNormal, GeomFill_CorrectedFrenet, GeomFill_Darboux, GeomFill_DiscreteTrihedron, GeomFill_DraftTrihedron, GeomFill_Fixed, GeomFill_Frenet, GeomFill_GuideTrihedronAC, and GeomFill_GuideTrihedronPlan.

◆ ErrorStatus()

virtual GeomFill_PipeError GeomFill_TrihedronLaw::ErrorStatus ( ) const

virtual

Give a status to the Law Returns PipeOk (default implementation)

Reimplemented in GeomFill_GuideTrihedronPlan.

◆ GetAverageLaw()

virtual void GeomFill_TrihedronLaw::GetAverageLaw	(	gp_Vec &	ATangent,
		gp_Vec &	ANormal,
		gp_Vec &	ABiNormal )

pure virtual

Get average value of M(t) and V(t) it is useful to make fast approximation of rational surfaces.

Implemented in GeomFill_ConstantBiNormal, GeomFill_CorrectedFrenet, GeomFill_Darboux, GeomFill_DiscreteTrihedron, GeomFill_DraftTrihedron, GeomFill_Fixed, GeomFill_Frenet, GeomFill_GuideTrihedronAC, and GeomFill_GuideTrihedronPlan.

◆ GetInterval()

void GeomFill_TrihedronLaw::GetInterval	(	double &	First,
		double &	Last )

Gets the bounds of the parametric interval on the function.

◆ Intervals()

virtual void GeomFill_TrihedronLaw::Intervals	(	NCollection_Array1< double > &	T,
		const GeomAbs_Shape	S ) const

pure virtual

Stores in <T> the parameters bounding the intervals of continuity .

The array must provide enough room to accommodate for the parameters. i.e. T.Length() > NbIntervals()

Implemented in GeomFill_ConstantBiNormal, GeomFill_CorrectedFrenet, GeomFill_Darboux, GeomFill_DiscreteTrihedron, GeomFill_DraftTrihedron, GeomFill_Fixed, GeomFill_Frenet, GeomFill_GuideTrihedronAC, and GeomFill_GuideTrihedronPlan.

◆ IsConstant()

virtual bool GeomFill_TrihedronLaw::IsConstant ( ) const

virtual

Say if the law is Constant.

Reimplemented in GeomFill_ConstantBiNormal, GeomFill_CorrectedFrenet, GeomFill_Darboux, GeomFill_DiscreteTrihedron, GeomFill_DraftTrihedron, GeomFill_Fixed, GeomFill_Frenet, GeomFill_GuideTrihedronAC, and GeomFill_GuideTrihedronPlan.

◆ IsOnlyBy3dCurve()

virtual bool GeomFill_TrihedronLaw::IsOnlyBy3dCurve ( ) const

virtual

Say if the law is defined, only by the 3d Geometry of the set Curve Return False by Default.

Reimplemented in GeomFill_ConstantBiNormal, GeomFill_CorrectedFrenet, GeomFill_Darboux, GeomFill_DiscreteTrihedron, GeomFill_DraftTrihedron, GeomFill_Frenet, GeomFill_GuideTrihedronAC, and GeomFill_GuideTrihedronPlan.

◆ NbIntervals()

virtual int GeomFill_TrihedronLaw::NbIntervals ( const GeomAbs_Shape S ) const

pure virtual

Returns the number of intervals for continuity ~~. May be one if Continuity(me) >=~~

Implemented in GeomFill_ConstantBiNormal, GeomFill_CorrectedFrenet, GeomFill_Darboux, GeomFill_DiscreteTrihedron, GeomFill_DraftTrihedron, GeomFill_Fixed, GeomFill_Frenet, GeomFill_GuideTrihedronAC, and GeomFill_GuideTrihedronPlan.

◆ SetCurve()

virtual bool GeomFill_TrihedronLaw::SetCurve ( const occ::handle< Adaptor3d_Curve > & C )

virtual

initialize curve of trihedron law

Returns: true

Reimplemented in GeomFill_ConstantBiNormal, GeomFill_CorrectedFrenet, GeomFill_DiscreteTrihedron, GeomFill_Frenet, GeomFill_GuideTrihedronAC, and GeomFill_GuideTrihedronPlan.

◆ SetInterval()

virtual void GeomFill_TrihedronLaw::SetInterval	(	const double	First,
		const double	Last )

virtual

Sets the bounds of the parametric interval on the function This determines the derivatives in these values if the function is not Cn.

Reimplemented in GeomFill_CorrectedFrenet, GeomFill_GuideTrihedronAC, and GeomFill_GuideTrihedronPlan.

Field Documentation

◆ myCurve

occ::handle<Adaptor3d_Curve> GeomFill_TrihedronLaw::myCurve

protected

◆ myTrimmed

occ::handle<Adaptor3d_Curve> GeomFill_TrihedronLaw::myTrimmed

protected

The documentation for this class was generated from the following file:

GeomFill_TrihedronLaw.hxx
