Root class for fixing operations Provides context for recording changes (optional), basic precision value and limit (minimal and maximal) values for tolerances, and message registrator. More...

#include <ShapeFix_Root.hxx>

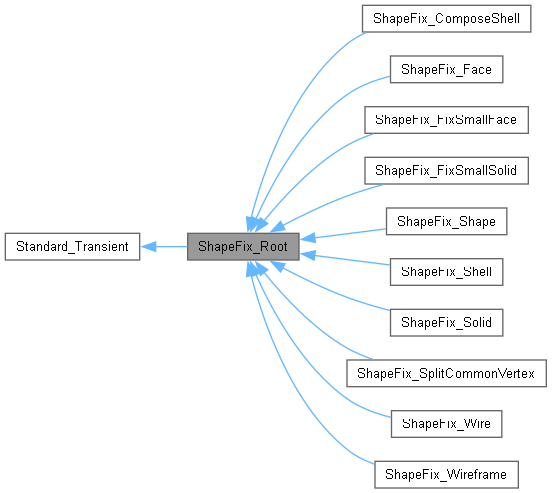

Inheritance diagram for ShapeFix_Root:

[legend]

Public Member Functions
	ShapeFix_Root ()
	Empty Constructor (no context is created)

virtual void	Set (const occ::handle< ShapeFix_Root > &Root)
	Copy all fields from another Root object.

virtual void	SetContext (const occ::handle< ShapeBuild_ReShape > &context)
	Sets context.

occ::handle< ShapeBuild_ReShape >	Context () const
	Returns context.

virtual void	SetMsgRegistrator (const occ::handle< ShapeExtend_BasicMsgRegistrator > &msgreg)
	Sets message registrator.

occ::handle< ShapeExtend_BasicMsgRegistrator >	MsgRegistrator () const
	Returns message registrator.

virtual void	SetPrecision (const double preci)
	Sets basic precision value.

double	Precision () const
	Returns basic precision value.

virtual void	SetMinTolerance (const double mintol)
	Sets minimal allowed tolerance.

double	MinTolerance () const
	Returns minimal allowed tolerance.

virtual void	SetMaxTolerance (const double maxtol)
	Sets maximal allowed tolerance.

double	MaxTolerance () const
	Returns maximal allowed tolerance.

double	LimitTolerance (const double toler) const
	Returns tolerance limited by [myMinTol,myMaxTol].

void	SendMsg (const TopoDS_Shape &shape, const Message_Msg &message, const Message_Gravity gravity=Message_Info) const
	Sends a message to be attached to the shape. Calls corresponding message of message registrator.

void	SendMsg (const Message_Msg &message, const Message_Gravity gravity=Message_Info) const
	Sends a message to be attached to myShape. Calls previous method.

void	SendWarning (const TopoDS_Shape &shape, const Message_Msg &message) const
	Sends a warning to be attached to the shape. Calls SendMsg with gravity set to Message_Warning.

void	SendWarning (const Message_Msg &message) const
	Calls previous method for myShape.

void	SendFail (const TopoDS_Shape &shape, const Message_Msg &message) const
	Sends a fail to be attached to the shape. Calls SendMsg with gravity set to Message_Fail.

void	SendFail (const Message_Msg &message) const
	Calls previous method for myShape.

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()=default
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.

bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

int	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.

int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.

virtual void	Delete () const
	Memory deallocator for transient classes.

Static Protected Member Functions
static bool	NeedFix (const int flag, const bool def=true)
	Auxiliary method for work with three-position (on/off/default) flags (modes) in ShapeFix.

Protected Attributes
TopoDS_Shape	myShape

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Root class for fixing operations Provides context for recording changes (optional), basic precision value and limit (minimal and maximal) values for tolerances, and message registrator.

Constructor & Destructor Documentation

◆ ShapeFix_Root()

ShapeFix_Root::ShapeFix_Root ( )

Empty Constructor (no context is created)

Member Function Documentation

◆ Context()

occ::handle< ShapeBuild_ReShape > ShapeFix_Root::Context ( ) const

Returns context.

◆ LimitTolerance()

double ShapeFix_Root::LimitTolerance ( const double toler ) const

Returns tolerance limited by [myMinTol,myMaxTol].

◆ MaxTolerance()

double ShapeFix_Root::MaxTolerance ( ) const

Returns maximal allowed tolerance.

◆ MinTolerance()

double ShapeFix_Root::MinTolerance ( ) const

Returns minimal allowed tolerance.

◆ MsgRegistrator()

occ::handle< ShapeExtend_BasicMsgRegistrator > ShapeFix_Root::MsgRegistrator ( ) const

Returns message registrator.

◆ NeedFix()

static bool ShapeFix_Root::NeedFix	(	const int	flag,
		const bool	def = true )

staticprotected

Auxiliary method for work with three-position (on/off/default) flags (modes) in ShapeFix.

◆ Precision()

double ShapeFix_Root::Precision ( ) const

Returns basic precision value.

◆ SendFail() [1/2]

void ShapeFix_Root::SendFail ( const Message_Msg & message ) const

Calls previous method for myShape.

◆ SendFail() [2/2]

void ShapeFix_Root::SendFail	(	const TopoDS_Shape &	shape,
		const Message_Msg &	message ) const

Sends a fail to be attached to the shape. Calls SendMsg with gravity set to Message_Fail.

◆ SendMsg() [1/2]

void ShapeFix_Root::SendMsg	(	const Message_Msg &	message,
		const Message_Gravity	gravity = Message_Info ) const

Sends a message to be attached to myShape. Calls previous method.

◆ SendMsg() [2/2]

void ShapeFix_Root::SendMsg	(	const TopoDS_Shape &	shape,
		const Message_Msg &	message,
		const Message_Gravity	gravity = Message_Info ) const

Sends a message to be attached to the shape. Calls corresponding message of message registrator.

◆ SendWarning() [1/2]

void ShapeFix_Root::SendWarning ( const Message_Msg & message ) const

Calls previous method for myShape.

◆ SendWarning() [2/2]

void ShapeFix_Root::SendWarning	(	const TopoDS_Shape &	shape,
		const Message_Msg &	message ) const

Sends a warning to be attached to the shape. Calls SendMsg with gravity set to Message_Warning.

◆ Set()

virtual void ShapeFix_Root::Set ( const occ::handle< ShapeFix_Root > & Root )

virtual

Copy all fields from another Root object.

◆ SetContext()

virtual void ShapeFix_Root::SetContext ( const occ::handle< ShapeBuild_ReShape > & context )

virtual

Sets context.

◆ SetMaxTolerance()

virtual void ShapeFix_Root::SetMaxTolerance ( const double maxtol )

virtual

Sets maximal allowed tolerance.

Reimplemented in ShapeFix_Face, ShapeFix_Shape, ShapeFix_Shell, and ShapeFix_Solid.

◆ SetMinTolerance()

virtual void ShapeFix_Root::SetMinTolerance ( const double mintol )

virtual

Sets minimal allowed tolerance.

Reimplemented in ShapeFix_Face, ShapeFix_Shape, ShapeFix_Shell, and ShapeFix_Solid.

◆ SetMsgRegistrator()

virtual void ShapeFix_Root::SetMsgRegistrator ( const occ::handle< ShapeExtend_BasicMsgRegistrator > & msgreg )

virtual

Sets message registrator.

Reimplemented in ShapeFix_Face, ShapeFix_Shape, ShapeFix_Shell, and ShapeFix_Solid.

◆ SetPrecision()

virtual void ShapeFix_Root::SetPrecision ( const double preci )

virtual

Sets basic precision value.

Reimplemented in ShapeFix_Wire, ShapeFix_Face, ShapeFix_Shape, ShapeFix_Shell, and ShapeFix_Solid.

Field Documentation

◆ myShape

TopoDS_Shape ShapeFix_Root::myShape

protected

The documentation for this class was generated from the following file:

ShapeFix_Root.hxx
