ShapeUpgrade_Tool Class Reference

Tool is a root class for splitting classes Provides context for recording changes, basic precision value and limit (minimal and maximal) values for tolerances. More...

#include <ShapeUpgrade_Tool.hxx>

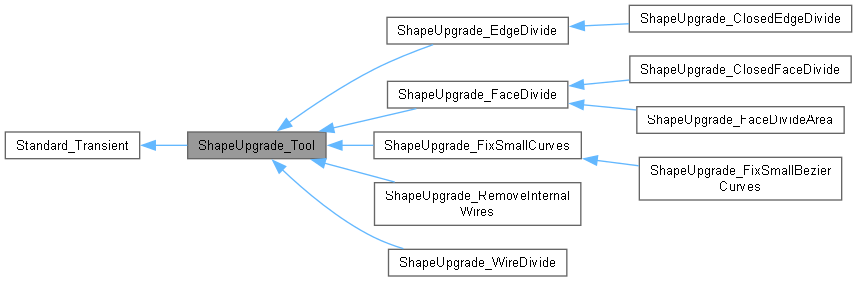

Inheritance diagram for ShapeUpgrade_Tool:

Public Member Functions
	ShapeUpgrade_Tool ()
	Empty constructor.
void	Set (const occ::handle< ShapeUpgrade_Tool > &tool)
	Copy all fields from another Root object.
void	SetContext (const occ::handle< ShapeBuild_ReShape > &context)
	Sets context.
occ::handle< ShapeBuild_ReShape >	Context () const
	Returns context.
void	SetPrecision (const double preci)
	Sets basic precision value.
double	Precision () const
	Returns basic precision value.
void	SetMinTolerance (const double mintol)
	Sets minimal allowed tolerance.
double	MinTolerance () const
	Returns minimal allowed tolerance.
void	SetMaxTolerance (const double maxtol)
	Sets maximal allowed tolerance.
double	MaxTolerance () const
	Returns maximal allowed tolerance.
double	LimitTolerance (const double toler) const
	Returns tolerance limited by [myMinTol,myMaxTol].
Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.
	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.
Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.
virtual	~Standard_Transient ()=default
	Destructor must be virtual.
virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.
bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.
bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.
bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.
int	GetRefCount () const noexcept
	Get the reference counter of this object.
void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.
int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.
virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.
Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.
static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Tool is a root class for splitting classes Provides context for recording changes, basic precision value and limit (minimal and maximal) values for tolerances.

Constructor & Destructor Documentation

ShapeUpgrade_Tool()

ShapeUpgrade_Tool::ShapeUpgrade_Tool

(

)

Empty constructor.

Member Function Documentation

Context()

occ::handle< ShapeBuild_ReShape > ShapeUpgrade_Tool::Context

(

)

const

Returns context.

LimitTolerance()

double ShapeUpgrade_Tool::LimitTolerance

(

const double

toler

)

const

Returns tolerance limited by [myMinTol,myMaxTol].

MaxTolerance()

double ShapeUpgrade_Tool::MaxTolerance

(

)

const

Returns maximal allowed tolerance.

MinTolerance()

double ShapeUpgrade_Tool::MinTolerance

(

)

const

Returns minimal allowed tolerance.

Precision()

double ShapeUpgrade_Tool::Precision

(

)

const

Returns basic precision value.

Set()

void ShapeUpgrade_Tool::Set

(

const occ::handle< ShapeUpgrade_Tool > &

tool

)

Copy all fields from another Root object.

SetContext()

void ShapeUpgrade_Tool::SetContext

(

const occ::handle< ShapeBuild_ReShape > &

context

)

Sets context.

SetMaxTolerance()

void ShapeUpgrade_Tool::SetMaxTolerance

(

const double

maxtol

)

Sets maximal allowed tolerance.

SetMinTolerance()

void ShapeUpgrade_Tool::SetMinTolerance

(

const double

mintol

)

Sets minimal allowed tolerance.

SetPrecision()

void ShapeUpgrade_Tool::SetPrecision

(

const double

preci

)

Sets basic precision value.

---

The documentation for this class was generated from the following file:

• ShapeUpgrade_Tool.hxx
