A class each application has to implement. It is used to contain the application data. This abstract class, alongwith Label, is one of the cornerstones of Model Editor. The groundwork is to define the root of information. This information is to be attached to a Label, and could be of any of the following types: More...

#include <TDF_Attribute.hxx>

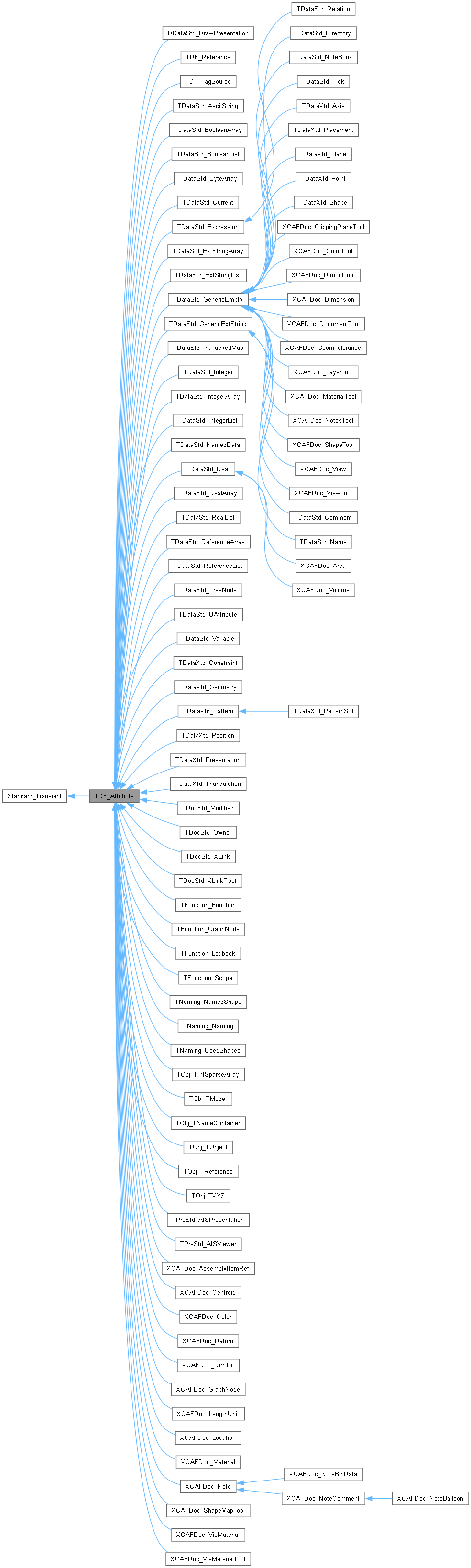

Inheritance diagram for TDF_Attribute:

[legend]

Public Member Functions
virtual const Standard_GUID &	ID () const =0
	Returns the ID of the attribute.

virtual void	SetID (const Standard_GUID &)
	Sets specific ID of the attribute (supports several attributes of one type at the same label feature).

virtual void	SetID ()
	Sets default ID defined in nested class (to be used for attributes having User ID feature).

const TDF_Label	Label () const
	Returns the label to which the attribute is attached. If the label is not included in a DF, the label is null. See Label. Warning: If the label is not included in a data framework, it is null. This function should not be redefined inline.

int	Transaction () const
	Returns the transaction index in which the attribute has been created or modified.

int	UntilTransaction () const
	Returns the upper transaction index until which the attribute is/was valid. This number may vary. A removed attribute validity range is reduced to its transaction index.

bool	IsValid () const
	Returns true if the attribute is valid; i.e. not a backuped or removed one.

bool	IsNew () const
	Returns true if the attribute has no backup.

bool	IsForgotten () const
	Returns true if the attribute forgotten status is set.

bool	IsAttribute (const Standard_GUID &anID) const
	Returns true if it exists an associated attribute of <me> with <anID> as ID.

bool	FindAttribute (const Standard_GUID &anID, occ::handle< TDF_Attribute > &anAttribute) const
	Finds an associated attribute of <me>, according to <anID>. the returned <anAttribute> is a valid one. The method returns True if found, False otherwise. A removed attribute cannot be found using this method.

template<class T >
bool	FindAttribute (const Standard_GUID &theID, occ::handle< T > &theAttr) const
	Safe variant for arbitrary type of argument.

void	AddAttribute (const occ::handle< TDF_Attribute > &other) const
	Adds an Attribute <other> to the label of <me>. Raises if there is already one of the same GUID than <other>.

bool	ForgetAttribute (const Standard_GUID &aguid) const
	Forgets the Attribute of GUID <aguid> associated to the label of <me>. Be careful that if <me> is the attribute of <guid>, <me> will have a null label after this call. If the attribute doesn't exist returns False. Otherwise returns True.

void	ForgetAllAttributes (const bool clearChildren=true) const
	Forgets all the attributes attached to the label of <me>. Does it on the sub-labels if <clearChildren> is set to true. Of course, this method is compatible with Transaction & Delta mechanisms. Be careful that if <me> will have a null label after this call.

virtual void	AfterAddition ()
	Something to do after adding an Attribute to a label.

virtual void	BeforeRemoval ()
	Something to do before removing an Attribute from a label.

virtual void	BeforeForget ()
	Something to do before forgetting an Attribute to a label.

virtual void	AfterResume ()
	Something to do after resuming an Attribute from a label.

virtual bool	AfterRetrieval (const bool forceIt=false)
	Something to do AFTER creation of an attribute by persistent-transient translation. The returned status says if AfterUndo has been performed (true) or if this callback must be called once again further (false). If <forceIt> is set to true, the method MUST perform and return true. Does nothing by default and returns true.

virtual bool	BeforeUndo (const occ::handle< TDF_AttributeDelta > &anAttDelta, const bool forceIt=false)
	Something to do before applying <anAttDelta>. The returned status says if AfterUndo has been performed (true) or if this callback must be called once again further (false). If <forceIt> is set to true, the method MUST perform and return true. Does nothing by default and returns true.

virtual bool	AfterUndo (const occ::handle< TDF_AttributeDelta > &anAttDelta, const bool forceIt=false)
	Something to do after applying <anAttDelta>. The returned status says if AfterUndo has been performed (true) or if this callback must be called once again further (false). If <forceIt> is set to true, the method MUST perform and return true. Does nothing by default and returns true.

virtual void	BeforeCommitTransaction ()
	A callback. By default does nothing. It is called by TDF_Data::CommitTransaction() method.

void	Backup ()
	Backups the attribute. The backuped attribute is flagged "Backuped" and not "Valid".

bool	IsBackuped () const
	Returns true if the attribute backup status is set. This status is set/unset by the Backup() method.

virtual occ::handle< TDF_Attribute >	BackupCopy () const
	Copies the attribute contents into a new other attribute. It is used by Backup().

virtual void	Restore (const occ::handle< TDF_Attribute > &anAttribute)=0
	Restores the backuped contents from <anAttribute> into this one. It is used when aborting a transaction.

virtual occ::handle< TDF_DeltaOnAddition >	DeltaOnAddition () const
	Makes an AttributeDelta because <me> appeared. The only known use of a redefinition of this method is to return a null handle (no delta).

virtual occ::handle< TDF_DeltaOnForget >	DeltaOnForget () const
	Makes an AttributeDelta because <me> has been forgotten.

virtual occ::handle< TDF_DeltaOnResume >	DeltaOnResume () const
	Makes an AttributeDelta because <me> has been resumed.

virtual occ::handle< TDF_DeltaOnModification >	DeltaOnModification (const occ::handle< TDF_Attribute > &anOldAttribute) const
	Makes a DeltaOnModification between <me> and.

virtual void	DeltaOnModification (const occ::handle< TDF_DeltaOnModification > &aDelta)
	Applies a DeltaOnModification to <me>.

virtual occ::handle< TDF_DeltaOnRemoval >	DeltaOnRemoval () const
	Makes a DeltaOnRemoval on <me> because <me> has disappeared from the DS.

virtual occ::handle< TDF_Attribute >	NewEmpty () const =0
	Returns an new empty attribute from the good end type. It is used by the copy algorithm.

virtual void	Paste (const occ::handle< TDF_Attribute > &intoAttribute, const occ::handle< TDF_RelocationTable > &aRelocationTable) const =0
	This method is different from the "Copy" one, because it is used when copying an attribute from a source structure into a target structure. This method may paste the contents of <me> into <intoAttribute>.

virtual void	References (const occ::handle< TDF_DataSet > &aDataSet) const
	Adds the first level referenced attributes and labels to <aDataSet>.

virtual Standard_OStream &	Dump (Standard_OStream &anOS) const
	Dumps the minimum information about <me> on <aStream>.

Standard_OStream &	operator<< (Standard_OStream &anOS) const

virtual void	ExtendedDump (Standard_OStream &anOS, const TDF_IDFilter &aFilter, NCollection_IndexedMap< occ::handle< TDF_Attribute > > &aMap) const
	Dumps the attribute content on <aStream>, using <aMap> like this: if an attribute is not in the map, first put add it to the map and then dump it. Use the map rank instead of dumping each attribute field.

void	Forget (const int aTransaction)
	Forgets the attribute. <aTransaction> is the current transaction in which the forget is done. A forgotten attribute is also flagged not "Valid".

virtual void	DumpJson (Standard_OStream &theOStream, int theDepth=-1) const
	Dumps the content of me into the stream.

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()=default
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.

bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

int	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.

int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.

virtual void	Delete () const
	Memory deallocator for transient classes.

Protected Member Functions
	TDF_Attribute ()
	Initializes fields.

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

A class each application has to implement. It is used to contain the application data. This abstract class, alongwith Label, is one of the cornerstones of Model Editor. The groundwork is to define the root of information. This information is to be attached to a Label, and could be of any of the following types:

a feature
a constraint
a comment

Identification:

An attribute can be identified by its ID. Every attributes used with the same meaning (for example: Integer, String, Topology...) have the same worldwide unique ID.

Addition:

An attribute can be added to a label only if there is no attribute yet with the same ID. Call-back methods are offered, called automatically before and after the addition action.

Removal:

An attribute can be removed from a label only if there is an attribute yet with the same ID. Call-back methods are offered, called automatically before and after the removal action. A removed attribute cannot be found again. After a removal, only an addition of an attribute with the sane ID is possible (no backup...).

Modification & Transaction:

An attribute can be backuped before a modification. Only one backup attribute by transaction is possible. The modification can be forgotten (abort transaction) or validated (commit transaction).

BackupCopy and restore are methods used by the backup or abort transaction actions. BackupCopy is called by Backup to generate an attribute with the same contents as the current one. Restore is called when aborting a transaction to transfer the backuped contents into the current attribute. These methods must be implemented by end use inheriting classes.

A standard implementation of BackupCopy is provided, but it is not necessary a good one for any use.

Copy use methods:

Paste and NewEmpty methods are used by the copy algorithms. The goal of "Paste" is to transfer an attribute new contents into another attribute. The goal of "NewEmpty" is to create an attribute without contents, to be further filled with the new contents of another one. These 2 methods must be implemented by end use inheriting classes.

AttributeDelta:

An AttributeDelta is the difference between to attribute values states. These methods must be implemented by end use inheriting classes, to profit from the delta services.

Constructor & Destructor Documentation

◆ TDF_Attribute()

TDF_Attribute::TDF_Attribute ( )

protected

Initializes fields.

Member Function Documentation

◆ AddAttribute()

void TDF_Attribute::AddAttribute ( const occ::handle< TDF_Attribute > & other ) const

Adds an Attribute <other> to the label of <me>. Raises if there is already one of the same GUID than <other>.

◆ AfterAddition()

virtual void TDF_Attribute::AfterAddition ( )

virtual

Something to do after adding an Attribute to a label.

Reimplemented in TDataStd_TreeNode, TDocStd_XLink, TPrsStd_AISPresentation, and DDataStd_DrawPresentation.

◆ AfterResume()

virtual void TDF_Attribute::AfterResume ( )

virtual

Something to do after resuming an Attribute from a label.

Reimplemented in TDataStd_TreeNode, TObj_TReference, TPrsStd_AISPresentation, and DDataStd_DrawPresentation.

◆ AfterRetrieval()

virtual bool TDF_Attribute::AfterRetrieval ( const bool forceIt = false )

virtual

Something to do AFTER creation of an attribute by persistent-transient translation. The returned status says if AfterUndo has been performed (true) or if this callback must be called once again further (false). If <forceIt> is set to true, the method MUST perform and return true. Does nothing by default and returns true.

Reimplemented in TObj_TReference, and XCAFDoc_DocumentTool.

◆ AfterUndo()

virtual bool TDF_Attribute::AfterUndo	(	const occ::handle< TDF_AttributeDelta > &	anAttDelta,
		const bool	forceIt = false )

virtual

Something to do after applying <anAttDelta>. The returned status says if AfterUndo has been performed (true) or if this callback must be called once again further (false). If <forceIt> is set to true, the method MUST perform and return true. Does nothing by default and returns true.

Reimplemented in TObj_TObject, TNaming_NamedShape, TNaming_UsedShapes, TDataStd_TreeNode, TDocStd_XLink, TPrsStd_AISPresentation, DDataStd_DrawPresentation, TObj_TReference, and TObj_TIntSparseArray.

◆ Backup()

void TDF_Attribute::Backup ( )

Backups the attribute. The backuped attribute is flagged "Backuped" and not "Valid".

The method does nothing:

1) If the attribute transaction number is equal to the current transaction number (the attribute has already been backuped).

2) If the attribute is not attached to a label.

◆ BackupCopy()

virtual occ::handle< TDF_Attribute > TDF_Attribute::BackupCopy ( ) const

virtual

Copies the attribute contents into a new other attribute. It is used by Backup().

Reimplemented in TDataXtd_Presentation, TNaming_NamedShape, TNaming_UsedShapes, TDocStd_XLink, TDocStd_XLinkRoot, TObj_TIntSparseArray, and TPrsStd_AISPresentation.

◆ BeforeCommitTransaction()

virtual void TDF_Attribute::BeforeCommitTransaction ( )

virtual

A callback. By default does nothing. It is called by TDF_Data::CommitTransaction() method.

Reimplemented in TObj_TIntSparseArray.

◆ BeforeForget()

virtual void TDF_Attribute::BeforeForget ( )

virtual

Something to do before forgetting an Attribute to a label.

Reimplemented in TDataStd_TreeNode, TObj_TObject, TObj_TReference, TPrsStd_AISPresentation, XCAFDoc_GraphNode, and DDataStd_DrawPresentation.

◆ BeforeRemoval()

virtual void TDF_Attribute::BeforeRemoval ( )

virtual

Something to do before removing an Attribute from a label.

Reimplemented in TNaming_NamedShape, TNaming_UsedShapes, TDocStd_XLink, TPrsStd_AISPresentation, and DDataStd_DrawPresentation.

◆ BeforeUndo()

virtual bool TDF_Attribute::BeforeUndo	(	const occ::handle< TDF_AttributeDelta > &	anAttDelta,
		const bool	forceIt = false )

virtual

Something to do before applying <anAttDelta>. The returned status says if AfterUndo has been performed (true) or if this callback must be called once again further (false). If <forceIt> is set to true, the method MUST perform and return true. Does nothing by default and returns true.

Reimplemented in TNaming_NamedShape, TDataStd_TreeNode, TDocStd_XLink, TPrsStd_AISPresentation, DDataStd_DrawPresentation, and TObj_TReference.

◆ DeltaOnAddition()

virtual occ::handle< TDF_DeltaOnAddition > TDF_Attribute::DeltaOnAddition ( ) const

virtual

Makes an AttributeDelta because <me> appeared. The only known use of a redefinition of this method is to return a null handle (no delta).

Reimplemented in TNaming_UsedShapes.

◆ DeltaOnForget()

virtual occ::handle< TDF_DeltaOnForget > TDF_Attribute::DeltaOnForget ( ) const

virtual

Makes an AttributeDelta because <me> has been forgotten.

◆ DeltaOnModification() [1/2]

virtual occ::handle< TDF_DeltaOnModification > TDF_Attribute::DeltaOnModification ( const occ::handle< TDF_Attribute > & anOldAttribute ) const

virtual

Makes a DeltaOnModification between <me> and.

Reimplemented in TNaming_NamedShape, TDataStd_ByteArray, TDataStd_ExtStringArray, TDataStd_IntegerArray, TDataStd_IntPackedMap, and TDataStd_RealArray.

◆ DeltaOnModification() [2/2]

virtual void TDF_Attribute::DeltaOnModification ( const occ::handle< TDF_DeltaOnModification > & aDelta )

virtual

Applies a DeltaOnModification to <me>.

Reimplemented in TNaming_NamedShape, and TObj_TIntSparseArray.

◆ DeltaOnRemoval()

virtual occ::handle< TDF_DeltaOnRemoval > TDF_Attribute::DeltaOnRemoval ( ) const

virtual

Makes a DeltaOnRemoval on <me> because <me> has disappeared from the DS.

Reimplemented in TNaming_NamedShape, and TNaming_UsedShapes.

◆ DeltaOnResume()

virtual occ::handle< TDF_DeltaOnResume > TDF_Attribute::DeltaOnResume ( ) const

virtual

Makes an AttributeDelta because <me> has been resumed.

◆ Dump()

virtual Standard_OStream & TDF_Attribute::Dump ( Standard_OStream & anOS ) const

virtual

Dumps the minimum information about <me> on <aStream>.

Reimplemented in TDataXtd_Axis, TDataXtd_Constraint, TDataXtd_Geometry, TDataXtd_PatternStd, TDataXtd_Placement, TDataXtd_Plane, TDataXtd_Point, TDataXtd_Shape, TDataXtd_Triangulation, TNaming_NamedShape, TNaming_Naming, TNaming_UsedShapes, TDataStd_AsciiString, TDataStd_BooleanList, TDataStd_Comment, TDataStd_Current, TDataStd_Directory, TDataStd_Expression, TDataStd_ExtStringArray, TDataStd_ExtStringList, TDataStd_Integer, TDataStd_IntegerArray, TDataStd_IntegerList, TDataStd_IntPackedMap, TDataStd_Name, TDataStd_NamedData, TDataStd_NoteBook, TDataStd_Real, TDataStd_RealArray, TDataStd_RealList, TDataStd_ReferenceArray, TDataStd_ReferenceList, TDataStd_Relation, TDataStd_Tick, TDataStd_TreeNode, TDataStd_UAttribute, TDataStd_Variable, TDF_Reference, TDocStd_Modified, TDocStd_Owner, TDocStd_XLink, TDocStd_XLinkRoot, TFunction_Function, TFunction_GraphNode, TFunction_Logbook, TFunction_Scope, XCAFDoc_Area, XCAFDoc_Centroid, XCAFDoc_GraphNode, XCAFDoc_LengthUnit, XCAFDoc_Volume, TDataStd_BooleanArray, TDataStd_ByteArray, XCAFDoc_ShapeTool, TObj_TXYZ, XCAFDoc_AssemblyItemRef, XCAFDoc_Note, XCAFDoc_NoteBinData, XCAFDoc_NoteComment, and XCAFDoc_NotesTool.

◆ DumpJson()

virtual void TDF_Attribute::DumpJson	(	Standard_OStream &	theOStream,
		int	theDepth = -1 ) const

virtual

Dumps the content of me into the stream.

Reimplemented in TNaming_NamedShape, TNaming_Naming, TNaming_UsedShapes, TDataStd_AsciiString, TDataStd_BooleanArray, TDataStd_BooleanList, TDataStd_ByteArray, TDataStd_Current, TDataStd_Expression, TDataStd_ExtStringArray, TDataStd_ExtStringList, TDataStd_GenericEmpty, TDataStd_GenericExtString, TDataStd_Integer, TDataStd_IntegerArray, TDataStd_IntegerList, TDataStd_IntPackedMap, TDataStd_NamedData, TDataStd_Real, TDataStd_RealArray, TDataStd_RealList, TDataStd_ReferenceArray, TDataStd_ReferenceList, TDataStd_Relation, TDataStd_TreeNode, TDataStd_UAttribute, TDataStd_Variable, TDF_Reference, TDF_TagSource, TDocStd_Owner, TFunction_Function, TPrsStd_AISPresentation, TPrsStd_AISViewer, XCAFDoc_Area, XCAFDoc_AssemblyItemRef, XCAFDoc_Centroid, XCAFDoc_Color, XCAFDoc_ColorTool, XCAFDoc_Datum, XCAFDoc_Dimension, XCAFDoc_DimTol, XCAFDoc_DimTolTool, XCAFDoc_GeomTolerance, XCAFDoc_GraphNode, XCAFDoc_LayerTool, XCAFDoc_LengthUnit, XCAFDoc_Location, XCAFDoc_Material, XCAFDoc_MaterialTool, XCAFDoc_Note, XCAFDoc_ShapeMapTool, XCAFDoc_ShapeTool, XCAFDoc_VisMaterial, and XCAFDoc_Volume.

◆ ExtendedDump()

virtual void TDF_Attribute::ExtendedDump	(	Standard_OStream &	anOS,
		const TDF_IDFilter &	aFilter,
		NCollection_IndexedMap< occ::handle< TDF_Attribute > > &	aMap ) const

virtual

Dumps the attribute content on <aStream>, using <aMap> like this: if an attribute is not in the map, first put add it to the map and then dump it. Use the map rank instead of dumping each attribute field.

Reimplemented in TNaming_Naming.

◆ FindAttribute() [1/2]

bool TDF_Attribute::FindAttribute	(	const Standard_GUID &	anID,
		occ::handle< TDF_Attribute > &	anAttribute ) const

Finds an associated attribute of <me>, according to <anID>. the returned <anAttribute> is a valid one. The method returns True if found, False otherwise. A removed attribute cannot be found using this method.

◆ FindAttribute() [2/2]

template<class T >

bool TDF_Attribute::FindAttribute	(	const Standard_GUID &	theID,
		occ::handle< T > &	theAttr ) const

inline

Safe variant for arbitrary type of argument.

◆ Forget()

void TDF_Attribute::Forget ( const int aTransaction )

Forgets the attribute. <aTransaction> is the current transaction in which the forget is done. A forgotten attribute is also flagged not "Valid".

A forgotten attribute is invisible. Set also the "Valid" status to False. Obviously, DF cannot empty an attribute (this has a semantic signification), but can remove it from the structure. So, a forgotten attribute is NOT an empty one, but a soon DEAD one.

Should be private.

◆ ForgetAllAttributes()

void TDF_Attribute::ForgetAllAttributes ( const bool clearChildren = true ) const

Forgets all the attributes attached to the label of <me>. Does it on the sub-labels if <clearChildren> is set to true. Of course, this method is compatible with Transaction & Delta mechanisms. Be careful that if <me> will have a null label after this call.

◆ ForgetAttribute()

bool TDF_Attribute::ForgetAttribute ( const Standard_GUID & aguid ) const

Forgets the Attribute of GUID <aguid> associated to the label of <me>. Be careful that if <me> is the attribute of <guid>, <me> will have a null label after this call. If the attribute doesn't exist returns False. Otherwise returns True.

◆ ID()

virtual const Standard_GUID & TDF_Attribute::ID ( ) const

pure virtual

Returns the ID of the attribute.

Implemented in TDataXtd_Axis, TDataXtd_Constraint, TDataXtd_Geometry, TDataXtd_Pattern, TDataXtd_Placement, TDataXtd_Plane, TDataXtd_Point, TDataXtd_Position, TDataXtd_Presentation, TDataXtd_Shape, TDataXtd_Triangulation, TNaming_NamedShape, TNaming_Naming, TNaming_UsedShapes, TDataStd_AsciiString, TDataStd_BooleanArray, TDataStd_BooleanList, TDataStd_ByteArray, TDataStd_Current, TDataStd_Directory, TDataStd_Expression, TDataStd_ExtStringArray, TDataStd_ExtStringList, TDataStd_GenericExtString, TDataStd_Integer, TDataStd_IntegerArray, TDataStd_IntegerList, TDataStd_IntPackedMap, TDataStd_NamedData, TDataStd_NoteBook, TDataStd_Real, TDataStd_RealArray, TDataStd_RealList, TDataStd_ReferenceArray, TDataStd_ReferenceList, TDataStd_Relation, TDataStd_Tick, TDataStd_TreeNode, TDataStd_UAttribute, TDataStd_Variable, TDF_Reference, TDF_TagSource, TDocStd_Modified, TDocStd_Owner, TDocStd_XLink, TDocStd_XLinkRoot, TFunction_Function, TFunction_GraphNode, TFunction_Logbook, TFunction_Scope, TObj_TIntSparseArray, TObj_TModel, TObj_TNameContainer, TObj_TObject, TObj_TReference, TObj_TXYZ, TPrsStd_AISPresentation, TPrsStd_AISViewer, XCAFDoc_Area, XCAFDoc_AssemblyItemRef, XCAFDoc_Centroid, XCAFDoc_ClippingPlaneTool, XCAFDoc_Color, XCAFDoc_ColorTool, XCAFDoc_Datum, XCAFDoc_Dimension, XCAFDoc_DimTol, XCAFDoc_DimTolTool, XCAFDoc_DocumentTool, XCAFDoc_GeomTolerance, XCAFDoc_GraphNode, XCAFDoc_LayerTool, XCAFDoc_LengthUnit, XCAFDoc_Location, XCAFDoc_Material, XCAFDoc_MaterialTool, XCAFDoc_NoteBalloon, XCAFDoc_NoteBinData, XCAFDoc_NoteComment, XCAFDoc_NotesTool, XCAFDoc_ShapeMapTool, XCAFDoc_ShapeTool, XCAFDoc_View, XCAFDoc_ViewTool, XCAFDoc_VisMaterial, XCAFDoc_VisMaterialTool, XCAFDoc_Volume, and DDataStd_DrawPresentation.

◆ IsAttribute()

bool TDF_Attribute::IsAttribute ( const Standard_GUID & anID ) const

Returns true if it exists an associated attribute of <me> with <anID> as ID.

◆ IsBackuped()

bool TDF_Attribute::IsBackuped ( ) const

Returns true if the attribute backup status is set. This status is set/unset by the Backup() method.

◆ IsForgotten()

bool TDF_Attribute::IsForgotten ( ) const

Returns true if the attribute forgotten status is set.

ShortCut Methods concerning associated attributes

◆ IsNew()

bool TDF_Attribute::IsNew ( ) const

Returns true if the attribute has no backup.

◆ IsValid()

bool TDF_Attribute::IsValid ( ) const

Returns true if the attribute is valid; i.e. not a backuped or removed one.

◆ Label()

const TDF_Label TDF_Attribute::Label ( ) const

Returns the label to which the attribute is attached. If the label is not included in a DF, the label is null. See Label. Warning: If the label is not included in a data framework, it is null. This function should not be redefined inline.

◆ NewEmpty()

virtual occ::handle< TDF_Attribute > TDF_Attribute::NewEmpty ( ) const

pure virtual

Returns an new empty attribute from the good end type. It is used by the copy algorithm.

Implemented in TDataXtd_Constraint, TDataXtd_Geometry, TDataXtd_PatternStd, TDataXtd_Position, TDataXtd_Presentation, TDataXtd_Triangulation, TNaming_NamedShape, TNaming_Naming, TNaming_UsedShapes, TDataStd_AsciiString, TDataStd_BooleanArray, TDataStd_BooleanList, TDataStd_ByteArray, TDataStd_Current, TDataStd_Expression, TDataStd_ExtStringArray, TDataStd_ExtStringList, TDataStd_Integer, TDataStd_IntegerArray, TDataStd_IntegerList, TDataStd_IntPackedMap, TDataStd_NamedData, TDataStd_Real, TDataStd_RealArray, TDataStd_RealList, TDataStd_ReferenceArray, TDataStd_ReferenceList, TDataStd_TreeNode, TDataStd_UAttribute, TDataStd_Variable, TDF_Reference, TDF_TagSource, TDocStd_Modified, TDocStd_Owner, TDocStd_XLink, TDocStd_XLinkRoot, TFunction_Function, TFunction_GraphNode, TFunction_Logbook, TFunction_Scope, TObj_TIntSparseArray, TObj_TModel, TObj_TNameContainer, TObj_TObject, TObj_TReference, TObj_TXYZ, TPrsStd_AISPresentation, TPrsStd_AISViewer, XCAFDoc_AssemblyItemRef, XCAFDoc_Centroid, XCAFDoc_Color, XCAFDoc_Datum, XCAFDoc_DimTol, XCAFDoc_GraphNode, XCAFDoc_Location, XCAFDoc_Material, XCAFDoc_NoteBinData, XCAFDoc_NoteComment, XCAFDoc_ShapeMapTool, XCAFDoc_VisMaterial, XCAFDoc_VisMaterialTool, and DDataStd_DrawPresentation.

◆ operator<<()

Standard_OStream & TDF_Attribute::operator<< ( Standard_OStream & anOS ) const

inline

◆ Paste()

virtual void TDF_Attribute::Paste	(	const occ::handle< TDF_Attribute > &	intoAttribute,
		const occ::handle< TDF_RelocationTable > &	aRelocationTable ) const

pure virtual

This method is different from the "Copy" one, because it is used when copying an attribute from a source structure into a target structure. This method may paste the contents of <me> into <intoAttribute>.

The given pasted attribute can be full or empty of its contents. But don't make a NEW! Just set the contents!

It is possible to use <aRelocationTable> to get/set the relocation value of a source attribute.

Implemented in TDataStd_GenericEmpty, XCAFDoc_VisMaterialTool, TDataXtd_Constraint, TDataXtd_Geometry, TDataXtd_PatternStd, TDataXtd_Triangulation, TNaming_Naming, TDataStd_AsciiString, TDataStd_BooleanArray, TDataStd_BooleanList, TDataStd_ByteArray, TDataStd_Current, TDataStd_Expression, TDataStd_ExtStringArray, TDataStd_ExtStringList, TDataStd_GenericExtString, TDataStd_Integer, TDataStd_IntegerArray, TDataStd_IntegerList, TDataStd_IntPackedMap, TDataStd_NamedData, TDataStd_Real, TDataStd_RealArray, TDataStd_RealList, TDataStd_ReferenceArray, TDataStd_ReferenceList, TDataStd_TreeNode, TDataStd_UAttribute, TDataStd_Variable, TDF_Reference, TDF_TagSource, TDocStd_Modified, TDocStd_Owner, TFunction_Function, TFunction_GraphNode, TFunction_Logbook, TFunction_Scope, TPrsStd_AISPresentation, TPrsStd_AISViewer, XCAFDoc_Centroid, XCAFDoc_Color, XCAFDoc_Datum, XCAFDoc_DimTol, XCAFDoc_GraphNode, XCAFDoc_Location, XCAFDoc_Material, XCAFDoc_ShapeMapTool, DDataStd_DrawPresentation, TDocStd_XLink, TDocStd_XLinkRoot, TDataXtd_Position, TDataXtd_Presentation, TNaming_NamedShape, TNaming_UsedShapes, XCAFDoc_AssemblyItemRef, XCAFDoc_Note, XCAFDoc_NoteBinData, XCAFDoc_NoteComment, XCAFDoc_VisMaterial, TObj_TIntSparseArray, TObj_TModel, TObj_TNameContainer, TObj_TObject, TObj_TReference, TObj_TXYZ, and XCAFDoc_LengthUnit.

◆ References()

virtual void TDF_Attribute::References ( const occ::handle< TDF_DataSet > & aDataSet ) const

virtual

Adds the first level referenced attributes and labels to <aDataSet>.

For this, use the AddLabel or AddAttribute of DataSet.

If there is none, do not implement the method.

Reimplemented in TDataXtd_PatternStd, TNaming_NamedShape, TNaming_Naming, TNaming_UsedShapes, TDataStd_TreeNode, TFunction_Function, TFunction_GraphNode, XCAFDoc_GraphNode, TDataXtd_Constraint, TDataXtd_Shape, TDataStd_ReferenceArray, TDataStd_ReferenceList, TDataStd_UAttribute, TDataStd_Variable, and TDF_Reference.

◆ Restore()

virtual void TDF_Attribute::Restore ( const occ::handle< TDF_Attribute > & anAttribute )

pure virtual

Restores the backuped contents from <anAttribute> into this one. It is used when aborting a transaction.

Implemented in TDataStd_GenericEmpty, XCAFDoc_VisMaterialTool, TDataXtd_Position, TDataXtd_Presentation, TNaming_NamedShape, TNaming_UsedShapes, TDocStd_XLink, TDocStd_XLinkRoot, XCAFDoc_AssemblyItemRef, XCAFDoc_Note, XCAFDoc_NoteBinData, XCAFDoc_NoteComment, TDataXtd_Triangulation, TObj_TIntSparseArray, TObj_TModel, TObj_TNameContainer, TObj_TObject, TObj_TReference, TObj_TXYZ, XCAFDoc_LengthUnit, XCAFDoc_VisMaterial, TDataXtd_Constraint, TDataXtd_Geometry, TDataXtd_PatternStd, TNaming_Naming, TDataStd_AsciiString, TDataStd_BooleanArray, TDataStd_BooleanList, TDataStd_ByteArray, TDataStd_Current, TDataStd_Expression, TDataStd_ExtStringArray, TDataStd_ExtStringList, TDataStd_GenericExtString, TDataStd_Integer, TDataStd_IntegerArray, TDataStd_IntegerList, TDataStd_IntPackedMap, TDataStd_NamedData, TDataStd_Real, TDataStd_RealArray, TDataStd_RealList, TDataStd_ReferenceArray, TDataStd_ReferenceList, TDataStd_TreeNode, TDataStd_UAttribute, TDataStd_Variable, TDF_Reference, TDF_TagSource, TDocStd_Modified, TDocStd_Owner, TFunction_Function, TFunction_GraphNode, TFunction_Logbook, TFunction_Scope, TPrsStd_AISPresentation, TPrsStd_AISViewer, XCAFDoc_Centroid, XCAFDoc_Color, XCAFDoc_Datum, XCAFDoc_DimTol, XCAFDoc_GraphNode, XCAFDoc_Location, XCAFDoc_Material, XCAFDoc_ShapeMapTool, and DDataStd_DrawPresentation.

◆ SetID() [1/2]

virtual void TDF_Attribute::SetID ( )

inlinevirtual

Sets default ID defined in nested class (to be used for attributes having User ID feature).

Reimplemented in TDataStd_AsciiString, TDataStd_BooleanArray, TDataStd_BooleanList, TDataStd_ByteArray, TDataStd_Comment, TDataStd_ExtStringArray, TDataStd_ExtStringList, TDataStd_Integer, TDataStd_IntegerArray, TDataStd_IntegerList, TDataStd_Name, TDataStd_Real, TDataStd_RealArray, TDataStd_RealList, TDataStd_ReferenceArray, and TDataStd_ReferenceList.

◆ SetID() [2/2]

virtual void TDF_Attribute::SetID ( const Standard_GUID & )

inlinevirtual

Sets specific ID of the attribute (supports several attributes of one type at the same label feature).

Reimplemented in TDataStd_AsciiString, TDataStd_Comment, TDataStd_GenericExtString, TDataStd_Integer, TDataStd_Name, TDataStd_Real, TDataStd_UAttribute, TDataStd_BooleanArray, TDataStd_BooleanList, TDataStd_ByteArray, TDataStd_ExtStringArray, TDataStd_ExtStringList, TDataStd_IntegerArray, TDataStd_IntegerList, TDataStd_RealArray, TDataStd_RealList, TDataStd_ReferenceArray, and TDataStd_ReferenceList.

◆ Transaction()

int TDF_Attribute::Transaction ( ) const

Returns the transaction index in which the attribute has been created or modified.

◆ UntilTransaction()

int TDF_Attribute::UntilTransaction ( ) const

Returns the upper transaction index until which the attribute is/was valid. This number may vary. A removed attribute validity range is reduced to its transaction index.

The documentation for this class was generated from the following file:

TDF_Attribute.hxx

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Contents:

Identification:

Addition:

Removal:

Modification & Transaction:

Copy use methods:

AttributeDelta:

Constructor & Destructor Documentation

◆ TDF_Attribute()

Member Function Documentation

◆ AddAttribute()

◆ AfterAddition()

◆ AfterResume()

◆ AfterRetrieval()

◆ AfterUndo()

◆ Backup()

◆ BackupCopy()

◆ BeforeCommitTransaction()

◆ BeforeForget()

◆ BeforeRemoval()

◆ BeforeUndo()

◆ DeltaOnAddition()

◆ DeltaOnForget()

◆ DeltaOnModification() [1/2]

◆ DeltaOnModification() [2/2]

◆ DeltaOnRemoval()

◆ DeltaOnResume()

◆ Dump()

◆ DumpJson()

◆ ExtendedDump()

◆ FindAttribute() [1/2]

◆ FindAttribute() [2/2]

◆ Forget()

◆ ForgetAllAttributes()

◆ ForgetAttribute()

◆ ID()

◆ IsAttribute()

◆ IsBackuped()

◆ IsForgotten()

ShortCut Methods concerning associated attributes

◆ IsNew()

◆ IsValid()

◆ Label()

◆ NewEmpty()

◆ operator<<()

◆ Paste()

◆ References()

◆ Restore()

◆ SetID() [1/2]

◆ SetID() [2/2]

◆ Transaction()

◆ UntilTransaction()
