A Binder is an auxiliary object to Map the Result of the Transfer of a given Object : it records the Result of the Unitary Transfer (Resulting Object), status of progress and error (if any) of the Process. More...

#include <Transfer_Binder.hxx>

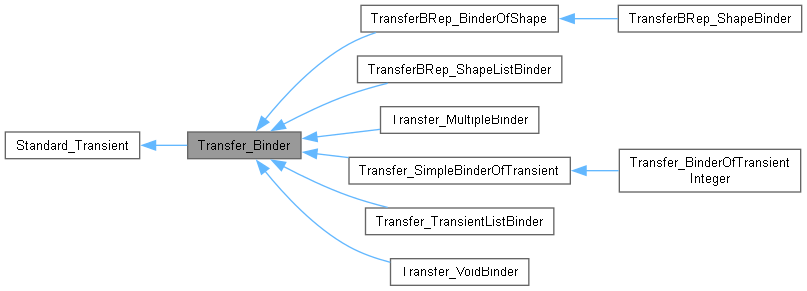

Inheritance diagram for Transfer_Binder:

[legend]

Public Member Functions
void	Merge (const occ::handle< Transfer_Binder > &other)
	Merges basic data (Check, ExecStatus) from another Binder but keeps its result. Used when a binder is replaced by another one, this allows to keep messages.

virtual bool	IsMultiple () const
	Returns True if a Binder has several results, either by itself or because it has next results Can be defined by sub-classes.

virtual occ::handle< Standard_Type >	ResultType () const =0
	Returns the Type which characterizes the Result (if known)

virtual const char *	ResultTypeName () const =0
	Returns the Name of the Type which characterizes the Result Can be returned even if ResultType itself is unknown.

void	AddResult (const occ::handle< Transfer_Binder > &next)
	Adds a next result (at the end of the list) Remark : this information is not processed by Merge.

occ::handle< Transfer_Binder >	NextResult () const
	Returns the next result, Null if none.

bool	HasResult () const
	Returns True if a Result is available (StatusResult = Defined) A Unique Result will be gotten by Result (which must be defined in each sub-class according to result type) For a Multiple Result, see class MultipleBinder For other case, specific access has to be forecast.

void	SetAlreadyUsed ()
	Declares that result is now used by another one, it means that it cannot be modified (by Rebind)

Transfer_StatusResult	Status () const
	Returns status, which can be Initial (not yet done), Made (a result is recorded, not yet shared), Used (it is shared and cannot be modified)

Transfer_StatusExec	StatusExec () const
	Returns execution status.

void	SetStatusExec (const Transfer_StatusExec stat)
	Modifies execution status; called by TransferProcess only (for StatusError, rather use SetError, below)

void	AddFail (const char const mess, const char const orig="")
	Used to declare an individual transfer as being erroneous (Status is set to Void, StatusExec is set to Error, <errmess> is added to Check's list of Fails) It is possible to record several messages of error.

void	AddWarning (const char const mess, const char const orig="")
	Used to attach a Warning Message to an individual Transfer It has no effect on the Status.

const occ::handle< Interface_Check >	Check () const
	Returns Check which stores Fail messages Note that no Entity is associated in this Check.

occ::handle< Interface_Check >	CCheck ()
	Returns Check which stores Fail messages, in order to modify it (adding messages, or replacing it)

	~Transfer_Binder () override
	Destructor.

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()=default
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.

bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

int	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.

int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.

virtual void	Delete () const
	Memory deallocator for transient classes.

Protected Member Functions
	Transfer_Binder ()
	Sets fields at initial values.

void	SetResultPresent ()
	Used to declare that a result is recorded for an individual transfer (works by setting StatusResult to Defined)

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

A Binder is an auxiliary object to Map the Result of the Transfer of a given Object : it records the Result of the Unitary Transfer (Resulting Object), status of progress and error (if any) of the Process.

The class Binder itself makes no definition for the Result : it is defined by sub-classes : it can be either Simple (and has to be typed : see generic class SimpleBinder) or Multiple (see class MultipleBinder).

In principle, for a Transfer in progress, Result cannot be accessed : this would cause an exception raising. This is controlled by the value if StatusResult : if it is "Used", the Result cannot be changed. This status is normally controlled by TransferProcess but can be directly (see method SetAlreadyUsed)

Checks can be completed by a record of cases, as string which can be used as codes, but not to be printed

In addition to the Result, a Binder can bring a list of Attributes, which are additional data, each of them has a name

Constructor & Destructor Documentation

◆ ~Transfer_Binder()

Transfer_Binder::~Transfer_Binder ( )

override

Destructor.

◆ Transfer_Binder()

Transfer_Binder::Transfer_Binder ( )

protected

Sets fields at initial values.

Member Function Documentation

◆ AddFail()

void Transfer_Binder::AddFail	(	const char *const	mess,
		const char *const	orig = "" )

Used to declare an individual transfer as being erroneous (Status is set to Void, StatusExec is set to Error, <errmess> is added to Check's list of Fails) It is possible to record several messages of error.

It has same effect for TransferProcess as raising an exception during the operation of Transfer, except the Transfer tries to continue (as if ErrorHandle had been set)

◆ AddResult()

void Transfer_Binder::AddResult ( const occ::handle< Transfer_Binder > & next )

Adds a next result (at the end of the list) Remark : this information is not processed by Merge.

◆ AddWarning()

void Transfer_Binder::AddWarning	(	const char *const	mess,
		const char *const	orig = "" )

Used to attach a Warning Message to an individual Transfer It has no effect on the Status.

◆ CCheck()

occ::handle< Interface_Check > Transfer_Binder::CCheck ( )

Returns Check which stores Fail messages, in order to modify it (adding messages, or replacing it)

◆ Check()

const occ::handle< Interface_Check > Transfer_Binder::Check ( ) const

Returns Check which stores Fail messages Note that no Entity is associated in this Check.

◆ HasResult()

bool Transfer_Binder::HasResult ( ) const

Returns True if a Result is available (StatusResult = Defined) A Unique Result will be gotten by Result (which must be defined in each sub-class according to result type) For a Multiple Result, see class MultipleBinder For other case, specific access has to be forecast.

◆ IsMultiple()

virtual bool Transfer_Binder::IsMultiple ( ) const

virtual

Returns True if a Binder has several results, either by itself or because it has next results Can be defined by sub-classes.

Reimplemented in Transfer_MultipleBinder, Transfer_TransientListBinder, and TransferBRep_ShapeListBinder.

◆ Merge()

void Transfer_Binder::Merge ( const occ::handle< Transfer_Binder > & other )

Merges basic data (Check, ExecStatus) from another Binder but keeps its result. Used when a binder is replaced by another one, this allows to keep messages.

◆ NextResult()

occ::handle< Transfer_Binder > Transfer_Binder::NextResult ( ) const

Returns the next result, Null if none.

◆ ResultType()

virtual occ::handle< Standard_Type > Transfer_Binder::ResultType ( ) const

pure virtual

Returns the Type which characterizes the Result (if known)

Implemented in Transfer_MultipleBinder, Transfer_SimpleBinderOfTransient, Transfer_TransientListBinder, Transfer_VoidBinder, TransferBRep_BinderOfShape, and TransferBRep_ShapeListBinder.

◆ ResultTypeName()

virtual const char * Transfer_Binder::ResultTypeName ( ) const

pure virtual

Returns the Name of the Type which characterizes the Result Can be returned even if ResultType itself is unknown.

Implemented in Transfer_MultipleBinder, Transfer_SimpleBinderOfTransient, Transfer_TransientListBinder, Transfer_VoidBinder, TransferBRep_BinderOfShape, and TransferBRep_ShapeListBinder.

◆ SetAlreadyUsed()

void Transfer_Binder::SetAlreadyUsed ( )

Declares that result is now used by another one, it means that it cannot be modified (by Rebind)

◆ SetResultPresent()

void Transfer_Binder::SetResultPresent ( )

protected

Used to declare that a result is recorded for an individual transfer (works by setting StatusResult to Defined)

This Method is to be called once a Result is really recorded (see sub-classes of Binder, especially SimpleBinder) : it is senseless if called isolately

◆ SetStatusExec()

void Transfer_Binder::SetStatusExec ( const Transfer_StatusExec stat )

Modifies execution status; called by TransferProcess only (for StatusError, rather use SetError, below)

◆ Status()

Transfer_StatusResult Transfer_Binder::Status ( ) const

Returns status, which can be Initial (not yet done), Made (a result is recorded, not yet shared), Used (it is shared and cannot be modified)

◆ StatusExec()

Transfer_StatusExec Transfer_Binder::StatusExec ( ) const

Returns execution status.

The documentation for this class was generated from the following file:

Transfer_Binder.hxx
