Interface class representing discrete model of a face. Face model contains one or several wires. First wire is always outer one. More...

#include <IMeshData_Face.hxx>

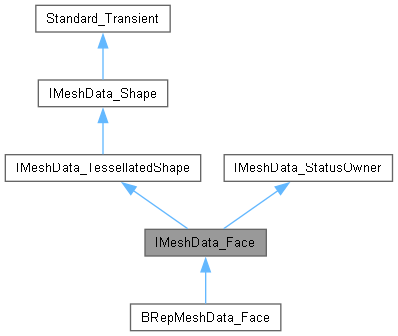

Inheritance diagram for IMeshData_Face:

[legend]

Public Member Functions
virtual	~IMeshData_Face ()
	Destructor.

virtual Standard_Integer	WiresNb () const =0
	Returns number of wires.

virtual const IMeshData::IWireHandle &	AddWire (const TopoDS_Wire &theWire, const Standard_Integer theEdgeNb=0)=0
	Adds wire to discrete model of face.

virtual const IMeshData::IWireHandle &	GetWire (const Standard_Integer theIndex) const =0
	Returns discrete edge with the given index.

const Handle< BRepAdaptor_Surface > &	GetSurface () const
	Returns face's surface.

const TopoDS_Face &	GetFace () const
	Returns TopoDS_Face attached to model.

Standard_Boolean	IsValid () const
	Returns whether the face discrete model is valid.

Public Member Functions inherited from IMeshData_TessellatedShape
virtual	~IMeshData_TessellatedShape ()
	Destructor.

Standard_Real	GetDeflection () const
	Gets deflection value for the discrete model.

void	SetDeflection (const Standard_Real theValue)
	Sets deflection value for the discrete model.

Public Member Functions inherited from IMeshData_Shape
virtual	~IMeshData_Shape ()
	Destructor.

void	SetShape (const TopoDS_Shape &theShape)
	Assigns shape to discrete shape.

const TopoDS_Shape &	GetShape () const
	Returns shape assigned to discrete shape.

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.

Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.

Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.

virtual void	Delete () const
	Memory deallocator for transient classes.

Public Member Functions inherited from IMeshData_StatusOwner
virtual	~IMeshData_StatusOwner ()
	Destructor.

Standard_Boolean	IsEqual (const IMeshData_Status theValue) const
	Returns true in case if status is strictly equal to the given value.

Standard_Boolean	IsSet (const IMeshData_Status theValue) const
	Returns true in case if status is set.

void	SetStatus (const IMeshData_Status theValue)
	Adds status to status flags of a face.

void	UnsetStatus (const IMeshData_Status theValue)
	Adds status to status flags of a face.

Standard_Integer	GetStatusMask () const
	Returns complete status mask.

Protected Member Functions
	IMeshData_Face (const TopoDS_Face &theFace)
	Constructor. Initializes empty model.

Protected Member Functions inherited from IMeshData_TessellatedShape
	IMeshData_TessellatedShape ()
	Constructor.

	IMeshData_TessellatedShape (const TopoDS_Shape &theShape)
	Constructor.

Protected Member Functions inherited from IMeshData_Shape
	IMeshData_Shape ()
	Constructor.

	IMeshData_Shape (const TopoDS_Shape &theShape)
	Constructor.

Protected Member Functions inherited from IMeshData_StatusOwner
	IMeshData_StatusOwner ()
	Constructor. Initializes default status.

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.

static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Interface class representing discrete model of a face. Face model contains one or several wires. First wire is always outer one.

Constructor & Destructor Documentation

◆ ~IMeshData_Face()

virtual IMeshData_Face::~IMeshData_Face ( )

inlinevirtual

Destructor.

◆ IMeshData_Face()

IMeshData_Face::IMeshData_Face ( const TopoDS_Face & theFace )

inlineprotected

Constructor. Initializes empty model.

Member Function Documentation

◆ AddWire()

virtual const IMeshData::IWireHandle & IMeshData_Face::AddWire	(	const TopoDS_Wire &	theWire,
		const Standard_Integer	theEdgeNb = 0 )

pure virtual

Adds wire to discrete model of face.

Implemented in BRepMeshData_Face.

◆ GetFace()

const TopoDS_Face & IMeshData_Face::GetFace ( ) const

inline

Returns TopoDS_Face attached to model.

◆ GetSurface()

const Handle< BRepAdaptor_Surface > & IMeshData_Face::GetSurface ( ) const

inline

Returns face's surface.

◆ GetWire()

virtual const IMeshData::IWireHandle & IMeshData_Face::GetWire ( const Standard_Integer theIndex ) const

pure virtual

Returns discrete edge with the given index.

Implemented in BRepMeshData_Face.

◆ IsValid()

Standard_Boolean IMeshData_Face::IsValid ( ) const

inline

Returns whether the face discrete model is valid.

◆ WiresNb()

virtual Standard_Integer IMeshData_Face::WiresNb ( ) const

pure virtual

Returns number of wires.

Implemented in BRepMeshData_Face.

The documentation for this class was generated from the following file:

IMeshData_Face.hxx
