Representation of STEP entity CubicBezierTriangulatedFace. More...

#include <StepVisual_CubicBezierTriangulatedFace.hxx>

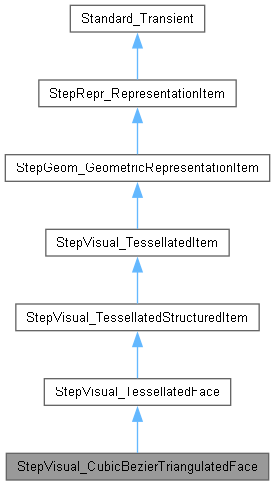

Inheritance diagram for StepVisual_CubicBezierTriangulatedFace:

[legend]

Public Member Functions
	StepVisual_CubicBezierTriangulatedFace ()
	default constructor

void	Init (const Handle< TCollection_HAsciiString > &theRepresentationItem_Name, const Handle< StepVisual_CoordinatesList > &theTessellatedFace_Coordinates, const Standard_Integer theTessellatedFace_Pnmax, const Handle< TColStd_HArray2OfReal > &theTessellatedFace_Normals, const Standard_Boolean theHasTessellatedFace_GeometricLink, const StepVisual_FaceOrSurface &theTessellatedFace_GeometricLink, const Handle< TColStd_HArray2OfInteger > &theCtriangles)
	Initialize all fields (own and inherited)

Handle< TColStd_HArray2OfInteger >	Ctriangles () const
	Returns field Ctriangles.

void	SetCtriangles (const Handle< TColStd_HArray2OfInteger > &theCtriangles)
	Sets field Ctriangles.

Standard_Integer	NbCtriangles () const
	Returns number of Ctriangles.

Public Member Functions inherited from StepVisual_TessellatedFace
	StepVisual_TessellatedFace ()
	default constructor

void	Init (const Handle< TCollection_HAsciiString > &theRepresentationItem_Name, const Handle< StepVisual_CoordinatesList > &theCoordinates, const Standard_Integer thePnmax, const Handle< TColStd_HArray2OfReal > &theNormals, const Standard_Boolean theHasGeometricLink, const StepVisual_FaceOrSurface &theGeometricLink)
	Initialize all fields (own and inherited)

Handle< StepVisual_CoordinatesList >	Coordinates () const
	Returns field Coordinates.

void	SetCoordinates (const Handle< StepVisual_CoordinatesList > &theCoordinates)
	Sets field Coordinates.

Standard_Integer	Pnmax () const
	Returns field Pnmax.

void	SetPnmax (const Standard_Integer thePnmax)
	Sets field Pnmax.

Handle< TColStd_HArray2OfReal >	Normals () const
	Returns field Normals.

void	SetNormals (const Handle< TColStd_HArray2OfReal > &theNormals)
	Sets field Normals.

Standard_Integer	NbNormals () const
	Returns number of Normals.

StepVisual_FaceOrSurface	GeometricLink () const
	Returns field GeometricLink.

void	SetGeometricLink (const StepVisual_FaceOrSurface &theGeometricLink)
	Sets field GeometricLink.

Standard_Boolean	HasGeometricLink () const
	Returns True if optional field GeometricLink is defined.

Public Member Functions inherited from StepVisual_TessellatedStructuredItem
	StepVisual_TessellatedStructuredItem ()
	default constructor

Public Member Functions inherited from StepVisual_TessellatedItem
	StepVisual_TessellatedItem ()
	Returns a DraughtingCalloutElement select type.

Public Member Functions inherited from StepGeom_GeometricRepresentationItem
	StepGeom_GeometricRepresentationItem ()
	Returns a GeometricRepresentationItem.

Public Member Functions inherited from StepRepr_RepresentationItem
	StepRepr_RepresentationItem ()
	Returns a RepresentationItem.

void	Init (const Handle< TCollection_HAsciiString > &aName)

void	SetName (const Handle< TCollection_HAsciiString > &aName)

Handle< TCollection_HAsciiString >	Name () const

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.

Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.

Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.

virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.

static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Representation of STEP entity CubicBezierTriangulatedFace.

Constructor & Destructor Documentation

◆ StepVisual_CubicBezierTriangulatedFace()

StepVisual_CubicBezierTriangulatedFace::StepVisual_CubicBezierTriangulatedFace ( )

default constructor

Member Function Documentation

◆ Ctriangles()

Handle< TColStd_HArray2OfInteger > StepVisual_CubicBezierTriangulatedFace::Ctriangles ( ) const

Returns field Ctriangles.

◆ Init()

void StepVisual_CubicBezierTriangulatedFace::Init	(	const Handle< TCollection_HAsciiString > &	theRepresentationItem_Name,
		const Handle< StepVisual_CoordinatesList > &	theTessellatedFace_Coordinates,
		const Standard_Integer	theTessellatedFace_Pnmax,
		const Handle< TColStd_HArray2OfReal > &	theTessellatedFace_Normals,
		const Standard_Boolean	theHasTessellatedFace_GeometricLink,
		const StepVisual_FaceOrSurface &	theTessellatedFace_GeometricLink,
		const Handle< TColStd_HArray2OfInteger > &	theCtriangles )

Initialize all fields (own and inherited)

◆ NbCtriangles()

Standard_Integer StepVisual_CubicBezierTriangulatedFace::NbCtriangles ( ) const

Returns number of Ctriangles.

◆ SetCtriangles()

void StepVisual_CubicBezierTriangulatedFace::SetCtriangles ( const Handle< TColStd_HArray2OfInteger > & theCtriangles )

Sets field Ctriangles.

The documentation for this class was generated from the following file:

StepVisual_CubicBezierTriangulatedFace.hxx
