Open CASCADE Technology  7.6.0
Public Member Functions | Protected Member Functions | Protected Attributes

BRepCheck_Result Class Referenceabstract

#include <BRepCheck_Result.hxx>

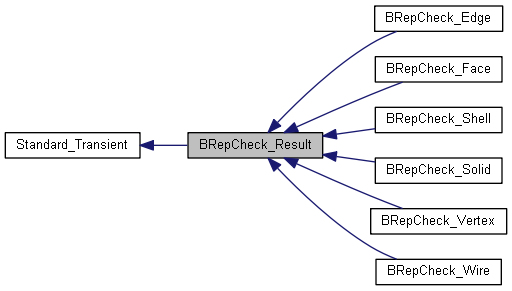

Inheritance diagram for BRepCheck_Result:
Inheritance graph
[legend]

Public Member Functions

void Init (const TopoDS_Shape &S)

virtual void InContext (const TopoDS_Shape &ContextShape)=0

virtual void Minimum ()=0

virtual void Blind ()=0

void SetFailStatus (const TopoDS_Shape &S)

const BRepCheck_ListOfStatusStatus () const

Standard_Boolean IsMinimum () const

Standard_Boolean IsBlind () const

void InitContextIterator ()

Standard_Boolean MoreShapeInContext () const

const TopoDS_ShapeContextualShape () const

const BRepCheck_ListOfStatusStatusOnShape () const

void NextShapeInContext ()

void SetParallel (Standard_Boolean theIsParallel)

Standard_Boolean IsStatusOnShape (const TopoDS_Shape &theShape) const

const BRepCheck_ListOfStatusStatusOnShape (const TopoDS_Shape &theShape) const

- Public Member Functions inherited from Standard_Transient
 Standard_Transient ()
 Empty constructor. More...

 Standard_Transient (const Standard_Transient &)
 Copy constructor – does nothing. More...

Standard_Transientoperator= (const Standard_Transient &)
 Assignment operator, needed to avoid copying reference counter. More...

virtual ~Standard_Transient ()
 Destructor must be virtual. More...

virtual void Delete () const
 Memory deallocator for transient classes. More...

virtual const opencascade::handle< Standard_Type > & DynamicType () const
 Returns a type descriptor about this object. More...

Standard_Boolean IsInstance (const opencascade::handle< Standard_Type > &theType) const
 Returns a true value if this is an instance of Type. More...

Standard_Boolean IsInstance (const Standard_CString theTypeName) const
 Returns a true value if this is an instance of TypeName. More...

Standard_Boolean IsKind (const opencascade::handle< Standard_Type > &theType) const
 Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism. More...

Standard_Boolean IsKind (const Standard_CString theTypeName) const
 Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism. More...

Standard_TransientThis () const
 Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero. More...

Standard_Integer GetRefCount () const
 Get the reference counter of this object. More...

void IncrementRefCounter () const
 Increments the reference counter of this object. More...

Standard_Integer DecrementRefCounter () const
 Decrements the reference counter of this object; returns the decremented value. More...


Protected Member Functions

 BRepCheck_Result ()


Protected Attributes

TopoDS_Shape myShape

Standard_Boolean myMin

Standard_Boolean myBlind

BRepCheck_DataMapOfShapeListOfStatus myMap

Handle< Standard_HMutexmyMutex


Additional Inherited Members

- Public Types inherited from Standard_Transient
typedef void base_type
 Returns a type descriptor about this object. More...

- Static Public Member Functions inherited from Standard_Transient
static const char * get_type_name ()
 Returns a type descriptor about this object. More...

static const opencascade::handle< Standard_Type > & get_type_descriptor ()
 Returns type descriptor of Standard_Transient class. More...


Constructor & Destructor Documentation

◆ BRepCheck_Result()

BRepCheck_Result::BRepCheck_Result ( )
protected

Member Function Documentation

◆ Blind()

virtual void BRepCheck_Result::Blind ( )
pure virtual

◆ ContextualShape()

const TopoDS_Shape& BRepCheck_Result::ContextualShape ( ) const
inline

◆ InContext()

virtual void BRepCheck_Result::InContext ( const TopoDS_Shape ContextShape)
pure virtual

◆ Init()

void BRepCheck_Result::Init ( const TopoDS_Shape S)

◆ InitContextIterator()

void BRepCheck_Result::InitContextIterator ( )

◆ IsBlind()

Standard_Boolean BRepCheck_Result::IsBlind ( ) const
inline

◆ IsMinimum()

Standard_Boolean BRepCheck_Result::IsMinimum ( ) const
inline

◆ IsStatusOnShape()

Standard_Boolean BRepCheck_Result::IsStatusOnShape ( const TopoDS_Shape theShape) const
inline

◆ Minimum()

virtual void BRepCheck_Result::Minimum ( )
pure virtual

◆ MoreShapeInContext()

Standard_Boolean BRepCheck_Result::MoreShapeInContext ( ) const
inline

◆ NextShapeInContext()

void BRepCheck_Result::NextShapeInContext ( )

◆ SetFailStatus()

void BRepCheck_Result::SetFailStatus ( const TopoDS_Shape S)

◆ SetParallel()

void BRepCheck_Result::SetParallel ( Standard_Boolean  theIsParallel)

◆ Status()

const BRepCheck_ListOfStatus& BRepCheck_Result::Status ( ) const
inline

◆ StatusOnShape() [1/2]

const BRepCheck_ListOfStatus& BRepCheck_Result::StatusOnShape ( ) const
inline

◆ StatusOnShape() [2/2]

const BRepCheck_ListOfStatus& BRepCheck_Result::StatusOnShape ( const TopoDS_Shape theShape) const
inline

Field Documentation

◆ myBlind

Standard_Boolean BRepCheck_Result::myBlind
protected

◆ myMap

BRepCheck_DataMapOfShapeListOfStatus BRepCheck_Result::myMap
protected

◆ myMin

Standard_Boolean BRepCheck_Result::myMin
protected

◆ myMutex

Handle< Standard_HMutex > BRepCheck_Result::myMutex
mutableprotected

◆ myShape

TopoDS_Shape BRepCheck_Result::myShape
protected

The documentation for this class was generated from the following file:
