GeomFill_Boundary Class Reference

Root class to define a boundary which will form part of a contour around a gap requiring filling. Any new type of constrained boundary must inherit this class. The GeomFill package provides two classes to define constrained boundaries: More...

#include <GeomFill_Boundary.hxx>

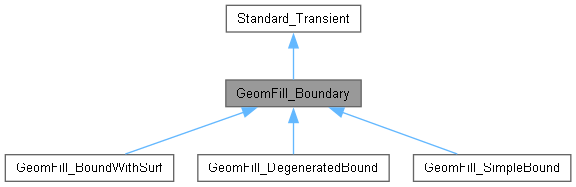

Inheritance diagram for GeomFill_Boundary:

Public Member Functions
virtual gp_Pnt	Value (const Standard_Real U) const =0
virtual void	D1 (const Standard_Real U, gp_Pnt &P, gp_Vec &V) const =0
virtual Standard_Boolean	HasNormals () const
virtual gp_Vec	Norm (const Standard_Real U) const
virtual void	D1Norm (const Standard_Real U, gp_Vec &N, gp_Vec &DN) const
virtual void	Reparametrize (const Standard_Real First, const Standard_Real Last, const Standard_Boolean HasDF, const Standard_Boolean HasDL, const Standard_Real DF, const Standard_Real DL, const Standard_Boolean Rev)=0
void	Points (gp_Pnt &PFirst, gp_Pnt &PLast) const
virtual void	Bounds (Standard_Real &First, Standard_Real &Last) const =0
virtual Standard_Boolean	IsDegenerated () const =0
Standard_Real	Tol3d () const
void	Tol3d (const Standard_Real Tol)
Standard_Real	Tolang () const
void	Tolang (const Standard_Real Tol)
Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.
	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.
Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.
virtual	~Standard_Transient ()
	Destructor must be virtual.
virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.
Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.
Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.
Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.
Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.
void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.
Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.
virtual void	Delete () const
	Memory deallocator for transient classes.

Protected Member Functions
	GeomFill_Boundary (const Standard_Real Tol3d, const Standard_Real Tolang)

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.
static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Root class to define a boundary which will form part of a contour around a gap requiring filling. Any new type of constrained boundary must inherit this class. The GeomFill package provides two classes to define constrained boundaries:

• GeomFill_SimpleBound to define an unattached boundary
• GeomFill_BoundWithSurf to define a boundary attached to a surface. These objects are used to define the boundaries for a GeomFill_ConstrainedFilling framework.

Constructor & Destructor Documentation

GeomFill_Boundary()

GeomFill_Boundary::GeomFill_Boundary ( const Standard_Real Tol3d, const Standard_Real Tolang )

protected

Member Function Documentation

Bounds()

virtual void GeomFill_Boundary::Bounds ( Standard_Real & First, Standard_Real & Last ) const

pure virtual

Implemented in GeomFill_BoundWithSurf, GeomFill_DegeneratedBound, and GeomFill_SimpleBound.

D1()

virtual void GeomFill_Boundary::D1 ( const Standard_Real U, gp_Pnt & P, gp_Vec & V ) const

pure virtual

Implemented in GeomFill_BoundWithSurf, GeomFill_DegeneratedBound, and GeomFill_SimpleBound.

D1Norm()

virtual void GeomFill_Boundary::D1Norm ( const Standard_Real U, gp_Vec & N, gp_Vec & DN ) const

virtual

Reimplemented in GeomFill_BoundWithSurf.

HasNormals()

virtual Standard_Boolean GeomFill_Boundary::HasNormals ( ) const

virtual

Reimplemented in GeomFill_BoundWithSurf.

IsDegenerated()

virtual Standard_Boolean GeomFill_Boundary::IsDegenerated ( ) const

pure virtual

Implemented in GeomFill_BoundWithSurf, GeomFill_DegeneratedBound, and GeomFill_SimpleBound.

Norm()

virtual gp_Vec GeomFill_Boundary::Norm ( const Standard_Real U ) const

virtual

Reimplemented in GeomFill_BoundWithSurf.

Points()

void GeomFill_Boundary::Points	(	gp_Pnt &	PFirst,
		gp_Pnt &	PLast ) const

Reparametrize()

virtual void GeomFill_Boundary::Reparametrize ( const Standard_Real First, const Standard_Real Last, const Standard_Boolean HasDF, const Standard_Boolean HasDL, const Standard_Real DF, const Standard_Real DL, const Standard_Boolean Rev )

pure virtual

Implemented in GeomFill_BoundWithSurf, GeomFill_DegeneratedBound, and GeomFill_SimpleBound.

Tol3d() [1/2]

Standard_Real GeomFill_Boundary::Tol3d

(

)

const

Tol3d() [2/2]

void GeomFill_Boundary::Tol3d

(

const Standard_Real

Tol

)

Tolang() [1/2]

Standard_Real GeomFill_Boundary::Tolang

(

)

const

Tolang() [2/2]

void GeomFill_Boundary::Tolang

(

const Standard_Real

Tol

)

Value()

virtual gp_Pnt GeomFill_Boundary::Value ( const Standard_Real U ) const

pure virtual

Implemented in GeomFill_BoundWithSurf, GeomFill_DegeneratedBound, and GeomFill_SimpleBound.

---

The documentation for this class was generated from the following file:

• GeomFill_Boundary.hxx
