Root class for the curve representations. Contains a location. More...

#include <BRep_CurveRepresentation.hxx>

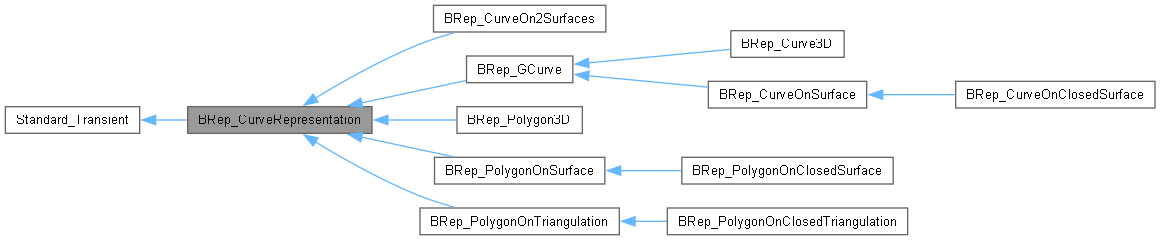

Inheritance diagram for BRep_CurveRepresentation:

[legend]

Public Member Functions
virtual bool	IsCurve3D () const
	A 3D curve representation.

virtual bool	IsCurveOnSurface () const
	A curve in the parametric space of a surface.

virtual bool	IsRegularity () const
	A continuity between two surfaces.

virtual bool	IsCurveOnClosedSurface () const
	A curve with two parametric curves on the same surface.

virtual bool	IsCurveOnSurface (const occ::handle< Geom_Surface > &S, const TopLoc_Location &L) const
	Is it a curve in the parametric space of ~~with location <L>.~~

virtual bool	IsRegularity (const occ::handle< Geom_Surface > &S1, const occ::handle< Geom_Surface > &S2, const TopLoc_Location &L1, const TopLoc_Location &L2) const
	Is it a regularity between <S1> and <S2> with location <L1> and <L2>.

virtual bool	IsPolygon3D () const
	A 3D polygon representation.

virtual bool	IsPolygonOnTriangulation () const
	A representation by an array of nodes on a triangulation.

virtual bool	IsPolygonOnTriangulation (const occ::handle< Poly_Triangulation > &T, const TopLoc_Location &L) const
	Is it a polygon in the definition of <T> with location <L>.

virtual bool	IsPolygonOnClosedTriangulation () const
	A representation by two arrays of nodes on a triangulation.

virtual bool	IsPolygonOnSurface () const
	A polygon in the parametric space of a surface.

virtual bool	IsPolygonOnSurface (const occ::handle< Geom_Surface > &S, const TopLoc_Location &L) const
	Is it a polygon in the parametric space of ~~with location <L>.~~

virtual bool	IsPolygonOnClosedSurface () const
	Two 2D polygon representations in the parametric space of a surface.

const TopLoc_Location &	Location () const

void	Location (const TopLoc_Location &L)

virtual const occ::handle< Geom_Curve > &	Curve3D () const

virtual void	Curve3D (const occ::handle< Geom_Curve > &C)

virtual const occ::handle< Geom_Surface > &	Surface () const

virtual const occ::handle< Geom2d_Curve > &	PCurve () const

virtual void	PCurve (const occ::handle< Geom2d_Curve > &C)

virtual const occ::handle< Geom2d_Curve > &	PCurve2 () const

virtual void	PCurve2 (const occ::handle< Geom2d_Curve > &C)

virtual const occ::handle< Poly_Polygon3D > &	Polygon3D () const

virtual void	Polygon3D (const occ::handle< Poly_Polygon3D > &P)

virtual const occ::handle< Poly_Polygon2D > &	Polygon () const

virtual void	Polygon (const occ::handle< Poly_Polygon2D > &P)

virtual const occ::handle< Poly_Polygon2D > &	Polygon2 () const

virtual void	Polygon2 (const occ::handle< Poly_Polygon2D > &P)

virtual const occ::handle< Poly_Triangulation > &	Triangulation () const

virtual const occ::handle< Poly_PolygonOnTriangulation > &	PolygonOnTriangulation () const

virtual void	PolygonOnTriangulation (const occ::handle< Poly_PolygonOnTriangulation > &P)

virtual const occ::handle< Poly_PolygonOnTriangulation > &	PolygonOnTriangulation2 () const

virtual void	PolygonOnTriangulation2 (const occ::handle< Poly_PolygonOnTriangulation > &P2)

virtual const occ::handle< Geom_Surface > &	Surface2 () const

virtual const TopLoc_Location &	Location2 () const

virtual const GeomAbs_Shape &	Continuity () const

virtual void	Continuity (const GeomAbs_Shape C)

virtual occ::handle< BRep_CurveRepresentation >	Copy () const =0
	Return a copy of this representation.

virtual void	DumpJson (Standard_OStream &theOStream, int theDepth=-1) const
	Dumps the content of me into the stream.

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()=default
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.

bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

int	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.

int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.

virtual void	Delete () const
	Memory deallocator for transient classes.

Protected Member Functions
	BRep_CurveRepresentation (const TopLoc_Location &L)

Protected Attributes
TopLoc_Location	myLocation

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Root class for the curve representations. Contains a location.

Constructor & Destructor Documentation

◆ BRep_CurveRepresentation()

BRep_CurveRepresentation::BRep_CurveRepresentation ( const TopLoc_Location & L )

protected

Member Function Documentation

◆ Continuity() [1/2]

virtual const GeomAbs_Shape & BRep_CurveRepresentation::Continuity ( ) const

virtual

Reimplemented in BRep_CurveOn2Surfaces, and BRep_CurveOnClosedSurface.

◆ Continuity() [2/2]

virtual void BRep_CurveRepresentation::Continuity ( const GeomAbs_Shape C )

virtual

Reimplemented in BRep_CurveOn2Surfaces, and BRep_CurveOnClosedSurface.

◆ Copy()

virtual occ::handle< BRep_CurveRepresentation > BRep_CurveRepresentation::Copy ( ) const

pure virtual

Return a copy of this representation.

Implemented in BRep_Curve3D, BRep_CurveOn2Surfaces, BRep_CurveOnClosedSurface, BRep_CurveOnSurface, BRep_Polygon3D, BRep_PolygonOnClosedSurface, BRep_PolygonOnClosedTriangulation, BRep_PolygonOnSurface, and BRep_PolygonOnTriangulation.

◆ Curve3D() [1/2]

virtual const occ::handle< Geom_Curve > & BRep_CurveRepresentation::Curve3D ( ) const

virtual

Reimplemented in BRep_Curve3D.

◆ Curve3D() [2/2]

virtual void BRep_CurveRepresentation::Curve3D ( const occ::handle< Geom_Curve > & C )

virtual

Reimplemented in BRep_Curve3D.

◆ DumpJson()

virtual void BRep_CurveRepresentation::DumpJson	(	Standard_OStream &	theOStream,
		int	theDepth = -1 ) const

virtual

Dumps the content of me into the stream.

Reimplemented in BRep_Curve3D, BRep_CurveOn2Surfaces, BRep_CurveOnClosedSurface, BRep_CurveOnSurface, BRep_GCurve, BRep_Polygon3D, BRep_PolygonOnClosedSurface, BRep_PolygonOnClosedTriangulation, BRep_PolygonOnSurface, and BRep_PolygonOnTriangulation.

◆ IsCurve3D()

virtual bool BRep_CurveRepresentation::IsCurve3D ( ) const

virtual

A 3D curve representation.

Reimplemented in BRep_Curve3D.

◆ IsCurveOnClosedSurface()

virtual bool BRep_CurveRepresentation::IsCurveOnClosedSurface ( ) const

virtual

A curve with two parametric curves on the same surface.

Reimplemented in BRep_CurveOnClosedSurface.

◆ IsCurveOnSurface() [1/2]

virtual bool BRep_CurveRepresentation::IsCurveOnSurface ( ) const

virtual

A curve in the parametric space of a surface.

Reimplemented in BRep_CurveOnSurface.

◆ IsCurveOnSurface() [2/2]

virtual bool BRep_CurveRepresentation::IsCurveOnSurface	(	const occ::handle< Geom_Surface > &	S,
		const TopLoc_Location &	L ) const

virtual

Is it a curve in the parametric space of ~~with location <L>.~~

Reimplemented in BRep_CurveOnSurface.

◆ IsPolygon3D()

virtual bool BRep_CurveRepresentation::IsPolygon3D ( ) const

virtual

A 3D polygon representation.

Reimplemented in BRep_Polygon3D.

◆ IsPolygonOnClosedSurface()

virtual bool BRep_CurveRepresentation::IsPolygonOnClosedSurface ( ) const

virtual

Two 2D polygon representations in the parametric space of a surface.

Reimplemented in BRep_PolygonOnClosedSurface.

◆ IsPolygonOnClosedTriangulation()

virtual bool BRep_CurveRepresentation::IsPolygonOnClosedTriangulation ( ) const

virtual

A representation by two arrays of nodes on a triangulation.

Reimplemented in BRep_PolygonOnClosedTriangulation.

◆ IsPolygonOnSurface() [1/2]

virtual bool BRep_CurveRepresentation::IsPolygonOnSurface ( ) const

virtual

A polygon in the parametric space of a surface.

Reimplemented in BRep_PolygonOnSurface.

◆ IsPolygonOnSurface() [2/2]

virtual bool BRep_CurveRepresentation::IsPolygonOnSurface	(	const occ::handle< Geom_Surface > &	S,
		const TopLoc_Location &	L ) const

virtual

Is it a polygon in the parametric space of ~~with location <L>.~~

Reimplemented in BRep_PolygonOnSurface.

◆ IsPolygonOnTriangulation() [1/2]

virtual bool BRep_CurveRepresentation::IsPolygonOnTriangulation ( ) const

virtual

A representation by an array of nodes on a triangulation.

Reimplemented in BRep_PolygonOnTriangulation.

◆ IsPolygonOnTriangulation() [2/2]

virtual bool BRep_CurveRepresentation::IsPolygonOnTriangulation	(	const occ::handle< Poly_Triangulation > &	T,
		const TopLoc_Location &	L ) const

virtual

Is it a polygon in the definition of <T> with location <L>.

Reimplemented in BRep_PolygonOnTriangulation.

◆ IsRegularity() [1/2]

virtual bool BRep_CurveRepresentation::IsRegularity ( ) const

virtual

A continuity between two surfaces.

Reimplemented in BRep_CurveOn2Surfaces, and BRep_CurveOnClosedSurface.

◆ IsRegularity() [2/2]

virtual bool BRep_CurveRepresentation::IsRegularity	(	const occ::handle< Geom_Surface > &	S1,
		const occ::handle< Geom_Surface > &	S2,
		const TopLoc_Location &	L1,
		const TopLoc_Location &	L2 ) const

virtual

Is it a regularity between <S1> and <S2> with location <L1> and <L2>.

Reimplemented in BRep_CurveOn2Surfaces, and BRep_CurveOnClosedSurface.

◆ Location() [1/2]

const TopLoc_Location & BRep_CurveRepresentation::Location ( ) const

◆ Location() [2/2]

void BRep_CurveRepresentation::Location ( const TopLoc_Location & L )

◆ Location2()

virtual const TopLoc_Location & BRep_CurveRepresentation::Location2 ( ) const

virtual

Reimplemented in BRep_CurveOn2Surfaces, and BRep_CurveOnClosedSurface.

◆ PCurve() [1/2]

virtual const occ::handle< Geom2d_Curve > & BRep_CurveRepresentation::PCurve ( ) const

virtual

Reimplemented in BRep_CurveOnSurface.

◆ PCurve() [2/2]

virtual void BRep_CurveRepresentation::PCurve ( const occ::handle< Geom2d_Curve > & C )

virtual

Reimplemented in BRep_CurveOnSurface.

◆ PCurve2() [1/2]

virtual const occ::handle< Geom2d_Curve > & BRep_CurveRepresentation::PCurve2 ( ) const

virtual

Reimplemented in BRep_CurveOnClosedSurface.

◆ PCurve2() [2/2]

virtual void BRep_CurveRepresentation::PCurve2 ( const occ::handle< Geom2d_Curve > & C )

virtual

Reimplemented in BRep_CurveOnClosedSurface.

◆ Polygon() [1/2]

virtual const occ::handle< Poly_Polygon2D > & BRep_CurveRepresentation::Polygon ( ) const

virtual

Reimplemented in BRep_PolygonOnSurface.

◆ Polygon() [2/2]

virtual void BRep_CurveRepresentation::Polygon ( const occ::handle< Poly_Polygon2D > & P )

virtual

Reimplemented in BRep_PolygonOnSurface.

◆ Polygon2() [1/2]

virtual const occ::handle< Poly_Polygon2D > & BRep_CurveRepresentation::Polygon2 ( ) const

virtual

Reimplemented in BRep_PolygonOnClosedSurface.

◆ Polygon2() [2/2]

virtual void BRep_CurveRepresentation::Polygon2 ( const occ::handle< Poly_Polygon2D > & P )

virtual

Reimplemented in BRep_PolygonOnClosedSurface.

◆ Polygon3D() [1/2]

virtual const occ::handle< Poly_Polygon3D > & BRep_CurveRepresentation::Polygon3D ( ) const

virtual

Reimplemented in BRep_Polygon3D.

◆ Polygon3D() [2/2]

virtual void BRep_CurveRepresentation::Polygon3D ( const occ::handle< Poly_Polygon3D > & P )

virtual

Reimplemented in BRep_Polygon3D.

◆ PolygonOnTriangulation() [1/2]

virtual const occ::handle< Poly_PolygonOnTriangulation > & BRep_CurveRepresentation::PolygonOnTriangulation ( ) const

virtual

Reimplemented in BRep_PolygonOnTriangulation.

◆ PolygonOnTriangulation() [2/2]

virtual void BRep_CurveRepresentation::PolygonOnTriangulation ( const occ::handle< Poly_PolygonOnTriangulation > & P )

virtual

Reimplemented in BRep_PolygonOnTriangulation.

◆ PolygonOnTriangulation2() [1/2]

virtual const occ::handle< Poly_PolygonOnTriangulation > & BRep_CurveRepresentation::PolygonOnTriangulation2 ( ) const

virtual

Reimplemented in BRep_PolygonOnClosedTriangulation.

◆ PolygonOnTriangulation2() [2/2]

virtual void BRep_CurveRepresentation::PolygonOnTriangulation2 ( const occ::handle< Poly_PolygonOnTriangulation > & P2 )

virtual

Reimplemented in BRep_PolygonOnClosedTriangulation.

◆ Surface()

virtual const occ::handle< Geom_Surface > & BRep_CurveRepresentation::Surface ( ) const

virtual

Reimplemented in BRep_CurveOn2Surfaces, BRep_CurveOnSurface, and BRep_PolygonOnSurface.

◆ Surface2()

virtual const occ::handle< Geom_Surface > & BRep_CurveRepresentation::Surface2 ( ) const

virtual

Reimplemented in BRep_CurveOn2Surfaces, and BRep_CurveOnClosedSurface.

◆ Triangulation()

virtual const occ::handle< Poly_Triangulation > & BRep_CurveRepresentation::Triangulation ( ) const

virtual

Reimplemented in BRep_PolygonOnTriangulation.

Field Documentation

◆ myLocation

TopLoc_Location BRep_CurveRepresentation::myLocation

protected

The documentation for this class was generated from the following file:

BRep_CurveRepresentation.hxx

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BRep_CurveRepresentation()

Member Function Documentation

◆ Continuity() [1/2]

◆ Continuity() [2/2]

◆ Copy()

◆ Curve3D() [1/2]

◆ Curve3D() [2/2]

◆ DumpJson()

◆ IsCurve3D()

◆ IsCurveOnClosedSurface()

◆ IsCurveOnSurface() [1/2]

◆ IsCurveOnSurface() [2/2]

◆ IsPolygon3D()

◆ IsPolygonOnClosedSurface()

◆ IsPolygonOnClosedTriangulation()

◆ IsPolygonOnSurface() [1/2]

◆ IsPolygonOnSurface() [2/2]

◆ IsPolygonOnTriangulation() [1/2]

◆ IsPolygonOnTriangulation() [2/2]

◆ IsRegularity() [1/2]

◆ IsRegularity() [2/2]

◆ Location() [1/2]

◆ Location() [2/2]

◆ Location2()

◆ PCurve() [1/2]

◆ PCurve() [2/2]

◆ PCurve2() [1/2]

◆ PCurve2() [2/2]

◆ Polygon() [1/2]

◆ Polygon() [2/2]

◆ Polygon2() [1/2]

◆ Polygon2() [2/2]

◆ Polygon3D() [1/2]

◆ Polygon3D() [2/2]

◆ PolygonOnTriangulation() [1/2]

◆ PolygonOnTriangulation() [2/2]

◆ PolygonOnTriangulation2() [1/2]

◆ PolygonOnTriangulation2() [2/2]

◆ Surface()

◆ Surface2()

◆ Triangulation()

Field Documentation

◆ myLocation
