Base class to work with CAD transfer properties. Stores the necessary settings for a single Provider type. Configures and creates special provider to transfer CAD files. More...

#include <DE_ConfigurationNode.hxx>

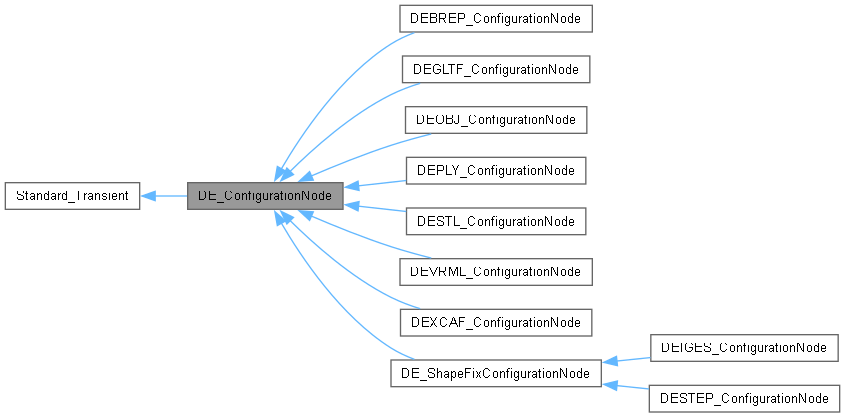

Inheritance diagram for DE_ConfigurationNode:

[legend]

Data Structures
struct	DE_SectionGlobal
	< Internal parameters for transfer process More...

Public Member Functions
	DE_ConfigurationNode ()
	Initializes all field by default.

	DE_ConfigurationNode (const occ::handle< DE_ConfigurationNode > &theConfigurationNode)
	Copies values of all fields.

virtual bool	Load (const TCollection_AsciiString &theResourcePath="")
	Updates values according the resource file.

virtual bool	Load (const occ::handle< DE_ConfigurationContext > &theResource)=0
	Updates values according the resource.

bool	Save (const TCollection_AsciiString &theResourcePath) const
	Writes configuration to the resource file.

virtual TCollection_AsciiString	Save () const =0
	Writes configuration to the string.

virtual occ::handle< DE_Provider >	BuildProvider ()=0
	Creates new provider for the own format.

virtual occ::handle< DE_ConfigurationNode >	Copy () const =0
	Copies values of all fields.

virtual bool	UpdateLoad (const bool theToImport, const bool theToKeep)
	Update loading status. Checking for the ability to read and write.

virtual bool	IsImportSupported () const
	Checks for import support.

virtual bool	IsExportSupported () const
	Checks for export support.

virtual bool	IsStreamSupported () const
	Checks for stream support.

virtual TCollection_AsciiString	GetFormat () const =0
	Gets CAD format name of associated provider.

virtual TCollection_AsciiString	GetVendor () const =0
	Gets provider's vendor name of associated provider.

virtual NCollection_List< TCollection_AsciiString >	GetExtensions () const =0
	Gets list of supported file extensions.

virtual bool	CheckExtension (const TCollection_AsciiString &theExtension) const
	Checks the file extension to verify a format.

virtual bool	CheckContent (const occ::handle< NCollection_Buffer > &theBuffer) const
	Checks the file content to verify a format.

bool	IsEnabled () const
	Gets the provider loading status.

void	SetEnabled (const bool theIsLoaded)
	Sets the provider loading status.

virtual void	CustomActivation (const NCollection_List< TCollection_AsciiString > &)
	Custom function to activate commercial DE component. The input is special sequence of values that described in specific component documentation. Order is important. Each component can have own way of activation.

virtual void	Register (const occ::handle< DE_Wrapper > &theWrapper) const
	Registers configuration node with the specified wrapper.

virtual void	UnRegister (const occ::handle< DE_Wrapper > &theWrapper) const
	Unregisters configuration node from the specified wrapper.

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()=default
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.

bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

int	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.

int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.

virtual void	Delete () const
	Memory deallocator for transient classes.

Data Fields
struct DE_ConfigurationNode::DE_SectionGlobal	GlobalParameters

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Base class to work with CAD transfer properties. Stores the necessary settings for a single Provider type. Configures and creates special provider to transfer CAD files.

Nodes are grouped by Vendor's name and Format type. The Vendor name is not defined by default. The Format type is not defined by default. The supported CAD extensions are not defined by default. The import process is not supported. The export process is not supported.

The algorithm for standalone transfer operation: 1) Create new empty Node object 2) Configure the current Node 2.1) Use the external resource file to configure (Load) 2.2) Change the internal parameters directly: 2.2.1) Change field values of "GlobalParameters" 2.2.2) Change field values of "InternalParameters" 3) Create one-time transfer provider (BuildProvider) 4) Initiate the transfer process: 4.1) Import (if "::IsImportSupported: returns TRUE) 4.1.1) Validate the support of input format (::CheckContent or ::CheckExtension) 4.1.2) Use created provider's "::Read" method 4.2) Export (if "IsExportSupported: returns TRUE) 4.2.1) Use created provider's "::Write" method 5) Check the provider's output

Constructor & Destructor Documentation

◆ DE_ConfigurationNode() [1/2]

DE_ConfigurationNode::DE_ConfigurationNode ( )

Initializes all field by default.

◆ DE_ConfigurationNode() [2/2]

DE_ConfigurationNode::DE_ConfigurationNode ( const occ::handle< DE_ConfigurationNode > & theConfigurationNode )

Copies values of all fields.

Parameters

[in] theConfigurationNode object to copy

Member Function Documentation

◆ BuildProvider()

virtual occ::handle< DE_Provider > DE_ConfigurationNode::BuildProvider ( )

pure virtual

Creates new provider for the own format.

Returns: new created provider

Implemented in DEBREP_ConfigurationNode, DEXCAF_ConfigurationNode, DEGLTF_ConfigurationNode, DEIGES_ConfigurationNode, DEOBJ_ConfigurationNode, DEPLY_ConfigurationNode, DESTEP_ConfigurationNode, DESTL_ConfigurationNode, and DEVRML_ConfigurationNode.

◆ CheckContent()

virtual bool DE_ConfigurationNode::CheckContent ( const occ::handle< NCollection_Buffer > & theBuffer ) const

virtual

Checks the file content to verify a format.

Parameters

[in] theBuffer read stream buffer to check content

Returns: true if file is supported by a current provider

Reimplemented in DEBREP_ConfigurationNode, DEXCAF_ConfigurationNode, DEIGES_ConfigurationNode, DEPLY_ConfigurationNode, DESTEP_ConfigurationNode, and DESTL_ConfigurationNode.

◆ CheckExtension()

virtual bool DE_ConfigurationNode::CheckExtension ( const TCollection_AsciiString & theExtension ) const

virtual

Checks the file extension to verify a format.

Parameters

[in] theExtension input file extension

Returns: true if file is supported by a current provider

◆ Copy()

virtual occ::handle< DE_ConfigurationNode > DE_ConfigurationNode::Copy ( ) const

pure virtual

Copies values of all fields.

Returns: new object with the same field values

Implemented in DEBREP_ConfigurationNode, DEXCAF_ConfigurationNode, DEGLTF_ConfigurationNode, DEIGES_ConfigurationNode, DEOBJ_ConfigurationNode, DEPLY_ConfigurationNode, DESTEP_ConfigurationNode, DESTL_ConfigurationNode, and DEVRML_ConfigurationNode.

◆ CustomActivation()

virtual void DE_ConfigurationNode::CustomActivation ( const NCollection_List< TCollection_AsciiString > & )

inlinevirtual

Custom function to activate commercial DE component. The input is special sequence of values that described in specific component documentation. Order is important. Each component can have own way of activation.

The main goal - real-time loading plug-in activation. OpenSource components don't need to have activation process.

◆ GetExtensions()

virtual NCollection_List< TCollection_AsciiString > DE_ConfigurationNode::GetExtensions ( ) const

pure virtual

Gets list of supported file extensions.

Returns: list of extensions

Implemented in DEBREP_ConfigurationNode, DEXCAF_ConfigurationNode, DEGLTF_ConfigurationNode, DEIGES_ConfigurationNode, DEOBJ_ConfigurationNode, DEPLY_ConfigurationNode, DESTEP_ConfigurationNode, DESTL_ConfigurationNode, and DEVRML_ConfigurationNode.

◆ GetFormat()

virtual TCollection_AsciiString DE_ConfigurationNode::GetFormat ( ) const

pure virtual

Gets CAD format name of associated provider.

Returns: provider CAD format

Implemented in DEBREP_ConfigurationNode, DEXCAF_ConfigurationNode, DEGLTF_ConfigurationNode, DEIGES_ConfigurationNode, DEOBJ_ConfigurationNode, DEPLY_ConfigurationNode, DESTEP_ConfigurationNode, DESTL_ConfigurationNode, and DEVRML_ConfigurationNode.

◆ GetVendor()

virtual TCollection_AsciiString DE_ConfigurationNode::GetVendor ( ) const

pure virtual

Gets provider's vendor name of associated provider.

Returns: provider's vendor name

Implemented in DEBREP_ConfigurationNode, DEXCAF_ConfigurationNode, DEGLTF_ConfigurationNode, DEIGES_ConfigurationNode, DEOBJ_ConfigurationNode, DEPLY_ConfigurationNode, DESTEP_ConfigurationNode, DESTL_ConfigurationNode, and DEVRML_ConfigurationNode.

◆ IsEnabled()

bool DE_ConfigurationNode::IsEnabled ( ) const

inline

Gets the provider loading status.

Returns: true if the load is correct

◆ IsExportSupported()

virtual bool DE_ConfigurationNode::IsExportSupported ( ) const

virtual

Checks for export support.

Returns: true if export is supported

Reimplemented in DEBREP_ConfigurationNode, DEXCAF_ConfigurationNode, DEGLTF_ConfigurationNode, DEIGES_ConfigurationNode, DEOBJ_ConfigurationNode, DEPLY_ConfigurationNode, DESTEP_ConfigurationNode, DESTL_ConfigurationNode, and DEVRML_ConfigurationNode.

◆ IsImportSupported()

virtual bool DE_ConfigurationNode::IsImportSupported ( ) const

virtual

Checks for import support.

Returns: true if import is supported

Reimplemented in DEBREP_ConfigurationNode, DEXCAF_ConfigurationNode, DEGLTF_ConfigurationNode, DEIGES_ConfigurationNode, DEOBJ_ConfigurationNode, DEPLY_ConfigurationNode, DESTEP_ConfigurationNode, DESTL_ConfigurationNode, and DEVRML_ConfigurationNode.

◆ IsStreamSupported()

virtual bool DE_ConfigurationNode::IsStreamSupported ( ) const

virtual

Checks for stream support.

Returns: true if streams are supported

Reimplemented in DESTEP_ConfigurationNode, DESTL_ConfigurationNode, and DEVRML_ConfigurationNode.

◆ Load() [1/2]

virtual bool DE_ConfigurationNode::Load ( const occ::handle< DE_ConfigurationContext > & theResource )

pure virtual

Updates values according the resource.

Parameters

[in] theResource input resource to use

Returns: True if Load was successful

Implemented in DE_ShapeFixConfigurationNode, DEBREP_ConfigurationNode, DEXCAF_ConfigurationNode, DEGLTF_ConfigurationNode, DEIGES_ConfigurationNode, DEOBJ_ConfigurationNode, DEPLY_ConfigurationNode, DESTEP_ConfigurationNode, DESTL_ConfigurationNode, and DEVRML_ConfigurationNode.

◆ Load() [2/2]

virtual bool DE_ConfigurationNode::Load ( const TCollection_AsciiString & theResourcePath = "" )

virtual

Updates values according the resource file.

Parameters

[in] theResourcePath file path to resource

Returns: True if Load was successful

◆ Register()

virtual void DE_ConfigurationNode::Register ( const occ::handle< DE_Wrapper > & theWrapper ) const

virtual

Registers configuration node with the specified wrapper.

Parameters

[in] theWrapper wrapper to register with

◆ Save() [1/2]

virtual TCollection_AsciiString DE_ConfigurationNode::Save ( ) const

pure virtual

Writes configuration to the string.

Returns: result resource string

Implemented in DE_ShapeFixConfigurationNode, DEBREP_ConfigurationNode, DEXCAF_ConfigurationNode, DEGLTF_ConfigurationNode, DEIGES_ConfigurationNode, DEOBJ_ConfigurationNode, DEPLY_ConfigurationNode, DESTEP_ConfigurationNode, DESTL_ConfigurationNode, and DEVRML_ConfigurationNode.

◆ Save() [2/2]

bool DE_ConfigurationNode::Save ( const TCollection_AsciiString & theResourcePath ) const

Writes configuration to the resource file.

Parameters

[in] theResourcePath file path to resource

Returns: True if Save was successful

◆ SetEnabled()

void DE_ConfigurationNode::SetEnabled ( const bool theIsLoaded )

inline

Sets the provider loading status.

Parameters

[in] theIsLoaded input load status

◆ UnRegister()

virtual void DE_ConfigurationNode::UnRegister ( const occ::handle< DE_Wrapper > & theWrapper ) const

virtual

Unregisters configuration node from the specified wrapper.

Parameters

[in] theWrapper wrapper to unregister from

◆ UpdateLoad()

virtual bool DE_ConfigurationNode::UpdateLoad	(	const bool	theToImport,
		const bool	theToKeep )

virtual

Update loading status. Checking for the ability to read and write.

Parameters

[in]	theToImport	flag to updates for import. true-import, false-export
[in]	theToKeep	flag to save update result

Returns: true, if node can be used

Field Documentation

◆ GlobalParameters

struct DE_ConfigurationNode::DE_SectionGlobal DE_ConfigurationNode::GlobalParameters

The documentation for this class was generated from the following file:

DE_ConfigurationNode.hxx
