#include <VrmlData_Geometry.hxx>

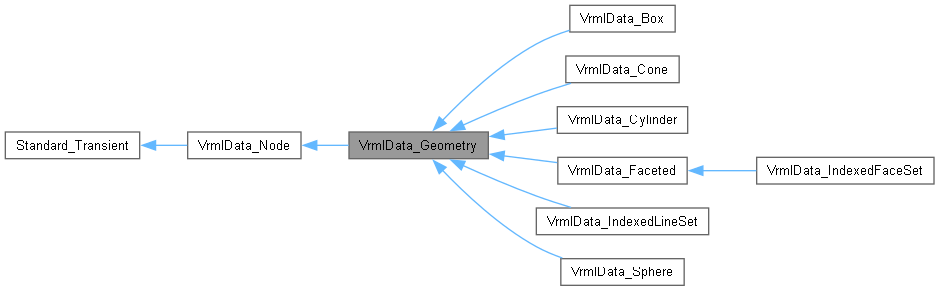

Inheritance diagram for VrmlData_Geometry:

[legend]

Public Member Functions
	VrmlData_Geometry ()

	VrmlData_Geometry (const VrmlData_Scene &theScene, const char *theName)

virtual const occ::handle< TopoDS_TShape > &	TShape ()=0

Public Member Functions inherited from VrmlData_Node
	VrmlData_Node ()

	~VrmlData_Node () override=default

const VrmlData_Scene &	Scene () const

const char *	Name () const

VrmlData_ErrorStatus	ReadNode (VrmlData_InBuffer &theBuffer, occ::handle< VrmlData_Node > &theNode, const occ::handle< Standard_Type > &Type=nullptr)

virtual VrmlData_ErrorStatus	Read (VrmlData_InBuffer &theBuffer)=0

virtual VrmlData_ErrorStatus	Write (const char *thePrefix) const

virtual bool	IsDefault () const

VrmlData_ErrorStatus	WriteClosing () const

virtual occ::handle< VrmlData_Node >	Clone (const occ::handle< VrmlData_Node > &) const

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()=default
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.

bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

int	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.

int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.

virtual void	Delete () const
	Memory deallocator for transient classes.

Protected Member Functions
void	SetTShape (const occ::handle< TopoDS_TShape > &theTShape)

void	SetModified ()

Protected Member Functions inherited from VrmlData_Node
	VrmlData_Node (const VrmlData_Scene &theScene, const char *theName)

Protected Attributes
occ::handle< TopoDS_TShape >	myTShape

bool	myIsModified

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Static Public Member Functions inherited from VrmlData_Node
static VrmlData_ErrorStatus	ReadBoolean (VrmlData_InBuffer &theBuffer, bool &theResult)

static VrmlData_ErrorStatus	ReadString (VrmlData_InBuffer &theBuffer, TCollection_AsciiString &theRes)

static VrmlData_ErrorStatus	ReadMultiString (VrmlData_InBuffer &theBuffer, NCollection_List< TCollection_AsciiString > &theRes)

static VrmlData_ErrorStatus	ReadInteger (VrmlData_InBuffer &theBuffer, long &theResult)

static bool	OK (const VrmlData_ErrorStatus theStat)

static bool	OK (VrmlData_ErrorStatus &outStat, const VrmlData_ErrorStatus theStat)

static int	GlobalIndent ()

Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Static Protected Member Functions inherited from VrmlData_Node
static VrmlData_ErrorStatus	readBrace (VrmlData_InBuffer &theBuffer)

Detailed Description

Implementation of the Geometry node. Contains the topological representation (TopoDS_Shell) of the VRML geometry

Constructor & Destructor Documentation

◆ VrmlData_Geometry() [1/2]

VrmlData_Geometry::VrmlData_Geometry ( )

inline

Empty constructor

◆ VrmlData_Geometry() [2/2]

VrmlData_Geometry::VrmlData_Geometry	(	const VrmlData_Scene &	theScene,
		const char *	theName )

inline

Constructor

Member Function Documentation

◆ SetModified()

void VrmlData_Geometry::SetModified ( )

inlineprotected

Mark modification

◆ SetTShape()

void VrmlData_Geometry::SetTShape ( const occ::handle< TopoDS_TShape > & theTShape )

inlineprotected

Set the TShape.

◆ TShape()

virtual const occ::handle< TopoDS_TShape > & VrmlData_Geometry::TShape ( )

pure virtual

Query the shape. This method checks the flag myIsModified; if True it should rebuild the shape presentation.

Implemented in VrmlData_Box, VrmlData_Cone, VrmlData_Cylinder, VrmlData_IndexedFaceSet, VrmlData_IndexedLineSet, and VrmlData_Sphere.

Field Documentation

◆ myIsModified

bool VrmlData_Geometry::myIsModified

protected

◆ myTShape

occ::handle<TopoDS_TShape> VrmlData_Geometry::myTShape
