Sets a Global (Header) Parameter to a new value, directly given Controls the form of the parameter (Integer, Real, String with such or such form), but not the consistence of the new value regarding the rest of the file. More...
#include <IGESSelect_SetGlobalParameter.hxx>

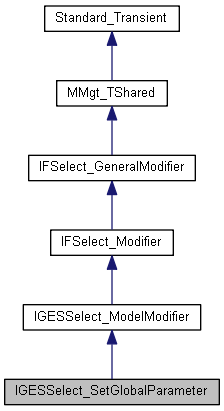

Inheritance diagram for IGESSelect_SetGlobalParameter:
Public Member Functions | |
| IGESSelect_SetGlobalParameter (const Standard_Integer numpar) | |
| Creates an SetGlobalParameter, to be applied on Global Parameter <numpar> More... | |
| Standard_Integer | GlobalNumber () const |
| Returns the global parameter number to which this modifiers applies. More... | |
| void | SetValue (const Handle< TCollection_HAsciiString > &text) |
| Sets a Text Parameter for the new value. More... | |
| Handle< TCollection_HAsciiString > | Value () const |
| Returns the value to set to the global parameter (Text Param) More... | |
| void | Performing (IFSelect_ContextModif &ctx, const Handle< IGESData_IGESModel > &target, Interface_CopyTool &TC) const |
| Specific action : only <target> is used : the form of the new value is checked regarding the parameter number (given at creation time). More... | |
| TCollection_AsciiString | Label () const |
| Returns a text which is "Sets Global Parameter <numpar> to <new value>". More... | |
 Public Member Functions inherited from IGESSelect_ModelModifier | |
| void | Perform (IFSelect_ContextModif &ctx, const Handle< Interface_InterfaceModel > &target, const Handle< Interface_Protocol > &protocol, Interface_CopyTool &TC) const |
| This deferred method defines the action specific to each class of Modifier. It is called by a ModelCopier, once the Model generated and filled. ModelCopier has already checked the criteria (Dispatch, Model Rank, Selection) before calling it. More... | |
| virtual void | PerformProtocol (IFSelect_ContextModif &ctx, const Handle< IGESData_IGESModel > &target, const Handle< IGESData_Protocol > &proto, Interface_CopyTool &TC) const |
| Public Member Functions inherited from IFSelect_GeneralModifier | |
| Standard_Boolean | MayChangeGraph () const |
| Returns True if this modifier may change the graph of dependences (aknowledged at creation time) More... | |
| void | SetDispatch (const Handle< IFSelect_Dispatch > &disp) |
| Attaches to a Dispatch. If <disp> is Null, Resets it (to apply the Modifier on every Dispatch) More... | |
| Handle< IFSelect_Dispatch > | Dispatch () const |
| Returns the Dispatch to be matched, Null if not set. More... | |
| Standard_Boolean | Applies (const Handle< IFSelect_Dispatch > &disp) const |
| Returns True if a Model obtained from the Dispatch <disp> is to be treated (apart from the Selection criterium) If Dispatch(me) is Null, returns True. Else, checks <disp> More... | |
| void | SetSelection (const Handle< IFSelect_Selection > &sel) |
| Sets a Selection : a Model is treated if it contains one or more Entities designated by the Selection. More... | |
| void | ResetSelection () |
| Resets the Selection : this criterium is not longer active. More... | |
| Standard_Boolean | HasSelection () const |
| Returns True if a Selection is set as an additionnal criterium. More... | |
| Handle< IFSelect_Selection > | Selection () const |
| Returns the Selection, or a Null Handle if not set. More... | |
| Public Member Functions inherited from MMgt_TShared | |
| virtual void | Delete () const |
| Memory deallocator for transient classes. More... | |
| Public Member Functions inherited from Standard_Transient | |
| Standard_Transient () | |
| Empty constructor. More... | |
| Standard_Transient (const Standard_Transient &) | |
| Copy constructor – does nothing. More... | |
| Standard_Transient & | operator= (const Standard_Transient &) |
| Assignment operator, needed to avoid copying reference counter. More... | |
| virtual | ~Standard_Transient () |
| Destructor must be virtual. More... | |
| virtual const Handle_Standard_Type & | DynamicType () const |
| Returns a type information object about this object. More... | |
| Standard_Boolean | IsInstance (const Handle_Standard_Type &theType) const |
| Returns a true value if this is an instance of Type. More... | |
| Standard_Boolean | IsInstance (const Standard_CString theTypeName) const |
| Returns a true value if this is an instance of TypeName. More... | |
| Standard_Boolean | IsKind (const Handle_Standard_Type &theType) const |
| Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism. More... | |
| Standard_Boolean | IsKind (const Standard_CString theTypeName) const |
| Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism. More... | |
| virtual Handle_Standard_Transient | This () const |
| Returns a Handle which references this object. Must never be called to objects created in stack. More... | |
| Standard_Integer | GetRefCount () const |
| Get the reference counter of this object. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from IGESSelect_ModelModifier | |
| IGESSelect_ModelModifier (const Standard_Boolean maychangegraph) | |
| Protected Member Functions inherited from IFSelect_Modifier | |
| IFSelect_Modifier (const Standard_Boolean maychangegraph) | |
| Calls inherited Initialize, transmits to it the information <maychangegraph> More... | |
| Protected Member Functions inherited from IFSelect_GeneralModifier | |
| IFSelect_GeneralModifier (const Standard_Boolean maychangegraph) | |
| Sets the Modifier criteria to default Values (i.e. "always applies") <maychangegraph> must be provided at creation time, to : More... | |
Detailed Description
Sets a Global (Header) Parameter to a new value, directly given Controls the form of the parameter (Integer, Real, String with such or such form), but not the consistence of the new value regarding the rest of the file.
The new value is given under the form of a HAsciiString, even for Integer or Real values. For String values, Hollerith forms are accepted but not mandatory Warning : a Null (not set) value is not accepted. For an empty string, give a Text Parameter which is empty
Constructor & Destructor Documentation
| IGESSelect_SetGlobalParameter::IGESSelect_SetGlobalParameter | ( | const Standard_Integer | numpar | ) |
Creates an SetGlobalParameter, to be applied on Global Parameter <numpar>
Member Function Documentation
| Standard_Integer IGESSelect_SetGlobalParameter::GlobalNumber | ( | ) | const |
Returns the global parameter number to which this modifiers applies.
|
virtual |
Returns a text which is "Sets Global Parameter <numpar> to <new value>".
Implements IFSelect_GeneralModifier.
|
virtual |
Specific action : only <target> is used : the form of the new value is checked regarding the parameter number (given at creation time).
Implements IGESSelect_ModelModifier.
| void IGESSelect_SetGlobalParameter::SetValue | ( | const Handle< TCollection_HAsciiString > & | text | ) |
Sets a Text Parameter for the new value.
| Handle< TCollection_HAsciiString > IGESSelect_SetGlobalParameter::Value | ( | ) | const |
Returns the value to set to the global parameter (Text Param)
The documentation for this class was generated from the following file:
