#include <StepGeom_BezierCurveAndRationalBSplineCurve.hxx>

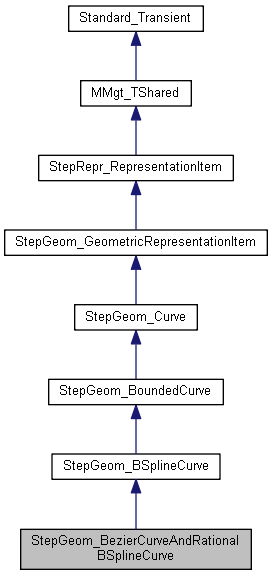

Inheritance diagram for StepGeom_BezierCurveAndRationalBSplineCurve:

[legend]

Public Member Functions
	StepGeom_BezierCurveAndRationalBSplineCurve ()
	Returns a BezierCurveAndRationalBSplineCurve. More...

virtual void	Init (const Handle< TCollection_HAsciiString > &aName, const Standard_Integer aDegree, const Handle< StepGeom_HArray1OfCartesianPoint > &aControlPointsList, const StepGeom_BSplineCurveForm aCurveForm, const StepData_Logical aClosedCurve, const StepData_Logical aSelfIntersect)

virtual void	Init (const Handle< TCollection_HAsciiString > &aName, const Standard_Integer aDegree, const Handle< StepGeom_HArray1OfCartesianPoint > &aControlPointsList, const StepGeom_BSplineCurveForm aCurveForm, const StepData_Logical aClosedCurve, const StepData_Logical aSelfIntersect, const Handle< StepGeom_BezierCurve > &aBezierCurve, const Handle< StepGeom_RationalBSplineCurve > &aRationalBSplineCurve)

virtual void	Init (const Handle< TCollection_HAsciiString > &aName, const Standard_Integer aDegree, const Handle< StepGeom_HArray1OfCartesianPoint > &aControlPointsList, const StepGeom_BSplineCurveForm aCurveForm, const StepData_Logical aClosedCurve, const StepData_Logical aSelfIntersect, const Handle< TColStd_HArray1OfReal > &aWeightsData)

void	SetBezierCurve (const Handle< StepGeom_BezierCurve > &aBezierCurve)

Handle< StepGeom_BezierCurve >	BezierCurve () const

void	SetRationalBSplineCurve (const Handle< StepGeom_RationalBSplineCurve > &aRationalBSplineCurve)

Handle < StepGeom_RationalBSplineCurve >	RationalBSplineCurve () const

void	SetWeightsData (const Handle< TColStd_HArray1OfReal > &aWeightsData)

Handle< TColStd_HArray1OfReal >	WeightsData () const

Standard_Real	WeightsDataValue (const Standard_Integer num) const

Standard_Integer	NbWeightsData () const

Public Member Functions inherited from StepGeom_BSplineCurve
	StepGeom_BSplineCurve ()
	Returns a BSplineCurve. More...

virtual void	Init (const Handle< TCollection_HAsciiString > &aName)

void	SetDegree (const Standard_Integer aDegree)

Standard_Integer	Degree () const

void	SetControlPointsList (const Handle< StepGeom_HArray1OfCartesianPoint > &aControlPointsList)

Handle < StepGeom_HArray1OfCartesianPoint >	ControlPointsList () const

Handle< StepGeom_CartesianPoint >	ControlPointsListValue (const Standard_Integer num) const

Standard_Integer	NbControlPointsList () const

void	SetCurveForm (const StepGeom_BSplineCurveForm aCurveForm)

StepGeom_BSplineCurveForm	CurveForm () const

void	SetClosedCurve (const StepData_Logical aClosedCurve)

StepData_Logical	ClosedCurve () const

void	SetSelfIntersect (const StepData_Logical aSelfIntersect)

StepData_Logical	SelfIntersect () const

Public Member Functions inherited from StepGeom_BoundedCurve
	StepGeom_BoundedCurve ()
	Returns a BoundedCurve. More...

Public Member Functions inherited from StepGeom_Curve
	StepGeom_Curve ()
	Returns a Curve. More...

Public Member Functions inherited from StepGeom_GeometricRepresentationItem
	StepGeom_GeometricRepresentationItem ()
	Returns a GeometricRepresentationItem. More...

Public Member Functions inherited from StepRepr_RepresentationItem
	StepRepr_RepresentationItem ()
	Returns a RepresentationItem. More...

void	SetName (const Handle< TCollection_HAsciiString > &aName)

Handle< TCollection_HAsciiString >	Name () const

Public Member Functions inherited from MMgt_TShared
virtual void	Delete () const
	Memory deallocator for transient classes. More...

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor. More...

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing. More...

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter. More...

virtual	~Standard_Transient ()
	Destructor must be virtual. More...

virtual const Handle_Standard_Type &	DynamicType () const
	Returns a type information object about this object. More...

Standard_Boolean	IsInstance (const Handle_Standard_Type &theType) const
	Returns a true value if this is an instance of Type. More...

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName. More...

Standard_Boolean	IsKind (const Handle_Standard_Type &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism. More...

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism. More...

virtual Handle_Standard_Transient	This () const
	Returns a Handle which references this object. Must never be called to objects created in stack. More...

Standard_Integer	GetRefCount () const
	Get the reference counter of this object. More...

Constructor & Destructor Documentation

StepGeom_BezierCurveAndRationalBSplineCurve::StepGeom_BezierCurveAndRationalBSplineCurve ( )

Returns a BezierCurveAndRationalBSplineCurve.

Member Function Documentation

Handle< StepGeom_BezierCurve > StepGeom_BezierCurveAndRationalBSplineCurve::BezierCurve ( ) const

virtual void StepGeom_BezierCurveAndRationalBSplineCurve::Init	(	const Handle< TCollection_HAsciiString > &	aName,
		const Standard_Integer	aDegree,
		const Handle< StepGeom_HArray1OfCartesianPoint > &	aControlPointsList,
		const StepGeom_BSplineCurveForm	aCurveForm,
		const StepData_Logical	aClosedCurve,
		const StepData_Logical	aSelfIntersect
	)

virtual

Reimplemented from StepGeom_BSplineCurve.

virtual void StepGeom_BezierCurveAndRationalBSplineCurve::Init	(	const Handle< TCollection_HAsciiString > &	aName,
		const Standard_Integer	aDegree,
		const Handle< StepGeom_HArray1OfCartesianPoint > &	aControlPointsList,
		const StepGeom_BSplineCurveForm	aCurveForm,
		const StepData_Logical	aClosedCurve,
		const StepData_Logical	aSelfIntersect,
		const Handle< StepGeom_BezierCurve > &	aBezierCurve,
		const Handle< StepGeom_RationalBSplineCurve > &	aRationalBSplineCurve
	)

virtual

virtual void StepGeom_BezierCurveAndRationalBSplineCurve::Init	(	const Handle< TCollection_HAsciiString > &	aName,
		const Standard_Integer	aDegree,
		const Handle< StepGeom_HArray1OfCartesianPoint > &	aControlPointsList,
		const StepGeom_BSplineCurveForm	aCurveForm,
		const StepData_Logical	aClosedCurve,
		const StepData_Logical	aSelfIntersect,
		const Handle< TColStd_HArray1OfReal > &	aWeightsData
	)

virtual

Standard_Integer StepGeom_BezierCurveAndRationalBSplineCurve::NbWeightsData ( ) const

Handle< StepGeom_RationalBSplineCurve > StepGeom_BezierCurveAndRationalBSplineCurve::RationalBSplineCurve ( ) const

void StepGeom_BezierCurveAndRationalBSplineCurve::SetBezierCurve ( const Handle< StepGeom_BezierCurve > & aBezierCurve )

void StepGeom_BezierCurveAndRationalBSplineCurve::SetRationalBSplineCurve ( const Handle< StepGeom_RationalBSplineCurve > & aRationalBSplineCurve )

void StepGeom_BezierCurveAndRationalBSplineCurve::SetWeightsData ( const Handle< TColStd_HArray1OfReal > & aWeightsData )

Handle< TColStd_HArray1OfReal > StepGeom_BezierCurveAndRationalBSplineCurve::WeightsData ( ) const

Standard_Real StepGeom_BezierCurveAndRationalBSplineCurve::WeightsDataValue ( const Standard_Integer num ) const

The documentation for this class was generated from the following file:

StepGeom_BezierCurveAndRationalBSplineCurve.hxx
