Open CASCADE Technology  7.1.0.beta
Public Member Functions

IGESControl_ActorWrite Class Reference

Actor to write Shape to IGES. More...

#include <IGESControl_ActorWrite.hxx>

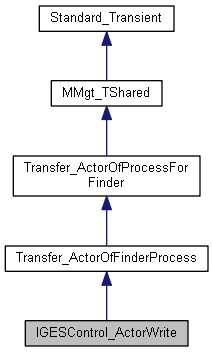

Inheritance diagram for IGESControl_ActorWrite:
Inheritance graph
[legend]

Public Member Functions

 IGESControl_ActorWrite ()

virtual Standard_Boolean Recognize (const Handle< Transfer_Finder > &start) override
 Recognizes a ShapeMapper. More...

virtual Handle< Transfer_BinderTransfer (const Handle< Transfer_Finder > &start, const Handle< Transfer_FinderProcess > &FP) override
 Transfers Shape to IGES Entities. More...

- Public Member Functions inherited from Transfer_ActorOfFinderProcess
 Transfer_ActorOfFinderProcess ()

Standard_IntegerModeTrans ()
 Returns the Transfer Mode, modifiable. More...

virtual Handle< Transfer_BinderTransferring (const Handle< Transfer_Finder > &start, const Handle< Transfer_ProcessForFinder > &TP) override
 Specific action of Transfer. The Result is stored in the returned Binder, or a Null Handle for "No result" (Default defined as doing nothing; should be deffered) "mutable" allows the Actor to record intermediate information, in addition to those of TransferProcess. More...

virtual Handle< Standard_TransientTransferTransient (const Handle< Standard_Transient > &start, const Handle< Transfer_FinderProcess > &TP)

- Public Member Functions inherited from Transfer_ActorOfProcessForFinder
 Transfer_ActorOfProcessForFinder ()

Handle< Transfer_SimpleBinderOfTransientTransientResult (const Handle< Standard_Transient > &res) const
 Prepares and Returns a Binder for a Transient Result Returns a Null Handle if <res> is itself Null. More...

Handle< Transfer_BinderNullResult () const
 Returns a Binder for No Result, i.e. a Null Handle. More...

void SetLast (const Standard_Boolean mode=Standard_True)
 If <mode> is True, commands an Actor to be set at the end of the list of Actors (see SetNext) If it is False (creation default), each add Actor is set at the beginning of the list This allows to define default Actors (which are Last) More...

Standard_Boolean IsLast () const
 Returns the Last status (see SetLast). More...

void SetNext (const Handle< Transfer_ActorOfProcessForFinder > &next)
 Defines a Next Actor : it can then be asked to work if <me> produces no result for a given type of Object. If Next is already set and is not "Last", calls SetNext on it. If Next defined and "Last", the new actor is added before it in the list. More...

Handle< Transfer_ActorOfProcessForFinderNext () const
 Returns the Actor defined as Next, or a Null Handle. More...

- Public Member Functions inherited from MMgt_TShared
virtual void Delete () const override
 Memory deallocator for transient classes. More...

- Public Member Functions inherited from Standard_Transient
 Standard_Transient ()
 Empty constructor. More...

 Standard_Transient (const Standard_Transient &)
 Copy constructor – does nothing. More...

Standard_Transientoperator= (const Standard_Transient &)
 Assignment operator, needed to avoid copying reference counter. More...

virtual ~Standard_Transient ()
 Destructor must be virtual. More...

virtual const opencascade::handle< Standard_Type > & DynamicType () const
 Returns a type descriptor about this object. More...

Standard_Boolean IsInstance (const opencascade::handle< Standard_Type > &theType) const
 Returns a true value if this is an instance of Type. More...

Standard_Boolean IsInstance (const Standard_CString theTypeName) const
 Returns a true value if this is an instance of TypeName. More...

Standard_Boolean IsKind (const opencascade::handle< Standard_Type > &theType) const
 Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism. More...

Standard_Boolean IsKind (const Standard_CString theTypeName) const
 Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism. More...

Standard_TransientThis () const
 Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero. More...

Standard_Integer GetRefCount () const
 Get the reference counter of this object. More...

void IncrementRefCounter () const
 Increments the reference counter of this object. More...

Standard_Integer DecrementRefCounter () const
 Decrements the reference counter of this object; returns the decremented value. More...


Additional Inherited Members

- Public Types inherited from Standard_Transient
typedef void base_type
 Returns a type descriptor about this object. More...

- Static Public Member Functions inherited from Standard_Transient
static const char * get_type_name ()
 Returns a type descriptor about this object. More...

static const opencascade::handle< Standard_Type > & get_type_descriptor ()
 Returns type descriptor of Standard_Transient class. More...

- Protected Attributes inherited from Transfer_ActorOfFinderProcess
Standard_Integer themodetrans


Detailed Description

Actor to write Shape to IGES.

Constructor & Destructor Documentation

IGESControl_ActorWrite::IGESControl_ActorWrite ( )

Member Function Documentation

virtual Standard_Boolean IGESControl_ActorWrite::Recognize ( const Handle< Transfer_Finder > &  start)
overridevirtual

Recognizes a ShapeMapper.

Reimplemented from Transfer_ActorOfProcessForFinder.

virtual Handle< Transfer_Binder > IGESControl_ActorWrite::Transfer ( const Handle< Transfer_Finder > &  start,
const Handle< Transfer_FinderProcess > &  FP
)
overridevirtual

Transfers Shape to IGES Entities.

ModeTrans may be : 0 -> groups of Faces or 1 -> BRep

Reimplemented from Transfer_ActorOfFinderProcess.


The documentation for this class was generated from the following file:
