BVH_Set< T, N > Class Template Reference

Set of abstract entities (bounded by BVH boxes). This is the minimal geometry interface needed to construct BVH. More...

#include <BVH_Set.hxx>

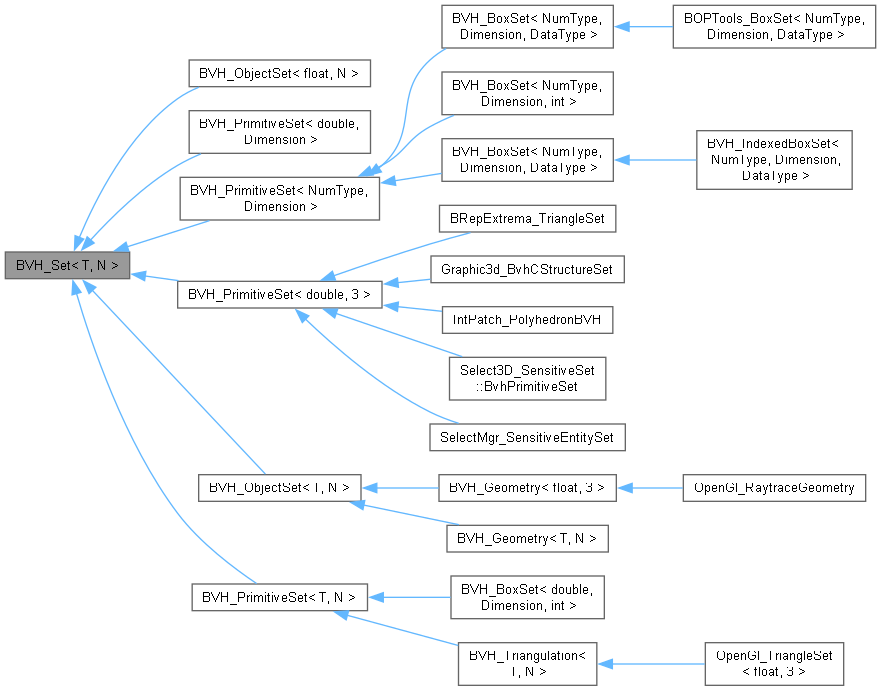

Inheritance diagram for BVH_Set< T, N >:

Public Types
typedef BVH_Box< T, N >	BVH_BoxNt

Public Member Functions
	BVH_Set ()=default
	Creates new abstract set of objects.
virtual	~BVH_Set ()=default
	Releases resources of set of objects.
virtual BVH_Box< T, N >	Box () const
	Returns AABB of the entire set of objects.
virtual int	Size () const =0
	Returns total number of objects.
virtual BVH_Box< T, N >	Box (const int theIndex) const =0
	Returns AABB of the given object.
virtual T	Center (const int theIndex, const int theAxis) const =0
	Returns centroid position along the given axis.
virtual void	Swap (const int theIndex1, const int theIndex2)=0
	Performs transposing the two given objects in the set.

Detailed Description

template<class T, int N>
class BVH_Set< T, N >

Set of abstract entities (bounded by BVH boxes). This is the minimal geometry interface needed to construct BVH.

Template Parameters

T	Numeric data type
N	Vector dimension

Member Typedef Documentation

BVH_BoxNt

template<class T , int N>

typedef BVH_Box<T, N> BVH_Set< T, N >::BVH_BoxNt

Constructor & Destructor Documentation

BVH_Set()

template<class T , int N>

BVH_Set< T, N >::BVH_Set ( )

default

Creates new abstract set of objects.

~BVH_Set()

template<class T , int N>

virtual BVH_Set< T, N >::~BVH_Set ( )

virtualdefault

Releases resources of set of objects.

Member Function Documentation

Box() [1/2]

template<class T , int N>

virtual BVH_Box< T, N > BVH_Set< T, N >::Box ( ) const

inlinevirtual

Returns AABB of the entire set of objects.

Reimplemented in BVH_Geometry< T, N >, BVH_Geometry< float, 3 >, BVH_PrimitiveSet< T, N >, BVH_PrimitiveSet< double, 3 >, BVH_PrimitiveSet< double, Dimension >, BVH_PrimitiveSet< NumType, Dimension >, and OpenGl_TriangleSet.

Box() [2/2]

template<class T , int N>

virtual BVH_Box< T, N > BVH_Set< T, N >::Box ( const int theIndex ) const

pure virtual

Returns AABB of the given object.

Implemented in Graphic3d_BvhCStructureSet, Graphic3d_BvhCStructureSetTrsfPers, Select3D_SensitiveSet::BvhPrimitiveSet, BVH_BoxSet< NumType, Dimension, DataType >, BVH_BoxSet< double, Dimension, int >, BVH_BoxSet< NumType, Dimension, DataType >, BVH_BoxSet< NumType, Dimension, int >, BVH_IndexedBoxSet< NumType, Dimension, DataType >, BVH_ObjectSet< T, N >, BVH_ObjectSet< float, N >, BVH_Triangulation< T, N >, IntPatch_PolyhedronBVH, BRepExtrema_TriangleSet, and SelectMgr_SensitiveEntitySet.

Center()

template<class T , int N>

virtual T BVH_Set< T, N >::Center ( const int theIndex, const int theAxis ) const

pure virtual

Returns centroid position along the given axis.

Implemented in Graphic3d_BvhCStructureSet, Graphic3d_BvhCStructureSetTrsfPers, Select3D_SensitiveSet::BvhPrimitiveSet, BVH_BoxSet< NumType, Dimension, DataType >, BVH_BoxSet< double, Dimension, int >, BVH_BoxSet< NumType, Dimension, DataType >, BVH_BoxSet< NumType, Dimension, int >, BVH_ObjectSet< T, N >, BVH_ObjectSet< float, N >, BVH_Triangulation< T, N >, IntPatch_PolyhedronBVH, BRepExtrema_TriangleSet, OpenGl_TriangleSet, and SelectMgr_SensitiveEntitySet.

Size()

template<class T , int N>

virtual int BVH_Set< T, N >::Size ( ) const

pure virtual

Returns total number of objects.

Implemented in BVH_BoxSet< NumType, Dimension, DataType >, BVH_BoxSet< double, Dimension, int >, BVH_BoxSet< NumType, Dimension, DataType >, BVH_BoxSet< NumType, Dimension, int >, BVH_ObjectSet< T, N >, BVH_ObjectSet< float, N >, BVH_Triangulation< T, N >, IntPatch_PolyhedronBVH, BRepExtrema_TriangleSet, Graphic3d_BvhCStructureSet, Graphic3d_BvhCStructureSetTrsfPers, Select3D_SensitiveSet::BvhPrimitiveSet, and SelectMgr_SensitiveEntitySet.

Swap()

template<class T , int N>

virtual void BVH_Set< T, N >::Swap ( const int theIndex1, const int theIndex2 )

pure virtual

Performs transposing the two given objects in the set.

Implemented in Graphic3d_BvhCStructureSet, Graphic3d_BvhCStructureSetTrsfPers, Select3D_SensitiveSet::BvhPrimitiveSet, BVH_BoxSet< NumType, Dimension, DataType >, BVH_BoxSet< double, Dimension, int >, BVH_BoxSet< NumType, Dimension, DataType >, BVH_BoxSet< NumType, Dimension, int >, BVH_IndexedBoxSet< NumType, Dimension, DataType >, BVH_ObjectSet< T, N >, BVH_ObjectSet< float, N >, BVH_Triangulation< T, N >, IntPatch_PolyhedronBVH, BRepExtrema_TriangleSet, and SelectMgr_SensitiveEntitySet.

---

The documentation for this class was generated from the following file:

• BVH_Set.hxx
