Graphic3d_ArrayOfPrimitives Class Reference

This class furnish services to defined and fill an array of primitives which can be passed directly to graphics rendering API. More...

#include <Graphic3d_ArrayOfPrimitives.hxx>

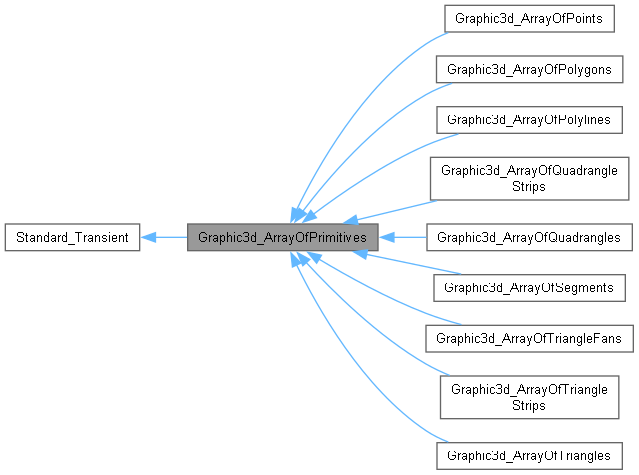

Inheritance diagram for Graphic3d_ArrayOfPrimitives:

Public Member Functions
	~Graphic3d_ArrayOfPrimitives () override
	Destructor.
const occ::handle< Graphic3d_Buffer > &	Attributes () const
	Returns vertex attributes buffer (colors, normals, texture coordinates).
Graphic3d_TypeOfPrimitiveArray	Type () const
	Returns the type of this primitive.
const char *	StringType () const
	Returns the string type of this primitive.
bool	HasVertexNormals () const
	Returns TRUE when vertex normals array is defined.
bool	HasVertexColors () const
	Returns TRUE when vertex colors array is defined.
bool	HasVertexTexels () const
	Returns TRUE when vertex texels array is defined.
int	VertexNumber () const
	Returns the number of defined vertex.
int	VertexNumberAllocated () const
	Returns the number of allocated vertex.
int	ItemNumber () const
	Returns the number of total items according to the array type.
bool	IsValid ()
	Returns TRUE only when the contains of this array is available.
int	AddVertex (const gp_Pnt &theVertex)
	Adds a vertice in the array.
int	AddVertex (const NCollection_Vec3< float > &theVertex)
	Adds a vertice in the array.
int	AddVertex (const double theX, const double theY, const double theZ)
	Adds a vertice in the array.
int	AddVertex (const float theX, const float theY, const float theZ)
	Adds a vertice in the array.
int	AddVertex (const gp_Pnt &theVertex, const Quantity_Color &theColor)
	Adds a vertice and vertex color in the vertex array. Warning: theColor is ignored when the hasVColors constructor parameter is FALSE.
int	AddVertex (const gp_Pnt &theVertex, const int theColor32)
	Adds a vertice and vertex color in the vertex array. Warning: theColor is ignored when the hasVColors constructor parameter is FALSE.
int	AddVertex (const gp_Pnt &theVertex, const NCollection_Vec4< uint8_t > &theColor)
	Adds a vertice and vertex color in the vertex array. Warning: theColor is ignored when the hasVColors constructor parameter is FALSE.
int	AddVertex (const gp_Pnt &theVertex, const gp_Dir &theNormal)
	Adds a vertice and vertex normal in the vertex array. Warning: theNormal is ignored when the hasVNormals constructor parameter is FALSE.
int	AddVertex (const double theX, const double theY, const double theZ, const double theNX, const double theNY, const double theNZ)
	Adds a vertice and vertex normal in the vertex array. Warning: Normal is ignored when the hasVNormals constructor parameter is FALSE.
int	AddVertex (const float theX, const float theY, const float theZ, const float theNX, const float theNY, const float theNZ)
	Adds a vertice and vertex normal in the vertex array. Warning: Normal is ignored when the hasVNormals constructor parameter is FALSE.
int	AddVertex (const gp_Pnt &theVertex, const gp_Dir &theNormal, const Quantity_Color &theColor)
	Adds a vertice,vertex normal and color in the vertex array. Warning: theNormal is ignored when the hasVNormals constructor parameter is FALSE and theColor is ignored when the hasVColors constructor parameter is FALSE.
int	AddVertex (const gp_Pnt &theVertex, const gp_Dir &theNormal, const int theColor32)
	Adds a vertice,vertex normal and color in the vertex array. Warning: theNormal is ignored when the hasVNormals constructor parameter is FALSE and theColor is ignored when the hasVColors constructor parameter is FALSE.
int	AddVertex (const gp_Pnt &theVertex, const gp_Pnt2d &theTexel)
	Adds a vertice and vertex texture in the vertex array. theTexel is ignored when the hasVTexels constructor parameter is FALSE.
int	AddVertex (const double theX, const double theY, const double theZ, const double theTX, const double theTY)
	Adds a vertice and vertex texture coordinates in the vertex array. Texel is ignored when the hasVTexels constructor parameter is FALSE.
int	AddVertex (const float theX, const float theY, const float theZ, const float theTX, const float theTY)
	Adds a vertice and vertex texture coordinates in the vertex array. Texel is ignored when the hasVTexels constructor parameter is FALSE.
int	AddVertex (const gp_Pnt &theVertex, const gp_Dir &theNormal, const gp_Pnt2d &theTexel)
	Adds a vertice,vertex normal and texture in the vertex array. Warning: theNormal is ignored when the hasVNormals constructor parameter is FALSE and theTexel is ignored when the hasVTexels constructor parameter is FALSE.
int	AddVertex (const double theX, const double theY, const double theZ, const double theNX, const double theNY, const double theNZ, const double theTX, const double theTY)
	Adds a vertice,vertex normal and texture in the vertex array. Warning: Normal is ignored when the hasVNormals constructor parameter is FALSE and Texel is ignored when the hasVTexels constructor parameter is FALSE.
int	AddVertex (const float theX, const float theY, const float theZ, const float theNX, const float theNY, const float theNZ, const float theTX, const float theTY)
	Adds a vertice,vertex normal and texture in the vertex array. Warning: Normal is ignored when the hasVNormals constructor parameter is FALSE and Texel is ignored when the hasVTexels constructor parameter is FALSE.
void	SetVertice (const int theIndex, const gp_Pnt &theVertex)
	Change the vertice of rank theIndex in the array.
void	SetVertice (const int theIndex, const float theX, const float theY, const float theZ)
	Change the vertice in the array.
void	SetVertexColor (const int theIndex, const Quantity_Color &theColor)
	Change the vertex color in the array.
void	SetVertexColor (const int theIndex, const double theR, const double theG, const double theB)
	Change the vertex color in the array.
void	SetVertexColor (const int theIndex, const NCollection_Vec4< uint8_t > &theColor)
	Change the vertex color in the array.
void	SetVertexColor (const int theIndex, const int theColor32)
	Change the vertex color in the array.
void	SetVertexNormal (const int theIndex, const gp_Dir &theNormal)
	Change the vertex normal in the array.
void	SetVertexNormal (const int theIndex, const double theNX, const double theNY, const double theNZ)
	Change the vertex normal in the array.
void	SetVertexTexel (const int theIndex, const gp_Pnt2d &theTexel)
	Change the vertex texel in the array.
void	SetVertexTexel (const int theIndex, const double theTX, const double theTY)
	Change the vertex texel in the array.
gp_Pnt	Vertice (const int theRank) const
	Returns the vertice from the vertex table if defined.
void	Vertice (const int theRank, double &theX, double &theY, double &theZ) const
	Returns the vertice coordinates at rank theRank from the vertex table if defined.
Quantity_Color	VertexColor (const int theRank) const
	Returns the vertex color at rank theRank from the vertex table if defined.
void	VertexColor (const int theIndex, NCollection_Vec4< uint8_t > &theColor) const
	Returns the vertex color from the vertex table if defined.
void	VertexColor (const int theRank, double &theR, double &theG, double &theB) const
	Returns the vertex color values from the vertex table if defined.
void	VertexColor (const int theRank, int &theColor) const
	Returns the vertex color values from the vertex table if defined.
gp_Dir	VertexNormal (const int theRank) const
	Returns the vertex normal from the vertex table if defined.
void	VertexNormal (const int theRank, double &theNX, double &theNY, double &theNZ) const
	Returns the vertex normal coordinates at rank theRank from the vertex table if defined.
gp_Pnt2d	VertexTexel (const int theRank) const
	Returns the vertex texture at rank theRank from the vertex table if defined.
void	VertexTexel (const int theRank, double &theTX, double &theTY) const
	Returns the vertex texture coordinates at rank theRank from the vertex table if defined.
optional array of Indices/Edges for using shared Vertex data
Returns optional index buffer.
const occ::handle< Graphic3d_IndexBuffer > &	Indices () const
	Returns the number of defined edges.
int	EdgeNumber () const
	Returns the number of defined edges.
int	EdgeNumberAllocated () const
	Returns the number of allocated edges.
int	Edge (const int theRank) const
	Returns the vertex index at rank theRank in the range [1,EdgeNumber()].
int	AddEdge (const int theVertexIndex)
	Adds an edge in the range [1,VertexNumber()] in the array.
int	AddEdges (int theVertexIndex1, int theVertexIndex2)
	Convenience method, adds two vertex indices (a segment) in the range [1,VertexNumber()] in the array.
int	AddSegmentEdges (int theVertexIndex1, int theVertexIndex2)
	Convenience method, adds two vertex indices (a segment) in the range [1,VertexNumber()] in the array of segments (Graphic3d_TOPA_SEGMENTS). Raises exception if array is not of type Graphic3d_TOPA_SEGMENTS.
int	AddEdges (int theVertexIndex1, int theVertexIndex2, int theVertexIndex3)
	Convenience method, adds three vertex indices (a triangle) in the range [1,VertexNumber()] in the array.
int	AddTriangleEdges (int theVertexIndex1, int theVertexIndex2, int theVertexIndex3)
	Convenience method, adds three vertex indices of triangle in the range [1,VertexNumber()] in the array of triangles. Raises exception if array is not of type Graphic3d_TOPA_TRIANGLES.
int	AddTriangleEdges (const NCollection_Vec3< int > &theIndexes)
	Convenience method, adds three vertex indices of triangle in the range [1,VertexNumber()] in the array of triangles. Raises exception if array is not of type Graphic3d_TOPA_TRIANGLES.
int	AddTriangleEdges (const NCollection_Vec4< int > &theIndexes)
	Convenience method, adds three vertex indices (4th component is ignored) of triangle in the range [1,VertexNumber()] in the array of triangles. Raises exception if array is not of type Graphic3d_TOPA_TRIANGLES.
int	AddEdges (int theVertexIndex1, int theVertexIndex2, int theVertexIndex3, int theVertexIndex4)
	Convenience method, adds four vertex indices (a quad) in the range [1,VertexNumber()] in the array.
int	AddQuadEdges (int theVertexIndex1, int theVertexIndex2, int theVertexIndex3, int theVertexIndex4)
	Convenience method, adds four vertex indices (a quad) in the range [1,VertexNumber()] in the array of quads. Raises exception if array is not of type Graphic3d_TOPA_QUADRANGLES.
int	AddQuadTriangleEdges (int theVertexIndex1, int theVertexIndex2, int theVertexIndex3, int theVertexIndex4)
	Convenience method, adds quad indices in the range [1,VertexNumber()] into array or triangles as two triangles. Raises exception if array is not of type Graphic3d_TOPA_TRIANGLES.
int	AddQuadTriangleEdges (const NCollection_Vec4< int > &theIndexes)
	Convenience method, adds quad indices in the range [1,VertexNumber()] into array or triangles as two triangles. Raises exception if array is not of type Graphic3d_TOPA_TRIANGLES.
void	AddTriangleStripEdges (int theVertexLower, int theVertexUpper)
	Add triangle strip into indexed triangulation array. N-2 triangles are added from N input nodes. Raises exception if array is not of type Graphic3d_TOPA_TRIANGLES.
void	AddTriangleFanEdges (int theVertexLower, int theVertexUpper, bool theToClose)
	Add triangle fan into indexed triangulation array. N-2 triangles are added from N input nodes (or N-1 with closed flag). Raises exception if array is not of type Graphic3d_TOPA_TRIANGLES.
void	AddPolylineEdges (int theVertexLower, int theVertexUpper, bool theToClose)
	Add line strip (polyline) into indexed segments array. N-1 segments are added from N input nodes (or N with closed flag). Raises exception if array is not of type Graphic3d_TOPA_SEGMENTS.
optional array of Bounds/Subgroups within primitive array (e.g. restarting
primitives / assigning colors) Returns optional bounds buffer.
const occ::handle< Graphic3d_BoundBuffer > &	Bounds () const
	Returns TRUE when bound colors array is defined.
bool	HasBoundColors () const
	Returns TRUE when bound colors array is defined.
int	BoundNumber () const
	Returns the number of defined bounds.
int	BoundNumberAllocated () const
	Returns the number of allocated bounds.
int	Bound (const int theRank) const
	Returns the edge number at rank theRank.
Quantity_Color	BoundColor (const int theRank) const
	Returns the bound color at rank theRank from the bound table if defined.
void	BoundColor (const int theRank, double &theR, double &theG, double &theB) const
	Returns the bound color values at rank theRank from the bound table if defined.
int	AddBound (const int theEdgeNumber)
	Adds a bound of length theEdgeNumber in the bound array.
int	AddBound (const int theEdgeNumber, const Quantity_Color &theBColor)
	Adds a bound of length theEdgeNumber and bound color theBColor in the bound array. Warning: theBColor is ignored when the hasBColors constructor parameter is FALSE.
int	AddBound (const int theEdgeNumber, const double theR, const double theG, const double theB)
	Adds a bound of length theEdgeNumber and bound color coordinates in the bound array. Warning: <theR,theG,theB> are ignored when the hasBColors constructor parameter is FALSE.
void	SetBoundColor (const int theIndex, const Quantity_Color &theColor)
	Change the bound color of rank theIndex in the array.
void	SetBoundColor (const int theIndex, const double theR, const double theG, const double theB)
	Change the bound color of rank theIndex in the array.
Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.
	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.
Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.
virtual	~Standard_Transient ()=default
	Destructor must be virtual.
virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.
bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.
bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.
bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.
int	GetRefCount () const noexcept
	Get the reference counter of this object.
void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.
int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.
virtual void	Delete () const
	Memory deallocator for transient classes.

Static Public Member Functions
static occ::handle< Graphic3d_ArrayOfPrimitives >	CreateArray (Graphic3d_TypeOfPrimitiveArray theType, int theMaxVertexs, int theMaxEdges, Graphic3d_ArrayFlags theArrayFlags)
	Create an array of specified type.
static occ::handle< Graphic3d_ArrayOfPrimitives >	CreateArray (Graphic3d_TypeOfPrimitiveArray theType, int theMaxVertexs, int theMaxBounds, int theMaxEdges, Graphic3d_ArrayFlags theArrayFlags)
	Create an array of specified type.
Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.
static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Protected Member Functions
protected constructors
Main constructor. Parameters theType type of primitive theMaxVertexs length of vertex attributes buffer to be allocated (maximum number of vertexes, See also AddVertex()) Parameters theMaxBounds length of bounds buffer to be allocated (maximum number of bounds, See also AddBound()) Parameters theMaxEdges length of edges (index) buffer to be allocated (maximum number of indexes See also AddEdge()) Parameters theArrayFlags array flags
	Graphic3d_ArrayOfPrimitives (Graphic3d_TypeOfPrimitiveArray theType, int theMaxVertexs, int theMaxBounds, int theMaxEdges, Graphic3d_ArrayFlags theArrayFlags)
	Array constructor.
void	init (Graphic3d_TypeOfPrimitiveArray theType, int theMaxVertexs, int theMaxBounds, int theMaxEdges, Graphic3d_ArrayFlags theArrayFlags)
	Array constructor.

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Detailed Description

This class furnish services to defined and fill an array of primitives which can be passed directly to graphics rendering API.

The basic interface consists of the following parts: 1) Specifying primitive type. WARNING! Particular primitive types might be unsupported by specific hardware/graphics API (like quads and polygons). It is always preferred using one of basic types having maximum compatibility: Point, Triangle (or Triangle strip), Segment aka Lines (or Polyline aka Line Strip). Primitive strip types can be used to reduce memory usage as alternative to Indexed arrays. 2) Vertex array.

• Specifying the (maximum) number of vertexes within array.
• Specifying the vertex attributes, complementary to mandatory vertex Position (normal, color, UV texture coordinates).
• Defining vertex values by using various versions of AddVertex() or SetVertex*() methods. 3) Index array (optional).
• Specifying the (maximum) number of indexes (edges).
• Defining index values by using AddEdge() method; the index value should be within number of defined Vertexes.

Indexed array allows sharing vertex data across Primitives and thus reducing memory usage, since index size is much smaller then size of vertex with all its attributes. It is a preferred way for defining primitive array and main alternative to Primitive Strips for optimal memory usage, although it is also possible (but unusual) defining Indexed Primitive Strip. Note that it is NOT possible sharing Vertex Attributes partially (e.g. share Position, but have different Normals); in such cases Vertex should be entirely duplicated with all Attributes. 4) Bounds array (optional).

• Specifying the (maximum) number of bounds.
• Defining bounds using AddBound() methods.

Bounds allow splitting Primitive Array into sub-groups. This is useful only in two cases - for specifying per-group color and for restarting Primitive Strips. WARNING! Bounds within Primitive Array break rendering batches into parts (additional for loops), affecting rendering performance negatively (increasing CPU load).

Constructor & Destructor Documentation

~Graphic3d_ArrayOfPrimitives()

Graphic3d_ArrayOfPrimitives::~Graphic3d_ArrayOfPrimitives ( )

override

Destructor.

Graphic3d_ArrayOfPrimitives()

Graphic3d_ArrayOfPrimitives::Graphic3d_ArrayOfPrimitives ( Graphic3d_TypeOfPrimitiveArray theType, int theMaxVertexs, int theMaxBounds, int theMaxEdges, Graphic3d_ArrayFlags theArrayFlags )

inlineprotected

Array constructor.

Member Function Documentation

AddBound() [1/3]

int Graphic3d_ArrayOfPrimitives::AddBound

(

const int

theEdgeNumber

)

Adds a bound of length theEdgeNumber in the bound array.

Returns

the actual bounds number

AddBound() [2/3]

int Graphic3d_ArrayOfPrimitives::AddBound	(	const int	theEdgeNumber,
		const double	theR,
		const double	theG,
		const double	theB )

Adds a bound of length theEdgeNumber and bound color coordinates in the bound array. Warning: <theR,theG,theB> are ignored when the hasBColors constructor parameter is FALSE.

Returns

the actual bounds number

AddBound() [3/3]

int Graphic3d_ArrayOfPrimitives::AddBound ( const int theEdgeNumber, const Quantity_Color & theBColor )

inline

Adds a bound of length theEdgeNumber and bound color theBColor in the bound array. Warning: theBColor is ignored when the hasBColors constructor parameter is FALSE.

Returns

the actual bounds number

AddEdge()

int Graphic3d_ArrayOfPrimitives::AddEdge

(

const int

theVertexIndex

)

Adds an edge in the range [1,VertexNumber()] in the array.

Returns

the actual edges number

AddEdges() [1/3]

int Graphic3d_ArrayOfPrimitives::AddEdges ( int theVertexIndex1, int theVertexIndex2 )

inline

Convenience method, adds two vertex indices (a segment) in the range [1,VertexNumber()] in the array.

Returns

the actual edges number

AddEdges() [2/3]

int Graphic3d_ArrayOfPrimitives::AddEdges ( int theVertexIndex1, int theVertexIndex2, int theVertexIndex3 )

inline

Convenience method, adds three vertex indices (a triangle) in the range [1,VertexNumber()] in the array.

Returns

the actual edges number

AddEdges() [3/3]

int Graphic3d_ArrayOfPrimitives::AddEdges ( int theVertexIndex1, int theVertexIndex2, int theVertexIndex3, int theVertexIndex4 )

inline

Convenience method, adds four vertex indices (a quad) in the range [1,VertexNumber()] in the array.

Returns

the actual edges number

AddPolylineEdges()

void Graphic3d_ArrayOfPrimitives::AddPolylineEdges	(	int	theVertexLower,
		int	theVertexUpper,
		bool	theToClose )

Add line strip (polyline) into indexed segments array. N-1 segments are added from N input nodes (or N with closed flag). Raises exception if array is not of type Graphic3d_TOPA_SEGMENTS.

Parameters

[in]	theVertexLower	index of first node defining line strip fun (center)
[in]	theVertexUpper	index of last node defining triangle fun
[in]	theToClose	close triangle fan (connect first and last points)

AddQuadEdges()

int Graphic3d_ArrayOfPrimitives::AddQuadEdges ( int theVertexIndex1, int theVertexIndex2, int theVertexIndex3, int theVertexIndex4 )

inline

Convenience method, adds four vertex indices (a quad) in the range [1,VertexNumber()] in the array of quads. Raises exception if array is not of type Graphic3d_TOPA_QUADRANGLES.

Returns

the actual edges number

AddQuadTriangleEdges() [1/2]

int Graphic3d_ArrayOfPrimitives::AddQuadTriangleEdges ( const NCollection_Vec4< int > & theIndexes )

inline

Convenience method, adds quad indices in the range [1,VertexNumber()] into array or triangles as two triangles. Raises exception if array is not of type Graphic3d_TOPA_TRIANGLES.

Returns

the actual edges number

AddQuadTriangleEdges() [2/2]

int Graphic3d_ArrayOfPrimitives::AddQuadTriangleEdges ( int theVertexIndex1, int theVertexIndex2, int theVertexIndex3, int theVertexIndex4 )

inline

Convenience method, adds quad indices in the range [1,VertexNumber()] into array or triangles as two triangles. Raises exception if array is not of type Graphic3d_TOPA_TRIANGLES.

Returns

the actual edges number

AddSegmentEdges()

int Graphic3d_ArrayOfPrimitives::AddSegmentEdges ( int theVertexIndex1, int theVertexIndex2 )

inline

Convenience method, adds two vertex indices (a segment) in the range [1,VertexNumber()] in the array of segments (Graphic3d_TOPA_SEGMENTS). Raises exception if array is not of type Graphic3d_TOPA_SEGMENTS.

Returns

the actual edges number

AddTriangleEdges() [1/3]

int Graphic3d_ArrayOfPrimitives::AddTriangleEdges ( const NCollection_Vec3< int > & theIndexes )

inline

Convenience method, adds three vertex indices of triangle in the range [1,VertexNumber()] in the array of triangles. Raises exception if array is not of type Graphic3d_TOPA_TRIANGLES.

Returns

the actual edges number

AddTriangleEdges() [2/3]

int Graphic3d_ArrayOfPrimitives::AddTriangleEdges ( const NCollection_Vec4< int > & theIndexes )

inline

Convenience method, adds three vertex indices (4th component is ignored) of triangle in the range [1,VertexNumber()] in the array of triangles. Raises exception if array is not of type Graphic3d_TOPA_TRIANGLES.

Returns

the actual edges number

AddTriangleEdges() [3/3]

int Graphic3d_ArrayOfPrimitives::AddTriangleEdges ( int theVertexIndex1, int theVertexIndex2, int theVertexIndex3 )

inline

Convenience method, adds three vertex indices of triangle in the range [1,VertexNumber()] in the array of triangles. Raises exception if array is not of type Graphic3d_TOPA_TRIANGLES.

Returns

the actual edges number

AddTriangleFanEdges()

void Graphic3d_ArrayOfPrimitives::AddTriangleFanEdges	(	int	theVertexLower,
		int	theVertexUpper,
		bool	theToClose )

Add triangle fan into indexed triangulation array. N-2 triangles are added from N input nodes (or N-1 with closed flag). Raises exception if array is not of type Graphic3d_TOPA_TRIANGLES.

Parameters

[in]	theVertexLower	index of first node defining triangle fun (center)
[in]	theVertexUpper	index of last node defining triangle fun
[in]	theToClose	close triangle fan (connect first and last points)

AddTriangleStripEdges()

void Graphic3d_ArrayOfPrimitives::AddTriangleStripEdges	(	int	theVertexLower,
		int	theVertexUpper )

Add triangle strip into indexed triangulation array. N-2 triangles are added from N input nodes. Raises exception if array is not of type Graphic3d_TOPA_TRIANGLES.

Parameters

[in]	theVertexLower	index of first node defining triangle strip
[in]	theVertexUpper	index of last node defining triangle strip

AddVertex() [1/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const double theX, const double theY, const double theZ )

inline

Adds a vertice in the array.

Returns

the actual vertex number

AddVertex() [2/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const double theX, const double theY, const double theZ, const double theNX, const double theNY, const double theNZ )

inline

Adds a vertice and vertex normal in the vertex array. Warning: Normal is ignored when the hasVNormals constructor parameter is FALSE.

Returns

the actual vertex number

AddVertex() [3/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const double theX, const double theY, const double theZ, const double theNX, const double theNY, const double theNZ, const double theTX, const double theTY )

inline

Adds a vertice,vertex normal and texture in the vertex array. Warning: Normal is ignored when the hasVNormals constructor parameter is FALSE and Texel is ignored when the hasVTexels constructor parameter is FALSE.

Returns

the actual vertex number

AddVertex() [4/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const double theX, const double theY, const double theZ, const double theTX, const double theTY )

inline

Adds a vertice and vertex texture coordinates in the vertex array. Texel is ignored when the hasVTexels constructor parameter is FALSE.

Returns

the actual vertex number

AddVertex() [5/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const float theX, const float theY, const float theZ )

inline

Adds a vertice in the array.

Returns

the actual vertex number.

AddVertex() [6/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const float theX, const float theY, const float theZ, const float theNX, const float theNY, const float theNZ )

inline

Adds a vertice and vertex normal in the vertex array. Warning: Normal is ignored when the hasVNormals constructor parameter is FALSE.

Returns

the actual vertex number

AddVertex() [7/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const float theX, const float theY, const float theZ, const float theNX, const float theNY, const float theNZ, const float theTX, const float theTY )

inline

Adds a vertice,vertex normal and texture in the vertex array. Warning: Normal is ignored when the hasVNormals constructor parameter is FALSE and Texel is ignored when the hasVTexels constructor parameter is FALSE.

Returns

the actual vertex number

AddVertex() [8/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const float theX, const float theY, const float theZ, const float theTX, const float theTY )

inline

Adds a vertice and vertex texture coordinates in the vertex array. Texel is ignored when the hasVTexels constructor parameter is FALSE.

Returns

the actual vertex number

AddVertex() [9/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const gp_Pnt & theVertex )

inline

Adds a vertice in the array.

Returns

the actual vertex number

AddVertex() [10/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const gp_Pnt & theVertex, const gp_Dir & theNormal )

inline

Adds a vertice and vertex normal in the vertex array. Warning: theNormal is ignored when the hasVNormals constructor parameter is FALSE.

Returns

the actual vertex number

AddVertex() [11/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const gp_Pnt & theVertex, const gp_Dir & theNormal, const gp_Pnt2d & theTexel )

inline

Adds a vertice,vertex normal and texture in the vertex array. Warning: theNormal is ignored when the hasVNormals constructor parameter is FALSE and theTexel is ignored when the hasVTexels constructor parameter is FALSE.

Returns

the actual vertex number

AddVertex() [12/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const gp_Pnt & theVertex, const gp_Dir & theNormal, const int theColor32 )

inline

Adds a vertice,vertex normal and color in the vertex array. Warning: theNormal is ignored when the hasVNormals constructor parameter is FALSE and theColor is ignored when the hasVColors constructor parameter is FALSE.

theColor32 = Alpha << 24 + Blue << 16 + Green << 8 + Red

Returns

the actual vertex number

AddVertex() [13/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const gp_Pnt & theVertex, const gp_Dir & theNormal, const Quantity_Color & theColor )

inline

Adds a vertice,vertex normal and color in the vertex array. Warning: theNormal is ignored when the hasVNormals constructor parameter is FALSE and theColor is ignored when the hasVColors constructor parameter is FALSE.

Returns

the actual vertex number

AddVertex() [14/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const gp_Pnt & theVertex, const gp_Pnt2d & theTexel )

inline

Adds a vertice and vertex texture in the vertex array. theTexel is ignored when the hasVTexels constructor parameter is FALSE.

Returns

the actual vertex number

AddVertex() [15/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const gp_Pnt & theVertex, const int theColor32 )

inline

Adds a vertice and vertex color in the vertex array. Warning: theColor is ignored when the hasVColors constructor parameter is FALSE.

theColor32 = Alpha << 24 + Blue << 16 + Green << 8 + Red

Returns

the actual vertex number

AddVertex() [16/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const gp_Pnt & theVertex, const NCollection_Vec4< uint8_t > & theColor )

inline

Adds a vertice and vertex color in the vertex array. Warning: theColor is ignored when the hasVColors constructor parameter is FALSE.

Returns

the actual vertex number

AddVertex() [17/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const gp_Pnt & theVertex, const Quantity_Color & theColor )

inline

Adds a vertice and vertex color in the vertex array. Warning: theColor is ignored when the hasVColors constructor parameter is FALSE.

Returns

the actual vertex number

AddVertex() [18/18]

int Graphic3d_ArrayOfPrimitives::AddVertex ( const NCollection_Vec3< float > & theVertex )

inline

Adds a vertice in the array.

Returns

the actual vertex number

Attributes()

const occ::handle< Graphic3d_Buffer > & Graphic3d_ArrayOfPrimitives::Attributes ( ) const

inline

Returns vertex attributes buffer (colors, normals, texture coordinates).

Bound()

int Graphic3d_ArrayOfPrimitives::Bound ( const int theRank ) const

inline

Returns the edge number at rank theRank.

BoundColor() [1/2]

Quantity_Color Graphic3d_ArrayOfPrimitives::BoundColor ( const int theRank ) const

inline

Returns the bound color at rank theRank from the bound table if defined.

BoundColor() [2/2]

void Graphic3d_ArrayOfPrimitives::BoundColor ( const int theRank, double & theR, double & theG, double & theB ) const

inline

Returns the bound color values at rank theRank from the bound table if defined.

BoundNumber()

int Graphic3d_ArrayOfPrimitives::BoundNumber ( ) const

inline

Returns the number of defined bounds.

BoundNumberAllocated()

int Graphic3d_ArrayOfPrimitives::BoundNumberAllocated ( ) const

inline

Returns the number of allocated bounds.

Bounds()

const occ::handle< Graphic3d_BoundBuffer > & Graphic3d_ArrayOfPrimitives::Bounds ( ) const

inline

Returns TRUE when bound colors array is defined.

CreateArray() [1/2]

static occ::handle< Graphic3d_ArrayOfPrimitives > Graphic3d_ArrayOfPrimitives::CreateArray ( Graphic3d_TypeOfPrimitiveArray theType, int theMaxVertexs, int theMaxBounds, int theMaxEdges, Graphic3d_ArrayFlags theArrayFlags )

static

Create an array of specified type.

CreateArray() [2/2]

static occ::handle< Graphic3d_ArrayOfPrimitives > Graphic3d_ArrayOfPrimitives::CreateArray ( Graphic3d_TypeOfPrimitiveArray theType, int theMaxVertexs, int theMaxEdges, Graphic3d_ArrayFlags theArrayFlags )

inlinestatic

Create an array of specified type.

Edge()

int Graphic3d_ArrayOfPrimitives::Edge ( const int theRank ) const

inline

Returns the vertex index at rank theRank in the range [1,EdgeNumber()].

EdgeNumber()

int Graphic3d_ArrayOfPrimitives::EdgeNumber ( ) const

inline

Returns the number of defined edges.

EdgeNumberAllocated()

int Graphic3d_ArrayOfPrimitives::EdgeNumberAllocated ( ) const

inline

Returns the number of allocated edges.

HasBoundColors()

bool Graphic3d_ArrayOfPrimitives::HasBoundColors ( ) const

inline

Returns TRUE when bound colors array is defined.

HasVertexColors()

bool Graphic3d_ArrayOfPrimitives::HasVertexColors ( ) const

inline

Returns TRUE when vertex colors array is defined.

HasVertexNormals()

bool Graphic3d_ArrayOfPrimitives::HasVertexNormals ( ) const

inline

Returns TRUE when vertex normals array is defined.

HasVertexTexels()

bool Graphic3d_ArrayOfPrimitives::HasVertexTexels ( ) const

inline

Returns TRUE when vertex texels array is defined.

Indices()

const occ::handle< Graphic3d_IndexBuffer > & Graphic3d_ArrayOfPrimitives::Indices ( ) const

inline

Returns the number of defined edges.

init()

void Graphic3d_ArrayOfPrimitives::init ( Graphic3d_TypeOfPrimitiveArray theType, int theMaxVertexs, int theMaxBounds, int theMaxEdges, Graphic3d_ArrayFlags theArrayFlags )

protected

Array constructor.

IsValid()

bool Graphic3d_ArrayOfPrimitives::IsValid

(

)

Returns TRUE only when the contains of this array is available.

ItemNumber()

int Graphic3d_ArrayOfPrimitives::ItemNumber

(

)

const

Returns the number of total items according to the array type.

SetBoundColor() [1/2]

void Graphic3d_ArrayOfPrimitives::SetBoundColor ( const int theIndex, const double theR, const double theG, const double theB )

inline

Change the bound color of rank theIndex in the array.

SetBoundColor() [2/2]

void Graphic3d_ArrayOfPrimitives::SetBoundColor ( const int theIndex, const Quantity_Color & theColor )

inline

Change the bound color of rank theIndex in the array.

SetVertexColor() [1/4]

void Graphic3d_ArrayOfPrimitives::SetVertexColor ( const int theIndex, const double theR, const double theG, const double theB )

inline

Change the vertex color in the array.

Parameters

[in]	theIndex	node index within [1, VertexNumberAllocated()] range
[in]	theR	red color value within [0, 1] range
[in]	theG	green color value within [0, 1] range
[in]	theB	blue color value within [0, 1] range

SetVertexColor() [2/4]

void Graphic3d_ArrayOfPrimitives::SetVertexColor ( const int theIndex, const int theColor32 )

inline

Change the vertex color in the array.

theColor32 = Alpha << 24 + Blue << 16 + Green << 8 + Red

Parameters

[in]	theIndex	node index within [1, VertexNumberAllocated()] range
[in]	theColor32	packed RGBA color values

SetVertexColor() [3/4]

void Graphic3d_ArrayOfPrimitives::SetVertexColor ( const int theIndex, const NCollection_Vec4< uint8_t > & theColor )

inline

Change the vertex color in the array.

Parameters

[in]	theIndex	node index within [1, VertexNumberAllocated()] range
[in]	theColor	node RGBA color values within [0, 255] range

SetVertexColor() [4/4]

void Graphic3d_ArrayOfPrimitives::SetVertexColor ( const int theIndex, const Quantity_Color & theColor )

inline

Change the vertex color in the array.

Parameters

[in]	theIndex	node index within [1, VertexNumberAllocated()] range
[in]	theColor	node color

SetVertexNormal() [1/2]

void Graphic3d_ArrayOfPrimitives::SetVertexNormal ( const int theIndex, const double theNX, const double theNY, const double theNZ )

inline

Change the vertex normal in the array.

Parameters

[in]	theIndex	node index within [1, VertexNumberAllocated()] range
[in]	theNX	surface normal X component
[in]	theNY	surface normal Y component
[in]	theNZ	surface normal Z component

SetVertexNormal() [2/2]

void Graphic3d_ArrayOfPrimitives::SetVertexNormal ( const int theIndex, const gp_Dir & theNormal )

inline

Change the vertex normal in the array.

Parameters

[in]	theIndex	node index within [1, VertexNumberAllocated()] range
[in]	theNormal	normalized surface normal

SetVertexTexel() [1/2]

void Graphic3d_ArrayOfPrimitives::SetVertexTexel ( const int theIndex, const double theTX, const double theTY )

inline

Change the vertex texel in the array.

Parameters

[in]	theIndex	node index within [1, VertexNumberAllocated()] range
[in]	theTX	node U coordinate
[in]	theTY	node V coordinate

SetVertexTexel() [2/2]

void Graphic3d_ArrayOfPrimitives::SetVertexTexel ( const int theIndex, const gp_Pnt2d & theTexel )

inline

Change the vertex texel in the array.

Parameters

[in]	theIndex	node index within [1, VertexNumberAllocated()] range
[in]	theTexel	node UV coordinates

SetVertice() [1/2]

void Graphic3d_ArrayOfPrimitives::SetVertice ( const int theIndex, const float theX, const float theY, const float theZ )

inline

Change the vertice in the array.

Parameters

[in]	theIndex	node index within [1, VertexNumberAllocated()] range
[in]	theX	coordinate X
[in]	theY	coordinate Y
[in]	theZ	coordinate Z

SetVertice() [2/2]

void Graphic3d_ArrayOfPrimitives::SetVertice ( const int theIndex, const gp_Pnt & theVertex )

inline

Change the vertice of rank theIndex in the array.

Parameters

[in]	theIndex	node index within [1, VertexNumberAllocated()] range
[in]	theVertex	3D coordinates

StringType()

const char * Graphic3d_ArrayOfPrimitives::StringType

(

)

const

Returns the string type of this primitive.

Type()

Graphic3d_TypeOfPrimitiveArray Graphic3d_ArrayOfPrimitives::Type ( ) const

inline

Returns the type of this primitive.

VertexColor() [1/4]

void Graphic3d_ArrayOfPrimitives::VertexColor ( const int theIndex, NCollection_Vec4< uint8_t > & theColor ) const

inline

Returns the vertex color from the vertex table if defined.

Parameters

[in]	theIndex	node index within [1, VertexNumber()] range
[out]	theColor	node RGBA color values within [0, 255] range

VertexColor() [2/4]

Quantity_Color Graphic3d_ArrayOfPrimitives::VertexColor ( const int theRank ) const

inline

Returns the vertex color at rank theRank from the vertex table if defined.

Parameters

[in]

theRank

node index within [1, VertexNumber()] range

Returns

node color RGB value

VertexColor() [3/4]

void Graphic3d_ArrayOfPrimitives::VertexColor ( const int theRank, double & theR, double & theG, double & theB ) const

inline

Returns the vertex color values from the vertex table if defined.

Parameters

[in]	theRank	node index within [1, VertexNumber()] range
[out]	theR	node red color component value within [0, 1] range
[out]	theG	node green color component value within [0, 1] range
[out]	theB	node blue color component value within [0, 1] range

VertexColor() [4/4]

void Graphic3d_ArrayOfPrimitives::VertexColor ( const int theRank, int & theColor ) const

inline

Returns the vertex color values from the vertex table if defined.

Parameters

[in]	theRank	node index within [1, VertexNumber()] range
[out]	theColor	node RGBA color packed into 32-bit integer

VertexNormal() [1/2]

gp_Dir Graphic3d_ArrayOfPrimitives::VertexNormal ( const int theRank ) const

inline

Returns the vertex normal from the vertex table if defined.

Parameters

[in]

theRank

node index within [1, VertexNumber()] range

Returns

normalized 3D vector defining surface normal

VertexNormal() [2/2]

void Graphic3d_ArrayOfPrimitives::VertexNormal ( const int theRank, double & theNX, double & theNY, double & theNZ ) const

inline

Returns the vertex normal coordinates at rank theRank from the vertex table if defined.

Parameters

[in]	theRank	node index within [1, VertexNumber()] range
[out]	theNX	normal X coordinate
[out]	theNY	normal Y coordinate
[out]	theNZ	normal Z coordinate

VertexNumber()

int Graphic3d_ArrayOfPrimitives::VertexNumber ( ) const

inline

Returns the number of defined vertex.

VertexNumberAllocated()

int Graphic3d_ArrayOfPrimitives::VertexNumberAllocated ( ) const

inline

Returns the number of allocated vertex.

VertexTexel() [1/2]

gp_Pnt2d Graphic3d_ArrayOfPrimitives::VertexTexel ( const int theRank ) const

inline

Returns the vertex texture at rank theRank from the vertex table if defined.

Parameters

[in]

theRank

node index within [1, VertexNumber()] range

Returns

UV coordinates

VertexTexel() [2/2]

void Graphic3d_ArrayOfPrimitives::VertexTexel ( const int theRank, double & theTX, double & theTY ) const

inline

Returns the vertex texture coordinates at rank theRank from the vertex table if defined.

Parameters

[in]	theRank	node index within [1, VertexNumber()] range
[out]	theTX	texel U coordinate value
[out]	theTY	texel V coordinate value

Vertice() [1/2]

gp_Pnt Graphic3d_ArrayOfPrimitives::Vertice ( const int theRank ) const

inline

Returns the vertice from the vertex table if defined.

Parameters

[in]

theRank

node index within [1, VertexNumber()] range

Returns

node 3D coordinates

Vertice() [2/2]

void Graphic3d_ArrayOfPrimitives::Vertice ( const int theRank, double & theX, double & theY, double & theZ ) const

inline

Returns the vertice coordinates at rank theRank from the vertex table if defined.

Parameters

[in]	theRank	node index within [1, VertexNumber()] range
[out]	theX	node X coordinate value
[out]	theY	node Y coordinate value
[out]	theZ	node Z coordinate value

---

The documentation for this class was generated from the following file:

• Graphic3d_ArrayOfPrimitives.hxx
