This is the texture root class enable the dialog with the GraphicDriver allows the loading of texture. More...

#include <Graphic3d_TextureRoot.hxx>

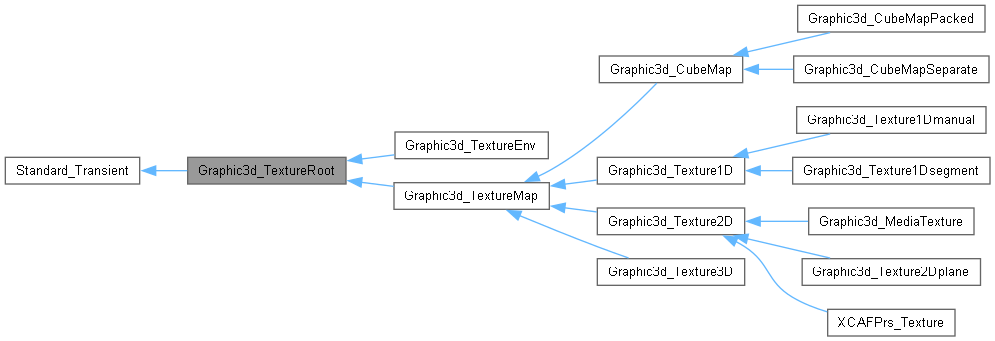

Inheritance diagram for Graphic3d_TextureRoot:

[legend]

Public Member Functions
	~Graphic3d_TextureRoot () override
	Destructor.

virtual bool	IsDone () const
	Checks if a texture class is valid or not.

const OSD_Path &	Path () const
	Returns the full path of the defined texture. It could be empty path if GetImage() is overridden to load image not from file.

Graphic3d_TypeOfTexture	Type () const

const TCollection_AsciiString &	GetId () const
	This ID will be used to manage resource in graphic driver.

size_t	Revision () const
	Return image revision.

void	UpdateRevision ()
	Update image revision. Can be used for signaling changes in the texture source (e.g. file update, pixmap update) without re-creating texture source itself (since unique id should be never modified).

virtual occ::handle< Image_CompressedPixMap >	GetCompressedImage (const occ::handle< Image_SupportedFormats > &theSupported)
	This method will be called by graphic driver each time when texture resource should be created. It is called in front of GetImage() for uploading compressed image formats natively supported by GPU.

virtual occ::handle< Image_PixMap >	GetImage (const occ::handle< Image_SupportedFormats > &theSupported)
	This method will be called by graphic driver each time when texture resource should be created. Default constructors allow defining the texture source as path to texture image or directly as pixmap. If the source is defined as path, then the image will be dynamically loaded when this method is called (and no copy will be preserved in this class instance). Inheritors may dynamically generate the image. Notice, image data should be in Bottom-Up order (see Image_PixMap::IsTopDown())!

const occ::handle< Graphic3d_TextureParams > &	GetParams () const

bool	IsColorMap () const
	Return flag indicating color nature of values within the texture; TRUE by default.

void	SetColorMap (bool theIsColor)
	Set flag indicating color nature of values within the texture.

bool	HasMipmaps () const
	Returns whether mipmaps should be generated or not.

void	SetMipmapsGeneration (bool theToGenerateMipmaps)
	Sets whether to generate mipmaps or not.

bool	IsTopDown () const
	Returns whether row's memory layout is top-down.

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()=default
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.

bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

int	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.

int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.

virtual void	Delete () const
	Memory deallocator for transient classes.

Static Public Member Functions
static TCollection_AsciiString	TexturesFolder ()
	The path to textures determined from CSF_MDTVTexturesDirectory or CASROOT environment variables.

Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Protected Member Functions
	Graphic3d_TextureRoot (const TCollection_AsciiString &theFileName, const Graphic3d_TypeOfTexture theType)
	Creates a texture from a file Warning: Note that if <FileName> is NULL the texture must be realized using LoadTexture(image) method.

	Graphic3d_TextureRoot (const occ::handle< Image_PixMap > &thePixmap, const Graphic3d_TypeOfTexture theType)
	Creates a texture from pixmap. Please note that the implementation expects the image data to be in Bottom-Up order (see Image_PixMap::IsTopDown()).

void	generateId ()
	Unconditionally generate new texture id. Should be called only within constructor.

virtual occ::handle< Image_PixMap >	GetImage () const
	Method for supporting old API; another GetImage() method should be implemented instead.

Static Protected Member Functions
static void	convertToCompatible (const occ::handle< Image_SupportedFormats > &theSupported, const occ::handle< Image_PixMap > &theImage)
	Try converting image to compatible format.

Protected Attributes
occ::handle< Graphic3d_TextureParams >	myParams
	associated texture parameters

TCollection_AsciiString	myTexId
	unique identifier of this resource (for sharing graphic resource); should never be modified outside constructor

occ::handle< Image_PixMap >	myPixMap
	image pixmap - as one of the ways for defining the texture source

OSD_Path	myPath
	image file path - as one of the ways for defining the texture source

size_t	myRevision
	image revision - for signaling changes in the texture source (e.g. file update, pixmap update)

Graphic3d_TypeOfTexture	myType
	texture type

bool	myIsColorMap
	flag indicating color nature of values within the texture

bool	myIsTopDown
	Stores rows's memory layout.

bool	myHasMipmaps
	Indicates whether mipmaps should be generated or not.

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Detailed Description

This is the texture root class enable the dialog with the GraphicDriver allows the loading of texture.

Constructor & Destructor Documentation

◆ ~Graphic3d_TextureRoot()

Graphic3d_TextureRoot::~Graphic3d_TextureRoot ( )

override

Destructor.

◆ Graphic3d_TextureRoot() [1/2]

Graphic3d_TextureRoot::Graphic3d_TextureRoot	(	const TCollection_AsciiString &	theFileName,
		const Graphic3d_TypeOfTexture	theType )

protected

Creates a texture from a file Warning: Note that if <FileName> is NULL the texture must be realized using LoadTexture(image) method.

◆ Graphic3d_TextureRoot() [2/2]

Graphic3d_TextureRoot::Graphic3d_TextureRoot	(	const occ::handle< Image_PixMap > &	thePixmap,
		const Graphic3d_TypeOfTexture	theType )

protected

Creates a texture from pixmap. Please note that the implementation expects the image data to be in Bottom-Up order (see Image_PixMap::IsTopDown()).

Member Function Documentation

◆ convertToCompatible()

static void Graphic3d_TextureRoot::convertToCompatible	(	const occ::handle< Image_SupportedFormats > &	theSupported,
		const occ::handle< Image_PixMap > &	theImage )

staticprotected

Try converting image to compatible format.

◆ generateId()

void Graphic3d_TextureRoot::generateId ( )

protected

Unconditionally generate new texture id. Should be called only within constructor.

◆ GetCompressedImage()

virtual occ::handle< Image_CompressedPixMap > Graphic3d_TextureRoot::GetCompressedImage ( const occ::handle< Image_SupportedFormats > & theSupported )

virtual

This method will be called by graphic driver each time when texture resource should be created. It is called in front of GetImage() for uploading compressed image formats natively supported by GPU.

Parameters

[in] theSupported the list of supported compressed texture formats; returning image in unsupported format will result in texture upload failure

Returns: compressed pixmap or NULL if image is not in supported compressed format

Reimplemented in XCAFPrs_Texture.

◆ GetId()

const TCollection_AsciiString & Graphic3d_TextureRoot::GetId ( ) const

inline

This ID will be used to manage resource in graphic driver.

Default implementation generates unique ID within constructor; inheritors may re-initialize it within their constructor, but should never modify it afterwards.

Multiple Graphic3d_TextureRoot instances with same ID will be treated as single texture with different parameters to optimize memory usage though this will be more natural to use same instance of Graphic3d_TextureRoot when possible.

If this ID is set to empty string by inheritor, then independent graphical resource will be created for each instance of Graphic3d_AspectFillArea3d where texture will be used.

Returns: texture identifier.

◆ GetImage() [1/2]

virtual occ::handle< Image_PixMap > Graphic3d_TextureRoot::GetImage ( ) const

inlineprotectedvirtual

Method for supporting old API; another GetImage() method should be implemented instead.

◆ GetImage() [2/2]

virtual occ::handle< Image_PixMap > Graphic3d_TextureRoot::GetImage ( const occ::handle< Image_SupportedFormats > & theSupported )

virtual

This method will be called by graphic driver each time when texture resource should be created. Default constructors allow defining the texture source as path to texture image or directly as pixmap. If the source is defined as path, then the image will be dynamically loaded when this method is called (and no copy will be preserved in this class instance). Inheritors may dynamically generate the image. Notice, image data should be in Bottom-Up order (see Image_PixMap::IsTopDown())!

Returns: the image for texture.

Reimplemented in Graphic3d_CubeMapSeparate, XCAFPrs_Texture, Graphic3d_MediaTexture, and Graphic3d_Texture3D.

◆ GetParams()

const occ::handle< Graphic3d_TextureParams > & Graphic3d_TextureRoot::GetParams ( ) const

inline

Returns: low-level texture parameters

◆ HasMipmaps()

bool Graphic3d_TextureRoot::HasMipmaps ( ) const

inline

Returns whether mipmaps should be generated or not.

◆ IsColorMap()

bool Graphic3d_TextureRoot::IsColorMap ( ) const

inline

Return flag indicating color nature of values within the texture; TRUE by default.

This flag will be used to interpret 8-bit per channel RGB(A) images as sRGB(A) textures with implicit linearizion of color components. Has no effect on images with floating point values (always considered linearized).

When set to FALSE, such images will be interpreted as textures will be linear component values, which is useful for RGB(A) textures defining non-color properties (like Normalmap/Metalness/Roughness).

◆ IsDone()

virtual bool Graphic3d_TextureRoot::IsDone ( ) const

virtual

Checks if a texture class is valid or not.

Returns: true if the construction of the class is correct

Reimplemented in Graphic3d_CubeMapSeparate.

◆ IsTopDown()

bool Graphic3d_TextureRoot::IsTopDown ( ) const

inline

Returns whether row's memory layout is top-down.

◆ Path()

const OSD_Path & Graphic3d_TextureRoot::Path ( ) const

inline

Returns the full path of the defined texture. It could be empty path if GetImage() is overridden to load image not from file.

◆ Revision()

size_t Graphic3d_TextureRoot::Revision ( ) const

inline

Return image revision.

◆ SetColorMap()

void Graphic3d_TextureRoot::SetColorMap ( bool theIsColor )

inline

Set flag indicating color nature of values within the texture.

◆ SetMipmapsGeneration()

void Graphic3d_TextureRoot::SetMipmapsGeneration ( bool theToGenerateMipmaps )

inline

Sets whether to generate mipmaps or not.

◆ TexturesFolder()

static TCollection_AsciiString Graphic3d_TextureRoot::TexturesFolder ( )

static

The path to textures determined from CSF_MDTVTexturesDirectory or CASROOT environment variables.

Returns: the root folder with default textures.

◆ Type()

Graphic3d_TypeOfTexture Graphic3d_TextureRoot::Type ( ) const

inline

Returns: the texture type.

◆ UpdateRevision()

void Graphic3d_TextureRoot::UpdateRevision ( )

inline

Update image revision. Can be used for signaling changes in the texture source (e.g. file update, pixmap update) without re-creating texture source itself (since unique id should be never modified).

Field Documentation

◆ myHasMipmaps

bool Graphic3d_TextureRoot::myHasMipmaps

protected

Indicates whether mipmaps should be generated or not.

◆ myIsColorMap

bool Graphic3d_TextureRoot::myIsColorMap

protected

flag indicating color nature of values within the texture

◆ myIsTopDown

bool Graphic3d_TextureRoot::myIsTopDown

protected

Stores rows's memory layout.

◆ myParams

occ::handle<Graphic3d_TextureParams> Graphic3d_TextureRoot::myParams

protected

associated texture parameters

◆ myPath

OSD_Path Graphic3d_TextureRoot::myPath

protected

image file path - as one of the ways for defining the texture source

◆ myPixMap

occ::handle<Image_PixMap> Graphic3d_TextureRoot::myPixMap

protected

image pixmap - as one of the ways for defining the texture source

◆ myRevision

size_t Graphic3d_TextureRoot::myRevision

protected

image revision - for signaling changes in the texture source (e.g. file update, pixmap update)

◆ myTexId

TCollection_AsciiString Graphic3d_TextureRoot::myTexId

protected

unique identifier of this resource (for sharing graphic resource); should never be modified outside constructor

◆ myType

Graphic3d_TypeOfTexture Graphic3d_TextureRoot::myType

protected

texture type

The documentation for this class was generated from the following file:

Graphic3d_TextureRoot.hxx

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~Graphic3d_TextureRoot()

◆ Graphic3d_TextureRoot() [1/2]

◆ Graphic3d_TextureRoot() [2/2]

Member Function Documentation

◆ convertToCompatible()

◆ generateId()

◆ GetCompressedImage()

◆ GetId()

◆ GetImage() [1/2]

◆ GetImage() [2/2]

◆ GetParams()

◆ HasMipmaps()

◆ IsColorMap()

◆ IsDone()

◆ IsTopDown()

◆ Path()

◆ Revision()

◆ SetColorMap()

◆ SetMipmapsGeneration()

◆ TexturesFolder()

◆ Type()

◆ UpdateRevision()

Field Documentation

◆ myHasMipmaps

◆ myIsColorMap

◆ myIsTopDown

◆ myParams

◆ myPath

◆ myPixMap

◆ myRevision

◆ myTexId

◆ myType
