SelectMgr_BaseIntersector Class Reference

This class is an interface for different types of selecting intersector, defining different selection types, like point, box or polyline selection. It contains signatures of functions for detection of overlap by sensitive entity and initializes some data for building the selecting intersector. More...

#include <SelectMgr_BaseIntersector.hxx>

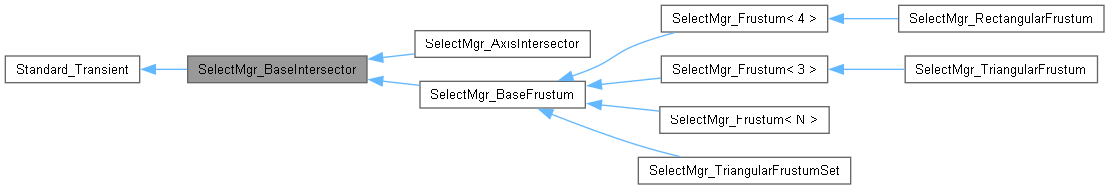

Inheritance diagram for SelectMgr_BaseIntersector:

Public Member Functions
	SelectMgr_BaseIntersector ()
	Creates new empty selecting volume.
	~SelectMgr_BaseIntersector () override
	Destructor.
virtual void	Build ()=0
	Builds intersector according to internal parameters.
SelectMgr_SelectionType	GetSelectionType () const
	Returns selection type of this intersector.
virtual bool	IsScalable () const =0
	Checks if it is possible to scale this intersector.
virtual void	SetPixelTolerance (const int theTol)
	Sets pixel tolerance. It makes sense only for scalable intersectors (built on a single point). This method does nothing for the base class.
virtual occ::handle< SelectMgr_BaseIntersector >	ScaleAndTransform (const int theScaleFactor, const gp_GTrsf &theTrsf, const occ::handle< SelectMgr_FrustumBuilder > &theBuilder) const =0
	Note that this method does not perform any checks on type of the frustum.
virtual occ::handle< SelectMgr_BaseIntersector >	CopyWithBuilder (const occ::handle< SelectMgr_FrustumBuilder > &theBuilder) const =0
const occ::handle< Graphic3d_Camera > &	Camera () const
	Return camera definition.
virtual void	SetCamera (const occ::handle< Graphic3d_Camera > &theCamera)
	Saves camera definition.
virtual void	WindowSize (int &theWidth, int &theHeight) const
	Returns current window size. This method doesn't set any output values for the base class.
virtual void	SetWindowSize (const int theWidth, const int theHeight)
	Sets current window size. This method does nothing for the base class.
virtual void	SetViewport (const double theX, const double theY, const double theWidth, const double theHeight)
	Sets viewport parameters. This method does nothing for the base class.
virtual const gp_Pnt &	GetNearPnt () const
	Returns near point of intersector. This method returns zero point for the base class.
virtual const gp_Pnt &	GetFarPnt () const
	Returns far point of intersector. This method returns zero point for the base class.
virtual const gp_Dir &	GetViewRayDirection () const
	Returns direction ray of intersector. This method returns zero direction for the base class.
virtual const gp_Pnt2d &	GetMousePosition () const
	Returns current mouse coordinates. This method returns infinite point for the base class.
virtual void	GetPlanes (NCollection_DynamicArray< NCollection_Vec4< double > > &thePlaneEquations) const
	Stores plane equation coefficients (in the following form: Ax + By + Cz + D = 0) to the given vector. This method only clears input vector for the base class.
virtual bool	OverlapsBox (const NCollection_Vec3< double > &theBoxMin, const NCollection_Vec3< double > &theBoxMax, const SelectMgr_ViewClipRange &theClipRange, SelectBasics_PickResult &thePickResult) const =0
	SAT intersection test between defined volume and given axis-aligned box.
virtual bool	OverlapsBox (const NCollection_Vec3< double > &theBoxMin, const NCollection_Vec3< double > &theBoxMax, bool *theInside=nullptr) const =0
	Returns true if selecting volume is overlapped by axis-aligned bounding box with minimum corner at point theMinPt and maximum at point theMaxPt.
virtual bool	OverlapsPoint (const gp_Pnt &thePnt, const SelectMgr_ViewClipRange &theClipRange, SelectBasics_PickResult &thePickResult) const =0
	Intersection test between defined volume and given point.
virtual bool	OverlapsPoint (const gp_Pnt &thePnt) const =0
	Intersection test between defined volume and given point Does not perform depth calculation, so this method is defined as helper function for inclusion test. Therefore, its implementation makes sense only for rectangular frustum with box selection mode activated.
virtual bool	OverlapsPolygon (const NCollection_Array1< gp_Pnt > &theArrayOfPnts, Select3D_TypeOfSensitivity theSensType, const SelectMgr_ViewClipRange &theClipRange, SelectBasics_PickResult &thePickResult) const =0
	SAT intersection test between defined volume and given ordered set of points, representing line segments. The test may be considered of interior part or boundary line defined by segments depending on given sensitivity type.
virtual bool	OverlapsSegment (const gp_Pnt &thePnt1, const gp_Pnt &thePnt2, const SelectMgr_ViewClipRange &theClipRange, SelectBasics_PickResult &thePickResult) const =0
	Checks if line segment overlaps selecting frustum.
virtual bool	OverlapsTriangle (const gp_Pnt &thePnt1, const gp_Pnt &thePnt2, const gp_Pnt &thePnt3, Select3D_TypeOfSensitivity theSensType, const SelectMgr_ViewClipRange &theClipRange, SelectBasics_PickResult &thePickResult) const =0
	SAT intersection test between defined volume and given triangle. The test may be considered of interior part or boundary line defined by triangle vertices depending on given sensitivity type.
virtual bool	OverlapsSphere (const gp_Pnt &theCenter, const double theRadius, bool *theInside=nullptr) const =0
	Returns true if selecting volume is overlapped by sphere with center theCenter and radius theRadius.
virtual bool	OverlapsSphere (const gp_Pnt &theCenter, const double theRadius, const SelectMgr_ViewClipRange &theClipRange, SelectBasics_PickResult &thePickResult) const =0
	Returns true if selecting volume is overlapped by sphere with center theCenter and radius theRadius.
virtual bool	OverlapsCylinder (const double theBottomRad, const double theTopRad, const double theHeight, const gp_Trsf &theTrsf, const bool theIsHollow, const SelectMgr_ViewClipRange &theClipRange, SelectBasics_PickResult &thePickResult) const =0
	Returns true if selecting volume is overlapped by cylinder (or cone) with radiuses theBottomRad and theTopRad, height theHeight and transformation to apply theTrsf.
virtual bool	OverlapsCylinder (const double theBottomRad, const double theTopRad, const double theHeight, const gp_Trsf &theTrsf, const bool theIsHollow, bool *theInside=nullptr) const =0
	Returns true if selecting volume is overlapped by cylinder (or cone) with radiuses theBottomRad and theTopRad, height theHeight and transformation to apply theTrsf.
virtual bool	OverlapsCircle (const double theBottomRad, const gp_Trsf &theTrsf, const bool theIsFilled, const SelectMgr_ViewClipRange &theClipRange, SelectBasics_PickResult &thePickResult) const =0
	Returns true if selecting volume is overlapped by circle with radius theRadius, boolean theIsFilled and transformation to apply theTrsf. The position and orientation of the circle are specified via theTrsf transformation for gp::XOY() with center in gp::Origin().
virtual bool	OverlapsCircle (const double theBottomRad, const gp_Trsf &theTrsf, const bool theIsFilled, bool *theInside=nullptr) const =0
	Returns true if selecting volume is overlapped by circle with radius theRadius, boolean theIsFilled and transformation to apply theTrsf. The position and orientation of the circle are specified via theTrsf transformation for gp::XOY() with center in gp::Origin().
virtual double	DistToGeometryCenter (const gp_Pnt &theCOG) const
	Measures distance between 3d projection of user-picked screen point and given point theCOG. It makes sense only for intersectors built on a single point. This method returns infinite value for the base class.
virtual gp_Pnt	DetectedPoint (const double theDepth) const
	Calculates the point on a view ray that was detected during the run of selection algo by given depth. It makes sense only for intersectors built on a single point. This method returns infinite point for the base class.
virtual void	DumpJson (Standard_OStream &theOStream, int theDepth=-1) const
	Dumps the content of me into the stream.
virtual bool	RaySphereIntersection (const gp_Pnt &theCenter, const double theRadius, const gp_Pnt &theLoc, const gp_Dir &theRayDir, double &theTimeEnter, double &theTimeLeave) const
	Checks whether the ray that starts at the point theLoc and directs with the direction theRayDir intersects with the sphere with center at theCenter and radius TheRadius.
virtual bool	RayCylinderIntersection (const double theBottomRadius, const double theTopRadius, const double theHeight, const gp_Pnt &theLoc, const gp_Dir &theRayDir, const bool theIsHollow, double &theTimeEnter, double &theTimeLeave) const
	Checks whether the ray that starts at the point theLoc and directs with the direction theRayDir intersects with the hollow cylinder (or cone)
virtual bool	RayCircleIntersection (const double theRadius, const gp_Pnt &theLoc, const gp_Dir &theRayDir, const bool theIsFilled, double &theTime) const
	Checks whether the ray that starts at the point theLoc and directs with the direction theRayDir intersects with the circle.
Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.
	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.
Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.
virtual	~Standard_Transient ()=default
	Destructor must be virtual.
virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.
bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.
bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.
bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.
int	GetRefCount () const noexcept
	Get the reference counter of this object.
void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.
int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.
virtual void	Delete () const
	Memory deallocator for transient classes.

Protected Attributes
occ::handle< Graphic3d_Camera >	myCamera
	camera definition (if builder isn't NULL it is the same as its camera)
SelectMgr_SelectionType	mySelectionType
	type of selection

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.
Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.
static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

This class is an interface for different types of selecting intersector, defining different selection types, like point, box or polyline selection. It contains signatures of functions for detection of overlap by sensitive entity and initializes some data for building the selecting intersector.

Constructor & Destructor Documentation

SelectMgr_BaseIntersector()

SelectMgr_BaseIntersector::SelectMgr_BaseIntersector

(

)

Creates new empty selecting volume.

~SelectMgr_BaseIntersector()

SelectMgr_BaseIntersector::~SelectMgr_BaseIntersector ( )

override

Destructor.

Member Function Documentation

Build()

virtual void SelectMgr_BaseIntersector::Build ( )

pure virtual

Builds intersector according to internal parameters.

Implemented in SelectMgr_AxisIntersector, SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustum, and SelectMgr_TriangularFrustumSet.

Camera()

const occ::handle< Graphic3d_Camera > & SelectMgr_BaseIntersector::Camera ( ) const

inline

Return camera definition.

CopyWithBuilder()

virtual occ::handle< SelectMgr_BaseIntersector > SelectMgr_BaseIntersector::CopyWithBuilder ( const occ::handle< SelectMgr_FrustumBuilder > & theBuilder ) const

pure virtual

Parameters

[in]

theBuilder

argument that represents corresponding settings for re-constructing transformed frustum from scratch; should NOT be NULL.

Returns

a copy of the frustum with the input builder assigned

Implemented in SelectMgr_AxisIntersector, SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustum, and SelectMgr_TriangularFrustumSet.

DetectedPoint()

virtual gp_Pnt SelectMgr_BaseIntersector::DetectedPoint ( const double theDepth ) const

virtual

Calculates the point on a view ray that was detected during the run of selection algo by given depth. It makes sense only for intersectors built on a single point. This method returns infinite point for the base class.

Reimplemented in SelectMgr_AxisIntersector, SelectMgr_RectangularFrustum, and SelectMgr_TriangularFrustumSet.

DistToGeometryCenter()

virtual double SelectMgr_BaseIntersector::DistToGeometryCenter ( const gp_Pnt & theCOG ) const

virtual

Measures distance between 3d projection of user-picked screen point and given point theCOG. It makes sense only for intersectors built on a single point. This method returns infinite value for the base class.

Reimplemented in SelectMgr_AxisIntersector, and SelectMgr_RectangularFrustum.

DumpJson()

virtual void SelectMgr_BaseIntersector::DumpJson ( Standard_OStream & theOStream, int theDepth = -1 ) const

virtual

Dumps the content of me into the stream.

Reimplemented in SelectMgr_AxisIntersector, SelectMgr_BaseFrustum, SelectMgr_Frustum< N >, SelectMgr_Frustum< 3 >, SelectMgr_Frustum< 4 >, SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustum, and SelectMgr_TriangularFrustumSet.

GetFarPnt()

virtual const gp_Pnt & SelectMgr_BaseIntersector::GetFarPnt ( ) const

virtual

Returns far point of intersector. This method returns zero point for the base class.

Reimplemented in SelectMgr_AxisIntersector, and SelectMgr_RectangularFrustum.

GetMousePosition()

virtual const gp_Pnt2d & SelectMgr_BaseIntersector::GetMousePosition ( ) const

virtual

Returns current mouse coordinates. This method returns infinite point for the base class.

Reimplemented in SelectMgr_RectangularFrustum.

GetNearPnt()

virtual const gp_Pnt & SelectMgr_BaseIntersector::GetNearPnt ( ) const

virtual

Returns near point of intersector. This method returns zero point for the base class.

Reimplemented in SelectMgr_AxisIntersector, and SelectMgr_RectangularFrustum.

GetPlanes()

virtual void SelectMgr_BaseIntersector::GetPlanes ( NCollection_DynamicArray< NCollection_Vec4< double > > & thePlaneEquations ) const

inlinevirtual

Stores plane equation coefficients (in the following form: Ax + By + Cz + D = 0) to the given vector. This method only clears input vector for the base class.

Reimplemented in SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustum, and SelectMgr_TriangularFrustumSet.

GetSelectionType()

SelectMgr_SelectionType SelectMgr_BaseIntersector::GetSelectionType ( ) const

inline

Returns selection type of this intersector.

GetViewRayDirection()

virtual const gp_Dir & SelectMgr_BaseIntersector::GetViewRayDirection ( ) const

virtual

Returns direction ray of intersector. This method returns zero direction for the base class.

Reimplemented in SelectMgr_AxisIntersector, and SelectMgr_RectangularFrustum.

IsScalable()

virtual bool SelectMgr_BaseIntersector::IsScalable ( ) const

pure virtual

Checks if it is possible to scale this intersector.

Implemented in SelectMgr_AxisIntersector, SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustum, and SelectMgr_TriangularFrustumSet.

OverlapsBox() [1/2]

virtual bool SelectMgr_BaseIntersector::OverlapsBox ( const NCollection_Vec3< double > & theBoxMin, const NCollection_Vec3< double > & theBoxMax, bool * theInside = nullptr ) const

pure virtual

Returns true if selecting volume is overlapped by axis-aligned bounding box with minimum corner at point theMinPt and maximum at point theMaxPt.

Implemented in SelectMgr_AxisIntersector, SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustumSet, and SelectMgr_TriangularFrustum.

OverlapsBox() [2/2]

virtual bool SelectMgr_BaseIntersector::OverlapsBox ( const NCollection_Vec3< double > & theBoxMin, const NCollection_Vec3< double > & theBoxMax, const SelectMgr_ViewClipRange & theClipRange, SelectBasics_PickResult & thePickResult ) const

pure virtual

SAT intersection test between defined volume and given axis-aligned box.

Implemented in SelectMgr_AxisIntersector, SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustum, and SelectMgr_TriangularFrustumSet.

OverlapsCircle() [1/2]

virtual bool SelectMgr_BaseIntersector::OverlapsCircle ( const double theBottomRad, const gp_Trsf & theTrsf, const bool theIsFilled, bool * theInside = nullptr ) const

pure virtual

Returns true if selecting volume is overlapped by circle with radius theRadius, boolean theIsFilled and transformation to apply theTrsf. The position and orientation of the circle are specified via theTrsf transformation for gp::XOY() with center in gp::Origin().

Implemented in SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustumSet, SelectMgr_AxisIntersector, and SelectMgr_TriangularFrustum.

OverlapsCircle() [2/2]

virtual bool SelectMgr_BaseIntersector::OverlapsCircle ( const double theBottomRad, const gp_Trsf & theTrsf, const bool theIsFilled, const SelectMgr_ViewClipRange & theClipRange, SelectBasics_PickResult & thePickResult ) const

pure virtual

Returns true if selecting volume is overlapped by circle with radius theRadius, boolean theIsFilled and transformation to apply theTrsf. The position and orientation of the circle are specified via theTrsf transformation for gp::XOY() with center in gp::Origin().

Implemented in SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustumSet, SelectMgr_AxisIntersector, and SelectMgr_TriangularFrustum.

OverlapsCylinder() [1/2]

virtual bool SelectMgr_BaseIntersector::OverlapsCylinder ( const double theBottomRad, const double theTopRad, const double theHeight, const gp_Trsf & theTrsf, const bool theIsHollow, bool * theInside = nullptr ) const

pure virtual

Returns true if selecting volume is overlapped by cylinder (or cone) with radiuses theBottomRad and theTopRad, height theHeight and transformation to apply theTrsf.

Implemented in SelectMgr_AxisIntersector, SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustum, and SelectMgr_TriangularFrustumSet.

OverlapsCylinder() [2/2]

virtual bool SelectMgr_BaseIntersector::OverlapsCylinder ( const double theBottomRad, const double theTopRad, const double theHeight, const gp_Trsf & theTrsf, const bool theIsHollow, const SelectMgr_ViewClipRange & theClipRange, SelectBasics_PickResult & thePickResult ) const

pure virtual

Returns true if selecting volume is overlapped by cylinder (or cone) with radiuses theBottomRad and theTopRad, height theHeight and transformation to apply theTrsf.

Implemented in SelectMgr_AxisIntersector, SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustum, and SelectMgr_TriangularFrustumSet.

OverlapsPoint() [1/2]

virtual bool SelectMgr_BaseIntersector::OverlapsPoint ( const gp_Pnt & thePnt ) const

pure virtual

Intersection test between defined volume and given point Does not perform depth calculation, so this method is defined as helper function for inclusion test. Therefore, its implementation makes sense only for rectangular frustum with box selection mode activated.

Implemented in SelectMgr_TriangularFrustum, SelectMgr_AxisIntersector, SelectMgr_RectangularFrustum, and SelectMgr_TriangularFrustumSet.

OverlapsPoint() [2/2]

virtual bool SelectMgr_BaseIntersector::OverlapsPoint ( const gp_Pnt & thePnt, const SelectMgr_ViewClipRange & theClipRange, SelectBasics_PickResult & thePickResult ) const

pure virtual

Intersection test between defined volume and given point.

Implemented in SelectMgr_AxisIntersector, SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustum, and SelectMgr_TriangularFrustumSet.

OverlapsPolygon()

virtual bool SelectMgr_BaseIntersector::OverlapsPolygon ( const NCollection_Array1< gp_Pnt > & theArrayOfPnts, Select3D_TypeOfSensitivity theSensType, const SelectMgr_ViewClipRange & theClipRange, SelectBasics_PickResult & thePickResult ) const

pure virtual

SAT intersection test between defined volume and given ordered set of points, representing line segments. The test may be considered of interior part or boundary line defined by segments depending on given sensitivity type.

Implemented in SelectMgr_AxisIntersector, SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustum, and SelectMgr_TriangularFrustumSet.

OverlapsSegment()

virtual bool SelectMgr_BaseIntersector::OverlapsSegment ( const gp_Pnt & thePnt1, const gp_Pnt & thePnt2, const SelectMgr_ViewClipRange & theClipRange, SelectBasics_PickResult & thePickResult ) const

pure virtual

Checks if line segment overlaps selecting frustum.

Implemented in SelectMgr_AxisIntersector, SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustum, and SelectMgr_TriangularFrustumSet.

OverlapsSphere() [1/2]

virtual bool SelectMgr_BaseIntersector::OverlapsSphere ( const gp_Pnt & theCenter, const double theRadius, bool * theInside = nullptr ) const

pure virtual

Returns true if selecting volume is overlapped by sphere with center theCenter and radius theRadius.

Implemented in SelectMgr_RectangularFrustum, SelectMgr_AxisIntersector, SelectMgr_TriangularFrustum, and SelectMgr_TriangularFrustumSet.

OverlapsSphere() [2/2]

virtual bool SelectMgr_BaseIntersector::OverlapsSphere ( const gp_Pnt & theCenter, const double theRadius, const SelectMgr_ViewClipRange & theClipRange, SelectBasics_PickResult & thePickResult ) const

pure virtual

Returns true if selecting volume is overlapped by sphere with center theCenter and radius theRadius.

Implemented in SelectMgr_AxisIntersector, SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustum, and SelectMgr_TriangularFrustumSet.

OverlapsTriangle()

virtual bool SelectMgr_BaseIntersector::OverlapsTriangle ( const gp_Pnt & thePnt1, const gp_Pnt & thePnt2, const gp_Pnt & thePnt3, Select3D_TypeOfSensitivity theSensType, const SelectMgr_ViewClipRange & theClipRange, SelectBasics_PickResult & thePickResult ) const

pure virtual

SAT intersection test between defined volume and given triangle. The test may be considered of interior part or boundary line defined by triangle vertices depending on given sensitivity type.

Implemented in SelectMgr_AxisIntersector, SelectMgr_RectangularFrustum, SelectMgr_TriangularFrustum, and SelectMgr_TriangularFrustumSet.

RayCircleIntersection()

virtual bool SelectMgr_BaseIntersector::RayCircleIntersection ( const double theRadius, const gp_Pnt & theLoc, const gp_Dir & theRayDir, const bool theIsFilled, double & theTime ) const

virtual

Checks whether the ray that starts at the point theLoc and directs with the direction theRayDir intersects with the circle.

Parameters

[in]	theRadius	the circle radius
[in]	theLoc	the location of the ray
[in]	theRayDir	the ray direction
[in]	theIsFilled	true if it's a circle, false if it's a circle outline
[out]	theTime	the intersection

RayCylinderIntersection()

virtual bool SelectMgr_BaseIntersector::RayCylinderIntersection ( const double theBottomRadius, const double theTopRadius, const double theHeight, const gp_Pnt & theLoc, const gp_Dir & theRayDir, const bool theIsHollow, double & theTimeEnter, double & theTimeLeave ) const

virtual

Checks whether the ray that starts at the point theLoc and directs with the direction theRayDir intersects with the hollow cylinder (or cone)

Parameters

[in]	theBottomRadius	the bottom cylinder radius
[in]	theTopRadius	the top cylinder radius
[in]	theHeight	the cylinder height
[in]	theLoc	the location of the ray
[in]	theRayDir	the ray direction
[in]	theIsHollow	true if the cylinder is hollow
[out]	theTimeEnter	the entering the intersection
[out]	theTimeLeave	the leaving the intersection

RaySphereIntersection()

virtual bool SelectMgr_BaseIntersector::RaySphereIntersection ( const gp_Pnt & theCenter, const double theRadius, const gp_Pnt & theLoc, const gp_Dir & theRayDir, double & theTimeEnter, double & theTimeLeave ) const

virtual

Checks whether the ray that starts at the point theLoc and directs with the direction theRayDir intersects with the sphere with center at theCenter and radius TheRadius.

ScaleAndTransform()

virtual occ::handle< SelectMgr_BaseIntersector > SelectMgr_BaseIntersector::ScaleAndTransform ( const int theScaleFactor, const gp_GTrsf & theTrsf, const occ::handle< SelectMgr_FrustumBuilder > & theBuilder ) const

pure virtual

Note that this method does not perform any checks on type of the frustum.

Parameters

[in]	theScaleFactor	scale factor for new intersector or negative value if undefined; IMPORTANT: scaling makes sense only for scalable IsScalable() intersectors (built on a single point)!
[in]	theTrsf	transformation for new intersector or gp_Identity if undefined
[in]	theBuilder	an optional argument that represents corresponding settings for re-constructing transformed frustum from scratch; could be NULL if reconstruction is not expected furthermore

Returns

a copy of the frustum resized according to the scale factor given and transforms it using the matrix given

Implemented in SelectMgr_TriangularFrustum, SelectMgr_TriangularFrustumSet, SelectMgr_AxisIntersector, and SelectMgr_RectangularFrustum.

SetCamera()

virtual void SelectMgr_BaseIntersector::SetCamera ( const occ::handle< Graphic3d_Camera > & theCamera )

virtual

Saves camera definition.

Reimplemented in SelectMgr_AxisIntersector, and SelectMgr_BaseFrustum.

SetPixelTolerance()

virtual void SelectMgr_BaseIntersector::SetPixelTolerance ( const int theTol )

virtual

Sets pixel tolerance. It makes sense only for scalable intersectors (built on a single point). This method does nothing for the base class.

Reimplemented in SelectMgr_BaseFrustum.

SetViewport()

virtual void SelectMgr_BaseIntersector::SetViewport ( const double theX, const double theY, const double theWidth, const double theHeight )

virtual

Sets viewport parameters. This method does nothing for the base class.

Reimplemented in SelectMgr_BaseFrustum.

SetWindowSize()

virtual void SelectMgr_BaseIntersector::SetWindowSize ( const int theWidth, const int theHeight )

virtual

Sets current window size. This method does nothing for the base class.

Reimplemented in SelectMgr_BaseFrustum.

WindowSize()

virtual void SelectMgr_BaseIntersector::WindowSize ( int & theWidth, int & theHeight ) const

virtual

Returns current window size. This method doesn't set any output values for the base class.

Reimplemented in SelectMgr_BaseFrustum.

Field Documentation

myCamera

occ::handle<Graphic3d_Camera> SelectMgr_BaseIntersector::myCamera

protected

camera definition (if builder isn't NULL it is the same as its camera)

mySelectionType

SelectMgr_SelectionType SelectMgr_BaseIntersector::mySelectionType

protected

type of selection

---

The documentation for this class was generated from the following file:

• SelectMgr_BaseIntersector.hxx
