The general form for a Select Member. A Select Member can, either define a value of a basic type (such as an integer) with an additional information : a name or list of names which precise the meaning of this value or be an alternate value in a select, which also accepts an entity (in this case, the name is not mandatory) More...

#include <StepData_SelectMember.hxx>

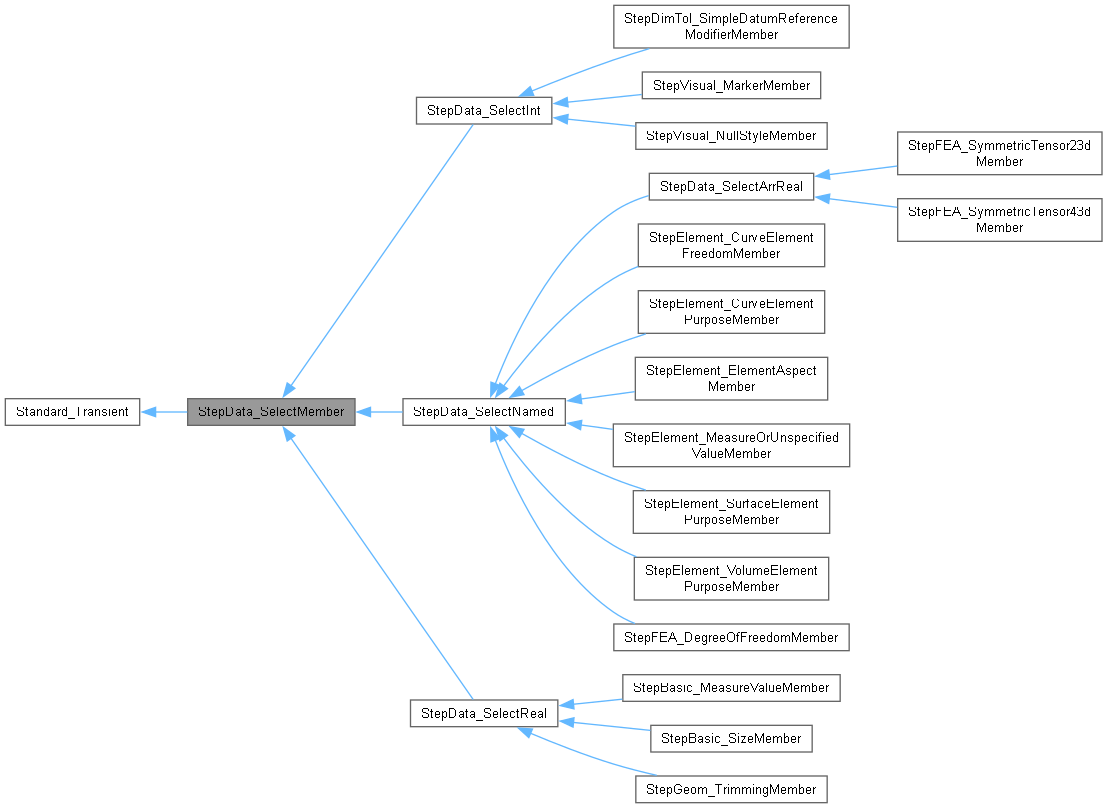

Inheritance diagram for StepData_SelectMember:

[legend]

Public Member Functions
	StepData_SelectMember ()

virtual Standard_Boolean	HasName () const
	Tells if a SelectMember has a name. Default is False.

virtual Standard_CString	Name () const
	Returns the name of a SelectMember. Default is empty.

virtual Standard_Boolean	SetName (const Standard_CString name)
	Sets the name of a SelectMember, returns True if done, False if no name is allowed Default does nothing and returns False.

virtual Standard_Boolean	Matches (const Standard_CString name) const
	Tells if the name of a SelectMember matches a given one By default, compares the strings, can be redefined (optimised)

virtual Standard_Integer	Kind () const

virtual void	SetKind (const Standard_Integer kind)

Interface_ParamType	ParamType () const
	Returns the Kind of the SelectMember, under the form of an enum ParamType.

virtual Standard_Integer	Int () const
	This internal method gives access to a value implemented by an Integer (to read it)

virtual void	SetInt (const Standard_Integer val)
	This internal method gives access to a value implemented by an Integer (to set it)

Standard_Integer	Integer () const
	Gets the value as an Integer.

void	SetInteger (const Standard_Integer val)

Standard_Boolean	Boolean () const

void	SetBoolean (const Standard_Boolean val)

StepData_Logical	Logical () const

void	SetLogical (const StepData_Logical val)

virtual Standard_Real	Real () const

virtual void	SetReal (const Standard_Real val)

virtual Standard_CString	String () const

virtual void	SetString (const Standard_CString val)

Standard_Integer	Enum () const

virtual Standard_CString	EnumText () const

void	SetEnum (const Standard_Integer val, const Standard_CString text="")

virtual void	SetEnumText (const Standard_Integer val, const Standard_CString text)

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.

Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.

Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.

virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.

static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

The general form for a Select Member. A Select Member can, either define a value of a basic type (such as an integer) with an additional information : a name or list of names which precise the meaning of this value or be an alternate value in a select, which also accepts an entity (in this case, the name is not mandatory)

Several sub-types of SelectMember are defined for integer and real value, plus an "universal" one for any, and one more to describe a select with several names

It is also possible to define a specific subtype by redefining virtual method, then give a better control

Remark : this class itself could be deferred, because at least one of its virtual methods must be redefined to be usable

Constructor & Destructor Documentation

◆ StepData_SelectMember()

StepData_SelectMember::StepData_SelectMember ( )

Member Function Documentation

◆ Boolean()

Standard_Boolean StepData_SelectMember::Boolean ( ) const

◆ Enum()

Standard_Integer StepData_SelectMember::Enum ( ) const

◆ EnumText()

virtual Standard_CString StepData_SelectMember::EnumText ( ) const

virtual

Reimplemented in StepDimTol_SimpleDatumReferenceModifierMember, StepVisual_MarkerMember, and StepVisual_NullStyleMember.

◆ HasName()

virtual Standard_Boolean StepData_SelectMember::HasName ( ) const

virtual

Tells if a SelectMember has a name. Default is False.

Reimplemented in StepBasic_MeasureValueMember, StepBasic_SizeMember, StepData_SelectNamed, StepDimTol_SimpleDatumReferenceModifierMember, StepElement_CurveElementFreedomMember, StepElement_CurveElementPurposeMember, StepElement_ElementAspectMember, StepElement_MeasureOrUnspecifiedValueMember, StepElement_SurfaceElementPurposeMember, StepElement_VolumeElementPurposeMember, StepFEA_DegreeOfFreedomMember, StepFEA_SymmetricTensor23dMember, StepFEA_SymmetricTensor43dMember, StepGeom_TrimmingMember, StepVisual_MarkerMember, and StepVisual_NullStyleMember.

◆ Int()

virtual Standard_Integer StepData_SelectMember::Int ( ) const

virtual

This internal method gives access to a value implemented by an Integer (to read it)

Reimplemented in StepData_SelectInt, and StepData_SelectNamed.

◆ Integer()

Standard_Integer StepData_SelectMember::Integer ( ) const

Gets the value as an Integer.

◆ Kind()

virtual Standard_Integer StepData_SelectMember::Kind ( ) const

virtual

Reimplemented in StepData_SelectArrReal, StepData_SelectInt, StepData_SelectNamed, StepData_SelectReal, StepDimTol_SimpleDatumReferenceModifierMember, and StepVisual_NullStyleMember.

◆ Logical()

StepData_Logical StepData_SelectMember::Logical ( ) const

◆ Matches()

virtual Standard_Boolean StepData_SelectMember::Matches ( const Standard_CString name ) const

virtual

Tells if the name of a SelectMember matches a given one By default, compares the strings, can be redefined (optimised)

Reimplemented in StepElement_CurveElementFreedomMember, StepElement_CurveElementPurposeMember, StepElement_ElementAspectMember, StepElement_MeasureOrUnspecifiedValueMember, StepElement_SurfaceElementPurposeMember, StepElement_VolumeElementPurposeMember, StepFEA_DegreeOfFreedomMember, StepFEA_SymmetricTensor23dMember, and StepFEA_SymmetricTensor43dMember.

◆ Name()

virtual Standard_CString StepData_SelectMember::Name ( ) const

virtual

Returns the name of a SelectMember. Default is empty.

Reimplemented in StepBasic_MeasureValueMember, StepBasic_SizeMember, StepData_SelectNamed, StepDimTol_SimpleDatumReferenceModifierMember, StepElement_CurveElementFreedomMember, StepElement_CurveElementPurposeMember, StepElement_ElementAspectMember, StepElement_MeasureOrUnspecifiedValueMember, StepElement_SurfaceElementPurposeMember, StepElement_VolumeElementPurposeMember, StepFEA_DegreeOfFreedomMember, StepFEA_SymmetricTensor23dMember, StepFEA_SymmetricTensor43dMember, StepGeom_TrimmingMember, StepVisual_MarkerMember, and StepVisual_NullStyleMember.

◆ ParamType()

Interface_ParamType StepData_SelectMember::ParamType ( ) const

Returns the Kind of the SelectMember, under the form of an enum ParamType.

◆ Real()

virtual Standard_Real StepData_SelectMember::Real ( ) const

virtual

Reimplemented in StepData_SelectNamed, and StepData_SelectReal.

◆ SetBoolean()

void StepData_SelectMember::SetBoolean ( const Standard_Boolean val )

◆ SetEnum()

void StepData_SelectMember::SetEnum	(	const Standard_Integer	val,
		const Standard_CString	text = "" )

◆ SetEnumText()

virtual void StepData_SelectMember::SetEnumText	(	const Standard_Integer	val,
		const Standard_CString	text )

virtual

Reimplemented in StepDimTol_SimpleDatumReferenceModifierMember, StepVisual_MarkerMember, and StepVisual_NullStyleMember.

◆ SetInt()

virtual void StepData_SelectMember::SetInt ( const Standard_Integer val )

virtual

This internal method gives access to a value implemented by an Integer (to set it)

Reimplemented in StepData_SelectInt, and StepData_SelectNamed.

◆ SetInteger()

void StepData_SelectMember::SetInteger ( const Standard_Integer val )

◆ SetKind()

virtual void StepData_SelectMember::SetKind ( const Standard_Integer kind )

virtual

Reimplemented in StepData_SelectInt, and StepData_SelectNamed.

◆ SetLogical()

void StepData_SelectMember::SetLogical ( const StepData_Logical val )

◆ SetName()

virtual Standard_Boolean StepData_SelectMember::SetName ( const Standard_CString name )

virtual

Sets the name of a SelectMember, returns True if done, False if no name is allowed Default does nothing and returns False.

Reimplemented in StepBasic_MeasureValueMember, StepBasic_SizeMember, StepData_SelectNamed, StepDimTol_SimpleDatumReferenceModifierMember, StepElement_CurveElementFreedomMember, StepElement_CurveElementPurposeMember, StepElement_ElementAspectMember, StepElement_MeasureOrUnspecifiedValueMember, StepElement_SurfaceElementPurposeMember, StepElement_VolumeElementPurposeMember, StepFEA_DegreeOfFreedomMember, StepFEA_SymmetricTensor23dMember, StepFEA_SymmetricTensor43dMember, StepGeom_TrimmingMember, StepVisual_MarkerMember, and StepVisual_NullStyleMember.

◆ SetReal()

virtual void StepData_SelectMember::SetReal ( const Standard_Real val )

virtual

Reimplemented in StepData_SelectNamed, and StepData_SelectReal.

◆ SetString()

virtual void StepData_SelectMember::SetString ( const Standard_CString val )

virtual

Reimplemented in StepData_SelectNamed.

◆ String()

virtual Standard_CString StepData_SelectMember::String ( ) const

virtual

Reimplemented in StepData_SelectNamed.

The documentation for this class was generated from the following file:

StepData_SelectMember.hxx
