BRepAlgoAPI_Cut::Build function is failed

Keito Okajima's picture
Keito Okajima
Thu, 07/14/2022 - 12:13
Forums:
Modeling Data and Algorithms

Hello, I want to get a model that eliminates shape2 from shape1. However, the following program returns an error. Does anyone know what the problem is?

[Code]

BRepAlgoAPI_Cut cut( shape1, shape2 );
cut.Build();
cut.isDone(); // <- Standard_False

[Environment]

Opencascade: V7.5.3
OS: Windows 10 Pro 64bit
CPU: Intel(R) Core(TM) i7-8550U
Memory: 16GB

Best regards.

Attachments:

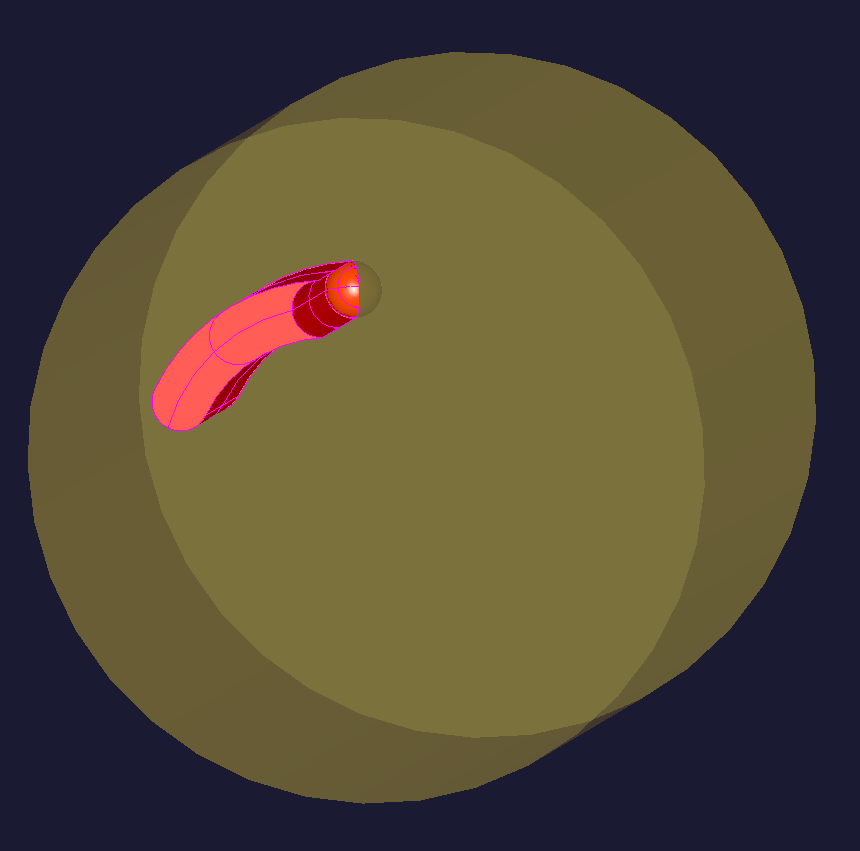

Image icon shape1_and_shape2.png
Binary Data shape1.brep
Binary Data shape2.brep
Thomas Anderson's picture
Thomas Anderson
Fri, 07/15/2022 - 15:56

shape2 is a compsolid and compsolids are not supported for boolean operations.
Users guide

Keito Okajima's picture
Keito Okajima
Tue, 07/19/2022 - 11:44

Hello Thomas.
Thanks for the information.
I was able to get the cut shape by breaking down the Compound shape into Solid.
