BRepOffset_MakeOffset API gives inaccurate result

asmita ulagadde's picture
asmita ulagadde
Tue, 10/18/2022 - 14:06
Forums:
Modeling Data and Algorithms

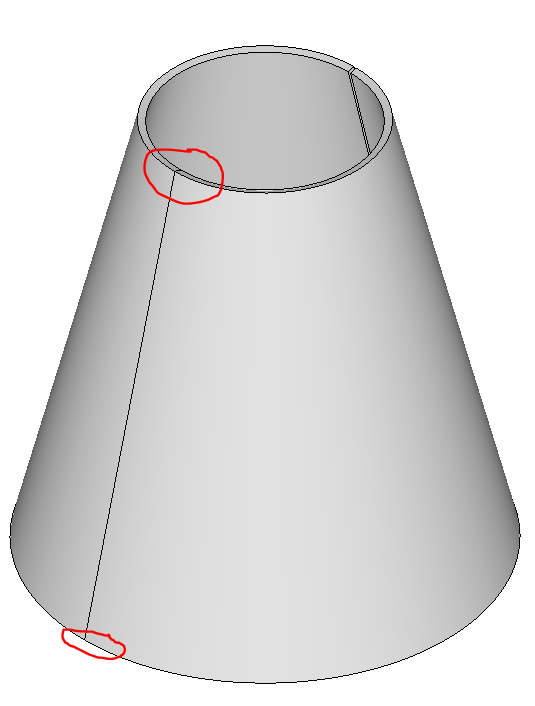

I am offsetting conical body using BRepOffset_MakeOffset API and getting inner and outer edges of the base and top of cone are not in line with each other.

BRepOffset_MakeOffset offsetShape = new BRepOffset_MakeOffset(solid, thickness,
Precision.Confusion(), OCC.BRepOffset.BRepOffset_Mode.BRepOffset_Skin,
false, true, OCC.GeomAbs.GeomAbs_JoinType.GeomAbs_Arc, true))

Please find attached document for reference.
Any lead?

Attachments:
Image icon ConeZoomView.PNG
Image icon simpleCone.PNG
Thomas Anderson's picture
Thomas Anderson
Tue, 10/18/2022 - 17:22

They are in line, but that line is normal to the face. That is how offsets work.
