Creating multiple XCAFDoc_DocumentTool in single TDocStd_Document

Hello,

It is possible. But I cannot guarantee that it will work successfully in all user cases.

XCAFDoc_DocumentTool - it is a just attribute. You can put it whenever you want. By default it put on first child of root. The code is opensource, that is why, you can see creation stage (XCAFDoc_DocumentTool::Set). We interested in method XCAFDoc_DocumentTool::DocLabel, that return created first child or find existed).

To put this attribute on 0:2 or other label (before it was only 0:1). You need to use the next code:

//=======================================================================
//function : SetDocumentTool
//purpose  :
//=======================================================================
Handle(XCAFDoc_DocumentTool) SetDocumentTool(const Handle(TDocStd_Document)& theDoc,
                                             const Standard_Integer theLevel = 1 /*0:1 in the graph*/)
{
  if (theDoc.IsNull() || theLevel < 1)
  {
    return NULL;
  }
  Handle(XCAFDoc_DocumentTool) anAttr;
  const TDF_Label aRootL = theDoc->Main().Root();
  TDF_Label aDocL = aRootL.FindChild(theLevel);
  if (!aDocL.FindAttribute (XCAFDoc_DocumentTool::GetID(), anAttr)) {
    anAttr = new XCAFDoc_DocumentTool;
    aDocL.AddAttribute(anAttr);
    anAttr->Init();
    // setting all nodes and sub labels what you want
  }
  return anAttr;
}

Unfortunatelly,  I think you will need to rework all XCAF tools to work with you code. But if you upgrade it, working with manylavel document attribute will be easy.

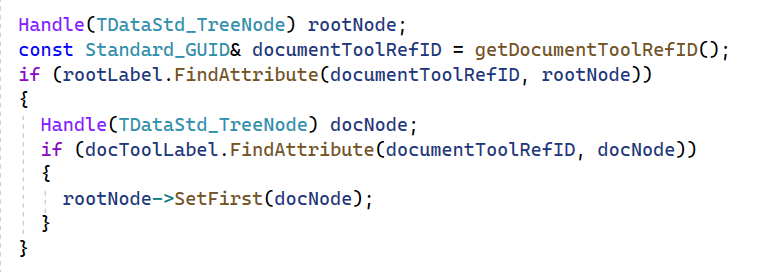

The other best way to configure working document tool - is refence on root. you can validate this reference externally. For example, you can create child 0:3 and create reference on it (document tool attribute will be created automatically). Then all tools and all alghoritms recognize 0:3 as a  valid document tool.

Code sample to create reference:

//=======================================================================
//function : Set
//purpose  :
//=======================================================================
Handle(XCAFDoc_DocumentTool) SetReferenceToWorkingDocTool(const Handle(TDocStd_Document)& theDoc,
                                                          const Standard_Integer theLevel = 1 /*0 in the graph*/)
{
  if (theDoc.IsNull() || theLevel < 1)
  {
    return NULL;
  }
  TDF_Label aRootL = theDoc->Main().Root();
  TDF_Label aDocL = aRootL.FindChild(theLevel);
  static Standard_GUID aDocumentToolRefID("efd212eb-6dfd-11d4-b9c8-0060b0ee281b");
  Handle(TDataStd_TreeNode) aRootNodeNew = TDataStd_TreeNode::Set(aRootL, aDocumentToolRefID);
  Handle(TDataStd_TreeNode) aLNode = TDataStd_TreeNode::Set(aDocL, aDocumentToolRefID);
  aLNode->SetFather(aRootNodeNew);
  aRootNodeNew->SetFirst(aLNode);
  return XCAFDoc_DocumentTool::Set(aDocL);
}

If you need more information, please let me know.

Best regards, Dmitrii.
