I get the Datum Objects using the following code:
...
cout << "***** Datum List *****" << endl;
TDF_LabelSequence datSeq;
dimTolTool->GetDatumLabels(datSeq);
for (Standard_Integer idx = datSeq.Lower(); idx < datSeq.Upper(); idx++) {
TDF_Label lab = datSeq.Value(idx);
Handle(XCAFDoc_Datum) dat;
if (lab.FindAttribute(XCAFDoc_Datum::GetID(), dat)) {
Handle(XCAFDimTolObjects_DatumObject) datObj = dat->GetObject();
...
}
}
...
The logic for getting the GeomTolerance Objects is pretty much the same. My problem is that I can't figure out a way to establish a link between those two. (Either by common reference or any other way). The guide on Open Cascade doesn't explain this and on the forums I haven't found a solution.

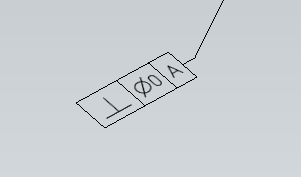

My goal is to group the Dimension, Datum and GeomTol Labels into the "blocks" they belong to according to the step file.
Please help!
