Import same step generated different shape, it looks like the shape is rotated. Compare with OCC6.8 VS OCC7.6

Jarod L
Tue, 03/08/2022 - 22:12

Forums:

check the step model in the SPUJ190900.7z
Check in other cad softwares, they show the same result as in 6.8, Is it a regression issue?

Attachments:

SPUJ190900.7z

Jarod L
Tue, 03/08/2022 - 22:13

Attachments:

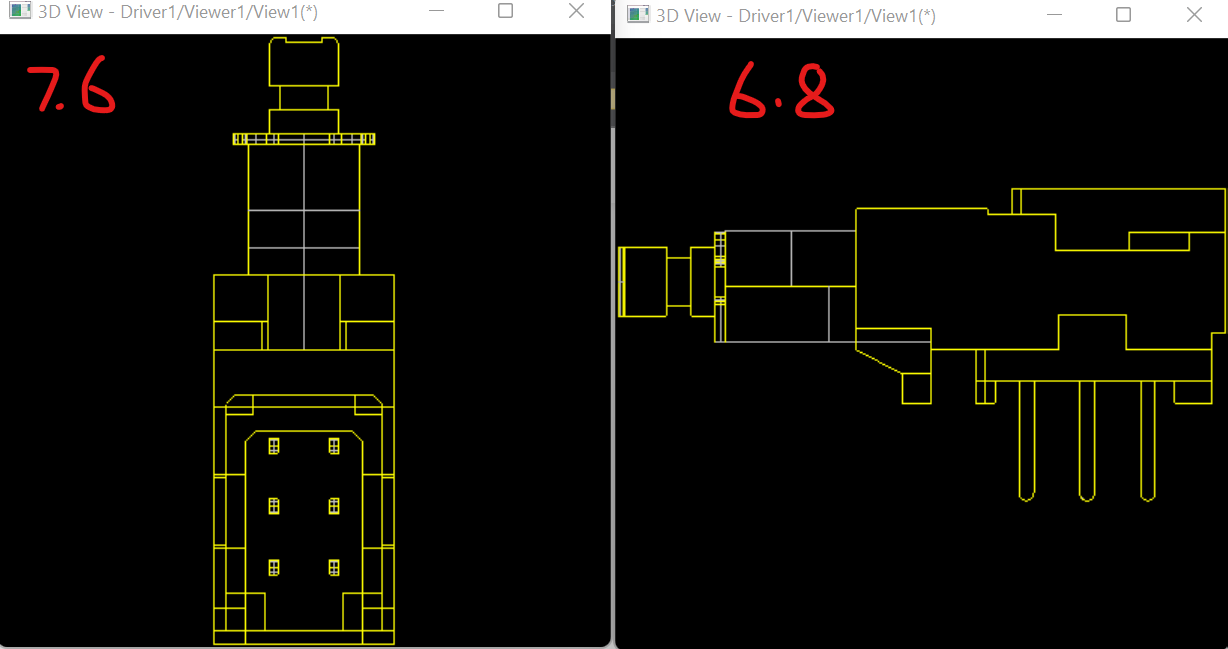

Screenshot 2022-03-08 111148.png

Kirill Gavrilov
Tue, 03/08/2022 - 22:58

This behavior change in STEP translator is related to processing of transformation assigned to a root element. The old behavior could be requested via "read.step.root.transformation" parameter:

pload XDE VISUALIZATION
param read.step.root.transformation 0
ReadStep D SPUJ190900.step
vinit View1
XDisplay D -dispMode 1
vtop
vfit

Jarod L
Wed, 03/09/2022 - 00:38

Thanks for the quick reply. I got the same result after I set read.step.root.transformation to 1 in occ7.5, in Occ7.6 you should set to 0
BTW, that parameter is not in the documentation.

J.W.Kim
Tue, 03/15/2022 - 13:08

How to change the "read.step.root.transformation" parameter?

Jarod L
Wed, 03/16/2022 - 04:36

Interface_Static::SetIVal("read.step.root.transformation", 1);

J.W.Kim
Wed, 03/16/2022 - 04:54

Thank you!!! ^^
