The question is:

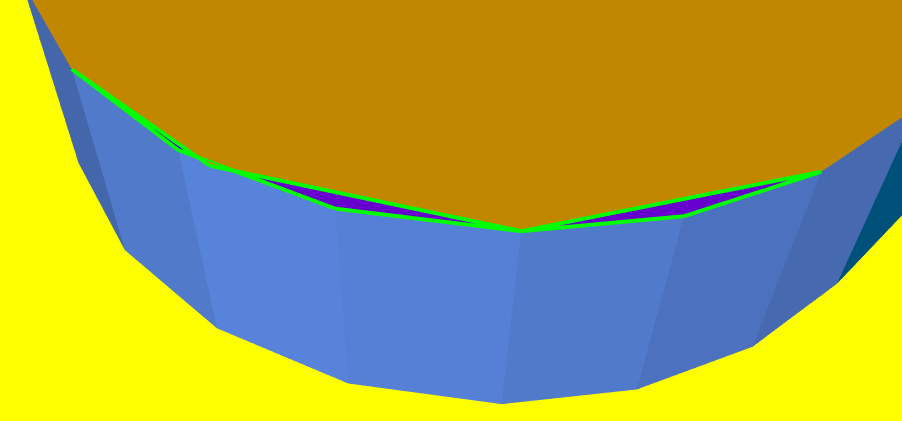

When I translate stp file to igs format, the intersection between planar face and curved face becomes disconnected. There are free bounds appear using ShapeAnalysis_FreeBounds to detect them.
But I didn't find functions to heal these free bounds. Is there any solution can do this in Opencascade? Thanks in advance.
Attachments:
Wed, 10/12/2022 - 12:08
Use BRepBuilderAPI_Sewing.
Thu, 10/13/2022 - 04:48
Thank you for the reply.
These free bounds are self-intersect wires. They cannot be constructed into face. I am not sure how this class can clear those free bounds.
