Thu, 05/14/2015 - 06:46
Hello All,
I saw this issues.(Slow performance with many primitive shapes).
But I have more serious problem.
points count of each solid : 1000 more.
solid count in one window : 1500 more.
This is my source code.
-----
double tolerance = 0.00001;
Standard_Boolean isSolid = Standard_True;
Standard_Boolean isRuled = Standard_True;
BRepOffsetAPI_ThruSections TS(isSolid, isRuled, tolerance);
std::vector<:vector>> pPointList;
pPointList.clear();
SetPointList(theFileName, &pPointList);
int nLCount = pPointList.size();
std::vector
for ( int nR = 0 ; nR
{
for ( int nC = 0 ; nC
{
for ( int nIndex = 0 ; nIndex
{
pEachPoints = pPointList[nIndex];
BRepBuilderAPI_MakeWire AA;
for ( int nPIndex = 0 ; nPIndex
{
TopoDS_Edge E = BRepBuilderAPI_MakeEdge( pEachPoints[nPIndex], pEachPoints[nPIndex+1] );
AA.Add(E);
}
TopoDS_Wire W = AA;
TS.AddWire(W);
}
TS.Build();
TopoDS_Shape aShape = TS.Shape();
aShape.Closed(true);
if (( nR == 150 ) && ( nC == 10 ))
myAISContext()->Display(new AIS_Shape(aShape), true);
else
myAISContext()->Display(new AIS_Shape(aShape), false);
}
}
myAISContext()->UpdateCurrentViewer();
-----
This need very long times for visualization.
How can I do to solve this problem??
Thanks,
Have a good day..
Thu, 05/14/2015 - 07:00
Hello All.

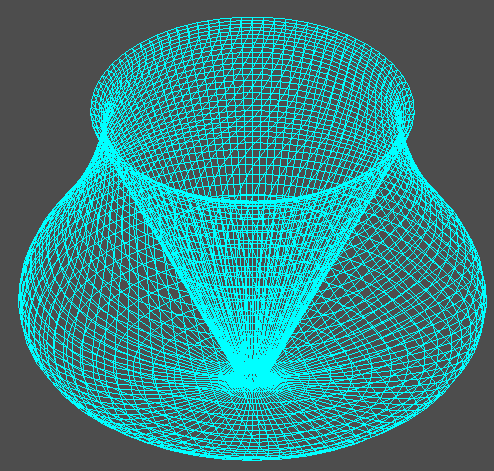

I add my feature about solid.
