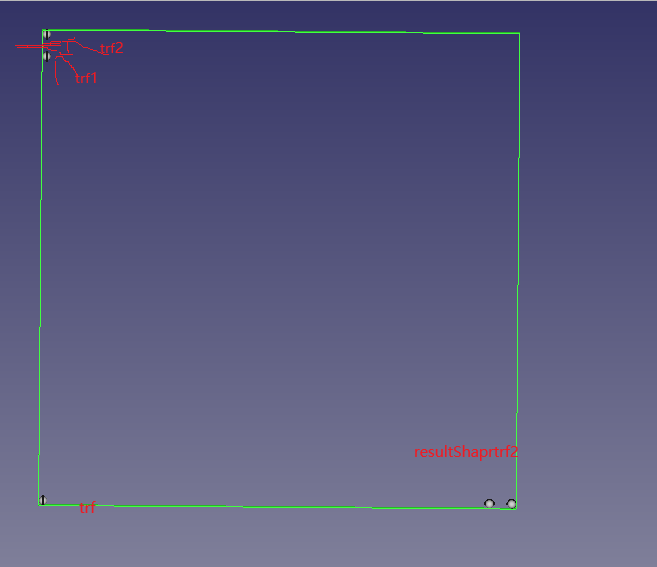

why the object is not rotating around its own axis. resultShapetrf2 should be positioned between trf1 and trf2.

int main()
{

BRepPrimAPI_MakeSphere shpherMaker1( 10.0 );
TopoDS_Shape shpere = shpherMaker1.Shape();

BRepPrimAPI_MakeSphere shpherMaker1( 10.0 );
TopoDS_Shape shpere1 = shpherMaker1.Shape();

BRepPrimAPI_MakeSphere shpherMaker2( 10.0 );
TopoDS_Shape shpere2 = shpherMaker2.Shape();

gp_Trsf transform;
transform.SetValues( 0 , 1 , 0 , 0 , 0 , 0 , 1 , 0 , 1, 0 , 0 , 0 );
BRepBuilderAPI_Transform trf( sphere , transform );

gp_Trsf transform1;
// transform1.SetValues( 1 , 0 , 0 , 0 , 0 , 1,0 , 1000 , 0 , 0, 1, 0 );
transform1.SetValues( 0 , 1 , 0 , 0 , 0 , 0 , 1 , 1000 , 1 , 0 , 0 , 0 );
BRepBuilderAPI_Transform trf1( shpere1 , transform1 );

gp_Trsf transform2;
transform2.SetValues( 0 , 1 , 0 , 0 , 0 , 0 , 1 , 1050 , 1 , 0 , 0 , 0 );
BRepBuilderAPI_Transform trf2( shpere2 , transform2 );

BRepAlgoAPI_Fuse booleanOperation( trf1.Shape() , trf2.Shape() );
TopoDS_Shape resultShape = booleanOperation.Shape();
gp_Trsf transform3;
transform3.SetValues( 0 , 1 , 0 , 0 , 0 , 0 , 1 , 0 , 1 , 0 , 0 , 0 );
BRepBuilderAPI_Transform resultShapetrf2( resultShape , transform3 );

TopoDS_Compound compound;
BRep_Builder builder;
builder.MakeCompound( compound );
builder.Add( compound , trf );
builder.Add( compound , trf1 );
builder.Add( compound , trf2 );
builder.Add( compound , resultShapetrf2 );
BRepTools::Write( compound , "d:/ddddddddddddddddd.brep" );

}

Dmitrii Pasukhin's picture

Hello,

Your matrix looks invalid. there zero scaling. And something wrong with elements on matrix. Please check the transform matrix representation on OCCT.

//!    V1   V2   V3    T       XYZ        XYZ
//! | a11  a12  a13   a14 |   | x |      | x'|
//! | a21  a22  a23   a24 |   | y |      | y'|
//! | a31  a32  a33   a34 |   | z |   =  | z'|
//! |  0    0    0     1  |   | 1 |      | 1 |

Diagonal elements - scaling.

Best regards, Dmitrii.
