Disable Shading

Semih Ufuk Güler's picture
Semih Ufuk Güler
Tue, 05/11/2021 - 11:32
Forums:
Visualization and 3D Viewer

Hello I was wondering what is the path for displaying with no shading just original color ?

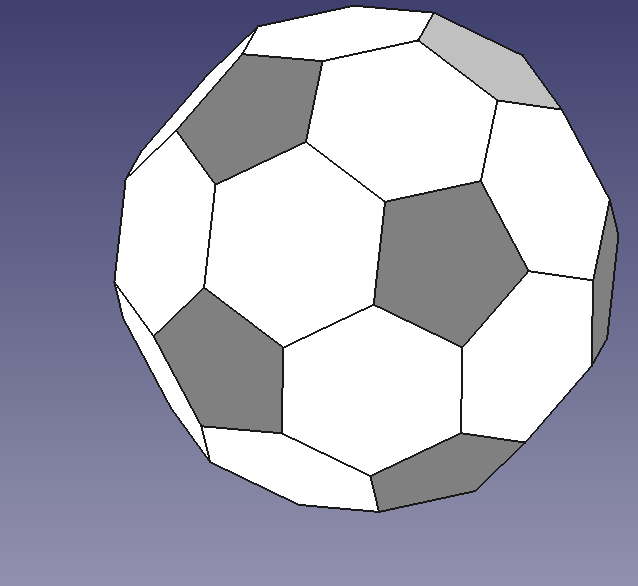

Like in the shape in atachment.

Attachments:
Image icon Screenshot from 2021-05-11 11-30-44.png
Kirill Gavrilov's picture
Kirill Gavrilov
Tue, 05/11/2021 - 14:00

This is called an "unlit" shading model Graphic3d_TOSM_UNLIT, which can be set via Graphic3d_Aspects::SetShadingModel() property. Here is a sample Draw Harness script:

pload MODELING VISUALIZATION
psphere s 1
vinit View1
vdisplay -dispMode 1 s
vfit
vaspects s -shadingModel UNLIT -color RED
