Graphic3d_MaterialAspect - How to change ambient, diffuse, specular

Helllo forum

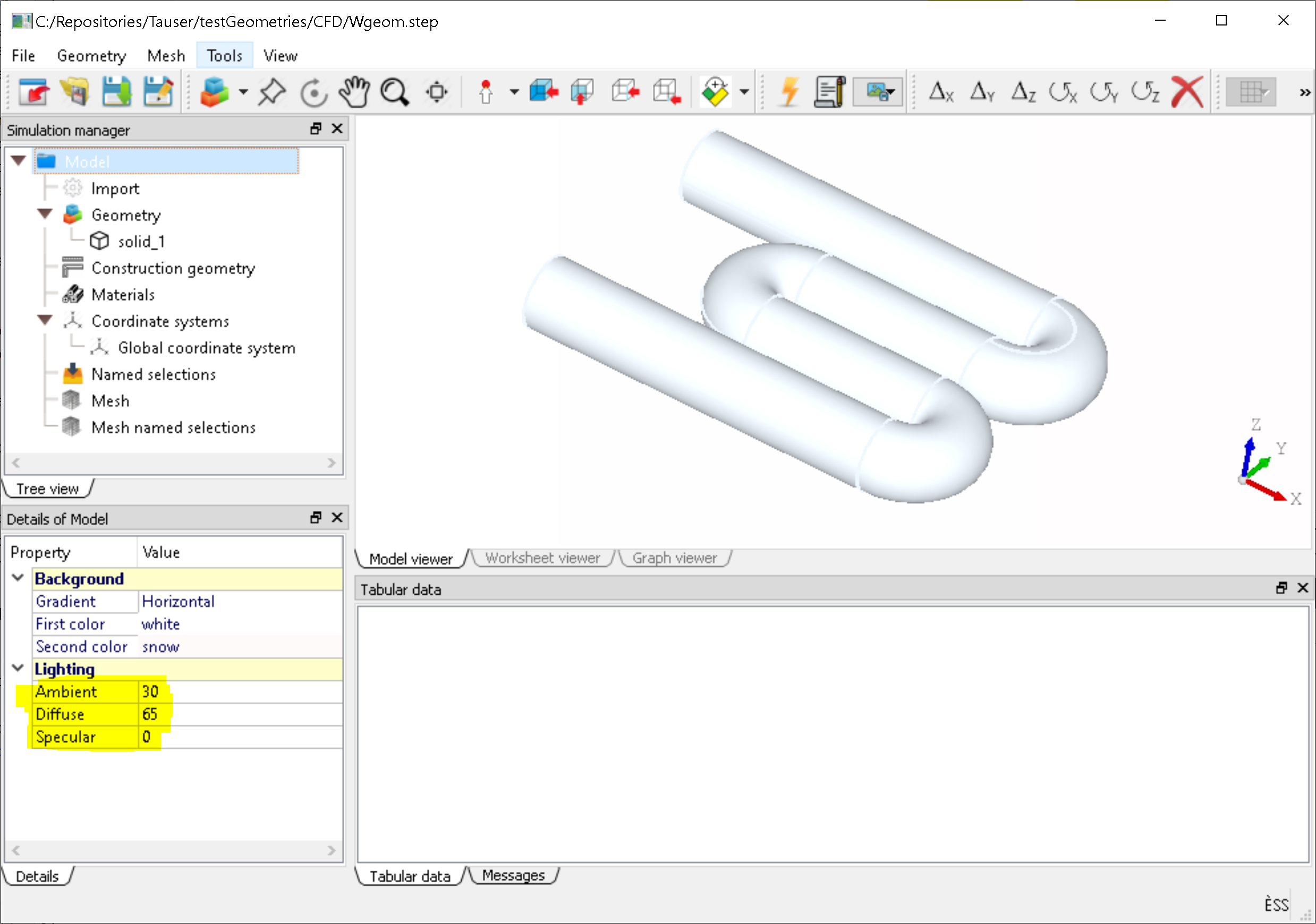

I have a Qt 3D viewer, based on the Open Cascade Kernel: see Picture 1.
I highlighted three lighting properties: ambient, diffuse, specular, that are
passed as float values [0,1] to the opencascade widget, set as qt central widget
of the QMainWindow

In using OCC7.3.0 I use this code, which iterates over all the AIS shapes loaded into
the context, changing the three coefficients for each shape, one by one.
This did what I expected correctly (

AIS_ListOfInteractive l;
occContext->ObjectsInside(l,AIS_KOI_Shape,CUSTOM_SIGNATURE_EXTENDED_SHAPE);
for(AIS_ListIteratorOfListOfInteractive it(l); it.More(); it.Next())
{
Graphic3d_NameOfMaterial materialName = it.Value()->Material();
Graphic3d_MaterialAspect materialAspect(materialName);
materialAspect.SetAmbient(ambient);
materialAspect.SetDiffuse(diffuse);
materialAspect.SetSpecular(specular);
es->SetMaterial(materialAspect);
}
occContext->UpdateCurrentViewer();
}

Now I've updated the code to 7.6.0, in which Graphic3d_MaterialAspect::setAmbient(float),
Graphic3d_MaterialAspect::setDiffuse(float), Graphic3d_MaterialAspect::setSpecular(float)
have been removed.

Question: how to translate the working code used in 7.3.0, into a workinig code for 7.6.0?

Further details:

Documentation says (from 7.4.0)

"Replace Graphic3d_MaterialAspect::Ambient(), SetAmbient(), Diffuse(), SetDiffuse(),
Specular(), SetSpecular(), Emissive(), SetEmissive()
with methods working with pre-multiplied color.
E.g. theMaterial.SetAmbientColor(Graphic3d_Vec3 (1.0f, 0.0f, 0.0f) * 0.2f)"

but from the header file of Graphic3d_MaterialAspect I read

//! Modifies the ambient color of the surface.
Standard_EXPORT void SetAmbientColor (const Quantity_Color& theColor);

that is Quantity_Color must be used as function argument.
So I tried, for 7.6.0, and for each shape loaded into the context:

const occHandle(AIS_ExtendedShape)& es = occHandle(AIS_ExtendedShape)::DownCast(it.Value());
Quantity_Color shapeColor;
es->Color(shapeColor);
float r = shapeColor.Red();
float g = shapeColor.Green();
float b = shapeColor.Blue();
Quantity_Color ac(ambient*r,ambient*g,ambient*b,Quantity_TOC_RGB);
Quantity_Color dc(diffuse*r,diffuse*g,diffuse*b,Quantity_TOC_RGB);
Quantity_Color sc(specular*r,specular*g,specular*b,Quantity_TOC_RGB);
materialAspect.SetAmbientColor(ac);
materialAspect.SetDiffuseColor(dc);
materialAspect.SetSpecularColor(sc);

which compiles, but does not the work of changing the specular, reflection, and diffuse
properties of the scene.

Grazie mille
Giovanni

Attachments:
gkv311 n's picture

Legacy properties Graphic3d_MaterialAspect::Ambient() / Diffuse() / Specular haven't been applied to a color - they were coefficients to Graphic3d_MaterialAspect::AmbientColor() / DiffuseColor() / SpecularColor(). So you need to weed out the actual material properties (which depend on original material definition) to preserve behavior. Legacy math:

FinalDiffuse = DiffuseColor() * Diffuse();

new math:

FinalDiffuse = DiffuseColor();

In general, I would suggest to avoid trying to preserve exact math from legacy code, but rather trying to preserve the intent and simplify math where possible.

Giovanni Bettega's picture

Thanks you very much.
It helped
Giovanni
