Locate an AIS_Trihedron at the origin that given with gp_Pnt

Nezihe Sözen
Wed, 04/27/2022 - 00:17

Forums:

Dear OCCT Community,

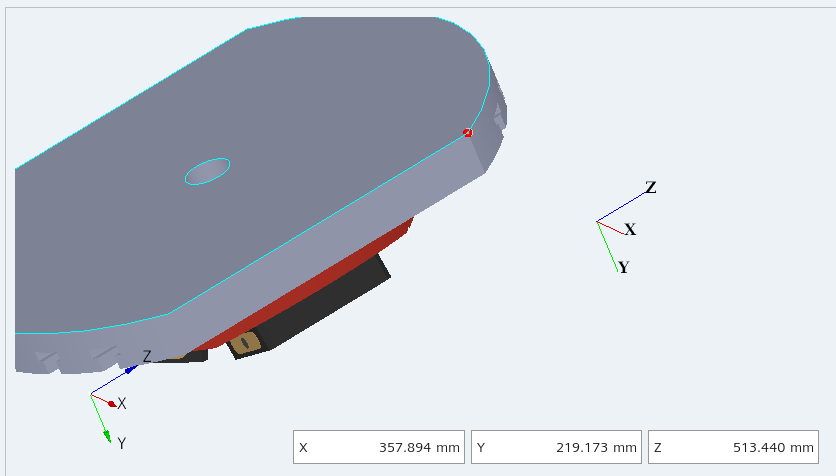

I have added a sphere to a vertex I have chosen in the scene and I am trying to locate an AIS_Trihedron at the origin of this sphere. The direction information is correct, but its position is far from where I set it and it is drawn. I've added the image about this issue and I am sharing my method below:

void VisualizerWidget::createTrihedronWithOriginPoint(TopoDS_Shape ais_shape, gp_Pnt origin_xyz)
{
    gp_Ax2 Position;
    Position.SetLocation(origin_xyz);

    Handle_Geom_Axis2Placement axis = new Geom_Axis2Placement(Position);
    Handle_AIS_Trihedron aisTrihedron = new AIS_Trihedron(axis);

    aisTrihedron->SetDatumDisplayMode(Prs3d_DM_WireFrame);
    aisTrihedron->SetDrawArrows(true);
    aisTrihedron->Attributes()->DatumAspect()->LineAspect(Prs3d_DP_XAxis)->SetWidth(2.5);
    aisTrihedron->Attributes()->DatumAspect()->LineAspect(Prs3d_DP_YAxis)->SetWidth(2.5);
    aisTrihedron->Attributes()->DatumAspect()->LineAspect(Prs3d_DP_ZAxis)->SetWidth(2.5);
    aisTrihedron->SetDatumPartColor(Prs3d_DP_XAxis, Quantity_NOC_RED2);
    aisTrihedron->SetDatumPartColor(Prs3d_DP_YAxis, Quantity_NOC_GREEN2);
    aisTrihedron->SetDatumPartColor(Prs3d_DP_ZAxis, Quantity_NOC_BLUE2);
    aisTrihedron->SetLabel(Prs3d_DP_XAxis, "X");
    aisTrihedron->SetLabel(Prs3d_DP_YAxis, "Y");
    aisTrihedron->SetLabel(Prs3d_DP_ZAxis, "Z");
    aisTrihedron->SetTextColor(Quantity_NOC_BLACK);
    aisTrihedron->SetSize(60);
    aisTrihedron->SetTransformPersistence(
                new Graphic3d_TransformPers(Graphic3d_TMF_ZoomPers, axis->Ax2().Location()));
    aisTrihedron->Attributes()->SetZLayer(Graphic3d_ZLayerId_Topmost);
    aisTrihedron->SetInfiniteState(true);

    ais_interactive_context_->Display(aisTrihedron, true);
}

I haven't figured out where I went wrong yet. If you have any suggestions for a solution about this issue, I'm looking forward to hearing. Thank you in advance!

Kirill Gavrilov
Wed, 04/27/2022 - 08:36

aisTrihedron->SetTransformPersistence(
new Graphic3d_TransformPers(Graphic3d_TMF_ZoomPers, axis->Ax2().Location()));

Check the documentation of Graphic3d_TransformPers. It requires an extra caution when it comes to location. So that if you want to use Graphic3d_TMF_ZoomPers, you need defining object's origin as identity and pass this point to Graphic3d_TransformPers.

Nezihe Sözen
Sun, 05/15/2022 - 22:37

Thank you very much for your reply to my question. Thanks to your blog, I am now able to change the location of the AIS_Trihedron. However, I couldn't change its rotation, I'm probably missing a point again.

Normally, if I would like to change a TopoDS_Shape, I use below implementation (and it works correctly):

TopoDS_Shape OCCTWidget::setRotation(int a, int b, int c, TopoDS_Shape shape)
{
    gp_Trsf trsf;

    trsf.SetRotation(gp::OX(), a * (M_PI/180));
    BRepBuilderAPI_Transform xform1(shape, trsf);
    shape = xform1.Shape();

    trsf.SetRotation(gp::OY(), b * (M_PI/180));
    BRepBuilderAPI_Transform xform2(shape, trsf);
    shape = xform2.Shape();

    trsf.SetRotation(gp::OZ(), c * (M_PI/180));
    BRepBuilderAPI_Transform xform3(shape, trsf);
    shape = xform3.Shape();

    return shape;

}

But if I would like to rotate the AIS_Trihedron, I am not able to rotate it. How can I change the rotation of AIS_Trihedron? Or how can I convert/transform the AIS_Trihedron to TopoDS_Shape? Like below implementations, is it possible convert AIS_Trihedron to TopoDS_Shape?

Example 1: TopoDS_Shape topods_sphere_shape = BRepPrimAPI_MakeSphere(origin_xyz, sphere_radius).Shape();

Example 2:TopoDS_Shape topods_box_shape= BRepPrimAPI_MakeBox(10, 20, 30).Shape();

Best regards and thank you!

Nezihe Sözen
Sun, 05/15/2022 - 23:34

Hello again, Please ignore the previous message I wrote, because there are many logic errors there. If I had set setDirection like I set setLocation I could see the rotation of AIS_Trihedron changed and now I've managed to do this.

gp_Ax2 Position;
Position.SetLocation(origin_xyz);
Position.SetDirection(gp_Dir(rotation_Ox,rotation_Oy, rotation_Oz));

My aim was to change the main AIS_Trihedron of the Scene only with mouse movements or with AIS_ViewCube; while the AIS_Trihedron above the selected vertex I was able to move independently of the main AIS_Trihedron of the scene. Anyway, my problem and question have been solved.

Thank you again for all your support...

tungyen
Fri, 04/28/2023 - 05:42

Hello, I am now using the Qt creator to do my project with the OPENCASCADE. However, when I use the code "#include <Handle_Geom_Axis2Placement.hxx>", I got the error that this file is not found. I installed and compiled opencascade with VTK in the latest version. Why I got this problem?

Dmitrii Pasukhin
Fri, 04/28/2023 - 09:42

Hello,

Handle_* are artifact classes. They are exist just to use old way to work with OCC smart pointers.

Please ignore Handle_ part. Make #include <Geom_Axis2Placement.hxx>

When you would like to create a new object of this class, use Handle(Geom_Axis2Placement) anAxis2P = new Geom_Axis2Placement();

Best regards, Dmitrii.

tungyen
Tue, 05/02/2023 - 08:37

Thank you for your response. I changed and it work. However, now I encountered another problem. When I included the header file <AIS_Drawer.hxx>, there is also an error saying the file does not exist. How can I solve this problem?
