The abstract class AxisPlacement describes the common behavior of positioning systems in 3D space, such as axis or coordinate systems. The Geom package provides two implementations of 3D positioning systems: More...

#include <Geom_AxisPlacement.hxx>

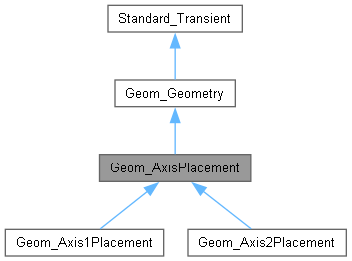

Inheritance diagram for Geom_AxisPlacement:

[legend]

Public Member Functions
void	SetAxis (const gp_Ax1 &A1)
	Assigns A1 as the "main Axis" of this positioning system. This modifies.

virtual void	SetDirection (const gp_Dir &V)=0
	Changes the direction of the axis placement. If <me> is an axis placement two axis the main "Direction" is modified and the "XDirection" and "YDirection" are recomputed. Raises ConstructionError only for an axis placement two axis if V and the previous "XDirection" are parallel because it is not possible to calculate the new "XDirection" and the new "YDirection".

void	SetLocation (const gp_Pnt &P)
	Assigns the point P as the origin of this positioning system.

Standard_Real	Angle (const Handle< Geom_AxisPlacement > &Other) const
	Computes the angular value, in radians, between the "main Direction" of this positioning system and that of positioning system Other. The result is a value between 0 and Pi.

const gp_Ax1 &	Axis () const
	Returns the main axis of the axis placement. For an "Axis2placement" it is the main axis (Location, Direction ). For an "Axis1Placement" this method returns a copy of <me>.

gp_Dir	Direction () const
	Returns the main "Direction" of an axis placement.

gp_Pnt	Location () const
	Returns the Location point (origin) of the axis placement.

Public Member Functions inherited from Geom_Geometry
void	Mirror (const gp_Pnt &P)
	Performs the symmetrical transformation of a Geometry with respect to the point P which is the center of the symmetry.

void	Mirror (const gp_Ax1 &A1)
	Performs the symmetrical transformation of a Geometry with respect to an axis placement which is the axis of the symmetry.

void	Mirror (const gp_Ax2 &A2)
	Performs the symmetrical transformation of a Geometry with respect to a plane. The axis placement A2 locates the plane of the symmetry : (Location, XDirection, YDirection).

void	Rotate (const gp_Ax1 &A1, const Standard_Real Ang)
	Rotates a Geometry. A1 is the axis of the rotation. Ang is the angular value of the rotation in radians.

void	Scale (const gp_Pnt &P, const Standard_Real S)
	Scales a Geometry. S is the scaling value.

void	Translate (const gp_Vec &V)
	Translates a Geometry. V is the vector of the translation.

void	Translate (const gp_Pnt &P1, const gp_Pnt &P2)
	Translates a Geometry from the point P1 to the point P2.

virtual void	Transform (const gp_Trsf &T)=0
	Transformation of a geometric object. This transformation can be a translation, a rotation, a symmetry, a scaling or a complex transformation obtained by combination of the previous elementaries transformations. (see class Transformation of the package Geom).

Handle< Geom_Geometry >	Mirrored (const gp_Pnt &P) const

Handle< Geom_Geometry >	Mirrored (const gp_Ax1 &A1) const

Handle< Geom_Geometry >	Mirrored (const gp_Ax2 &A2) const

Handle< Geom_Geometry >	Rotated (const gp_Ax1 &A1, const Standard_Real Ang) const

Handle< Geom_Geometry >	Scaled (const gp_Pnt &P, const Standard_Real S) const

Handle< Geom_Geometry >	Transformed (const gp_Trsf &T) const

Handle< Geom_Geometry >	Translated (const gp_Vec &V) const

Handle< Geom_Geometry >	Translated (const gp_Pnt &P1, const gp_Pnt &P2) const

virtual Handle< Geom_Geometry >	Copy () const =0
	Creates a new object which is a copy of this geometric object.

virtual void	DumpJson (Standard_OStream &theOStream, Standard_Integer theDepth=-1) const
	Dumps the content of me into the stream.

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.

Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.

Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.

virtual void	Delete () const
	Memory deallocator for transient classes.

Protected Attributes
gp_Ax1	axis

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.

static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

The abstract class AxisPlacement describes the common behavior of positioning systems in 3D space, such as axis or coordinate systems. The Geom package provides two implementations of 3D positioning systems:

the axis (Geom_Axis1Placement class), which is defined by:
its origin, also termed the "Location point" of the axis,
its unit vector, termed the "Direction" or "main Direction" of the axis;
the right-handed coordinate system (Geom_Axis2Placement class), which is defined by:
its origin, also termed the "Location point" of the coordinate system,
three orthogonal unit vectors, termed respectively the "X Direction", the "Y Direction" and the "Direction" of the coordinate system. As the coordinate system is right-handed, these unit vectors have the following relation: "Direction" = "X Direction" ^ "Y Direction". The "Direction" is also called the "main Direction" because, when the unit vector is modified, the "X Direction" and "Y Direction" are recomputed, whereas when the "X Direction" or "Y Direction" is modified, the "main Direction" does not change. The axis whose origin is the origin of the positioning system and whose unit vector is its "main Direction" is also called the "Axis" or "main Axis" of the positioning system.

Member Function Documentation

◆ Angle()

Standard_Real Geom_AxisPlacement::Angle ( const Handle< Geom_AxisPlacement > & Other ) const

Computes the angular value, in radians, between the "main Direction" of this positioning system and that of positioning system Other. The result is a value between 0 and Pi.

◆ Axis()

const gp_Ax1 & Geom_AxisPlacement::Axis ( ) const

Returns the main axis of the axis placement. For an "Axis2placement" it is the main axis (Location, Direction ). For an "Axis1Placement" this method returns a copy of <me>.

◆ Direction()

gp_Dir Geom_AxisPlacement::Direction ( ) const

Returns the main "Direction" of an axis placement.

◆ Location()

gp_Pnt Geom_AxisPlacement::Location ( ) const

Returns the Location point (origin) of the axis placement.

◆ SetAxis()

void Geom_AxisPlacement::SetAxis ( const gp_Ax1 & A1 )

Assigns A1 as the "main Axis" of this positioning system. This modifies.

its origin, and
its "main Direction". If this positioning system is a Geom_Axis2Placement, then its "X Direction" and "Y Direction" are recomputed. Exceptions For a Geom_Axis2Placement: Standard_ConstructionError if A1 and the previous "X Direction" of the coordinate system are parallel.

◆ SetDirection()

virtual void Geom_AxisPlacement::SetDirection ( const gp_Dir & V )

pure virtual

Changes the direction of the axis placement. If <me> is an axis placement two axis the main "Direction" is modified and the "XDirection" and "YDirection" are recomputed. Raises ConstructionError only for an axis placement two axis if V and the previous "XDirection" are parallel because it is not possible to calculate the new "XDirection" and the new "YDirection".

Implemented in Geom_Axis1Placement, and Geom_Axis2Placement.

◆ SetLocation()

void Geom_AxisPlacement::SetLocation ( const gp_Pnt & P )

Assigns the point P as the origin of this positioning system.

Field Documentation

◆ axis

gp_Ax1 Geom_AxisPlacement::axis

protected

The documentation for this class was generated from the following file:

Geom_AxisPlacement.hxx
